PRA-GLB-40-3000 PRA-GLB Profile for side guides

PRA-GLB-40-3000

PRA-GLB Profile for side guides

for GLB, stainless steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of PRA-GLB

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
419181
L
3000
2020

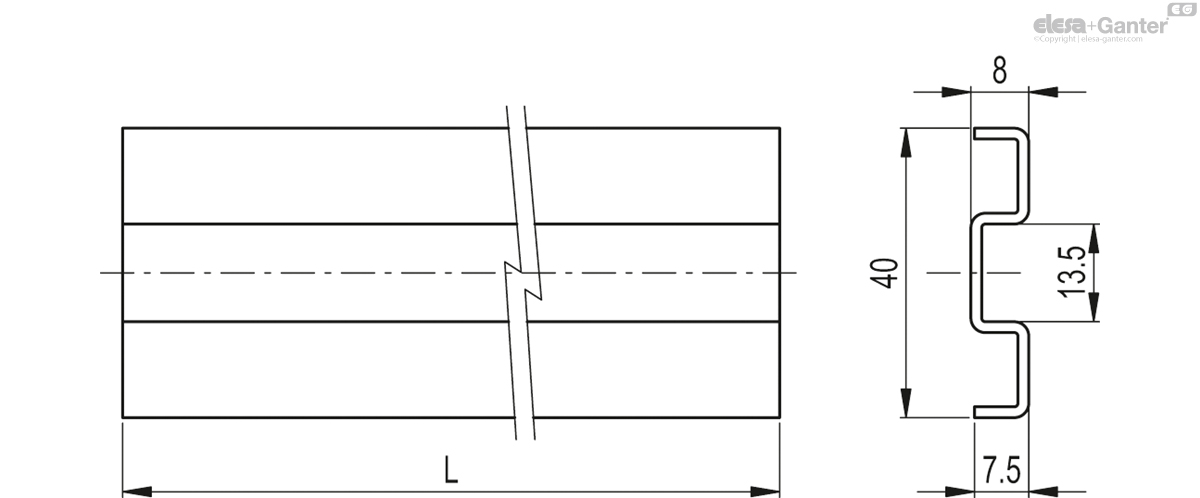

PRA-GLB-40-3000 drawing
PRA-GLB-40-3000 drawing
PRA-GLB-40-3000 drawing

Material

AISI 304 stainless steel.

Features and applications

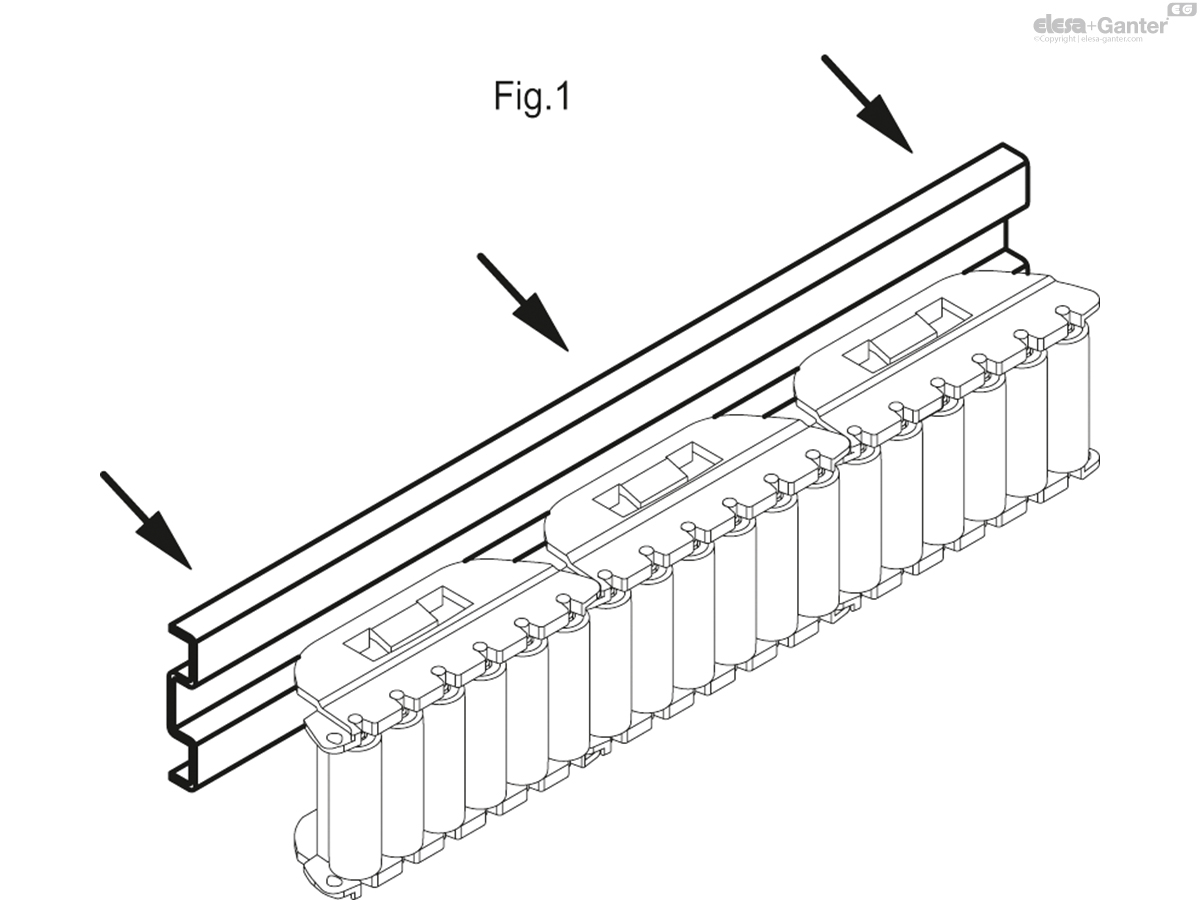

PRA-GLB profile is used for GLB-1 and GLB-2 side guides assembly (Fig.1).

Supplied in bars not drilled of 1500 or 3000 mm length, to allow the drilling during the assembly.




Accessories on request

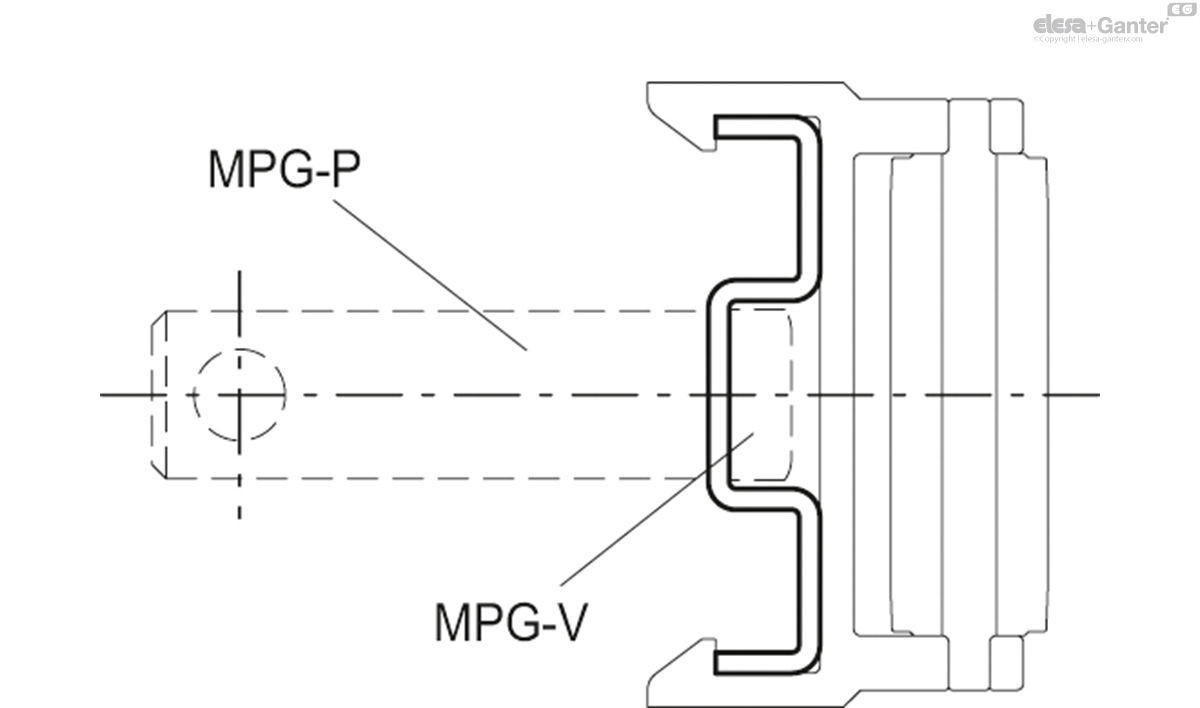

  • MPG-V: zinc-plated steel hammer head screw.
