TGL-24-48

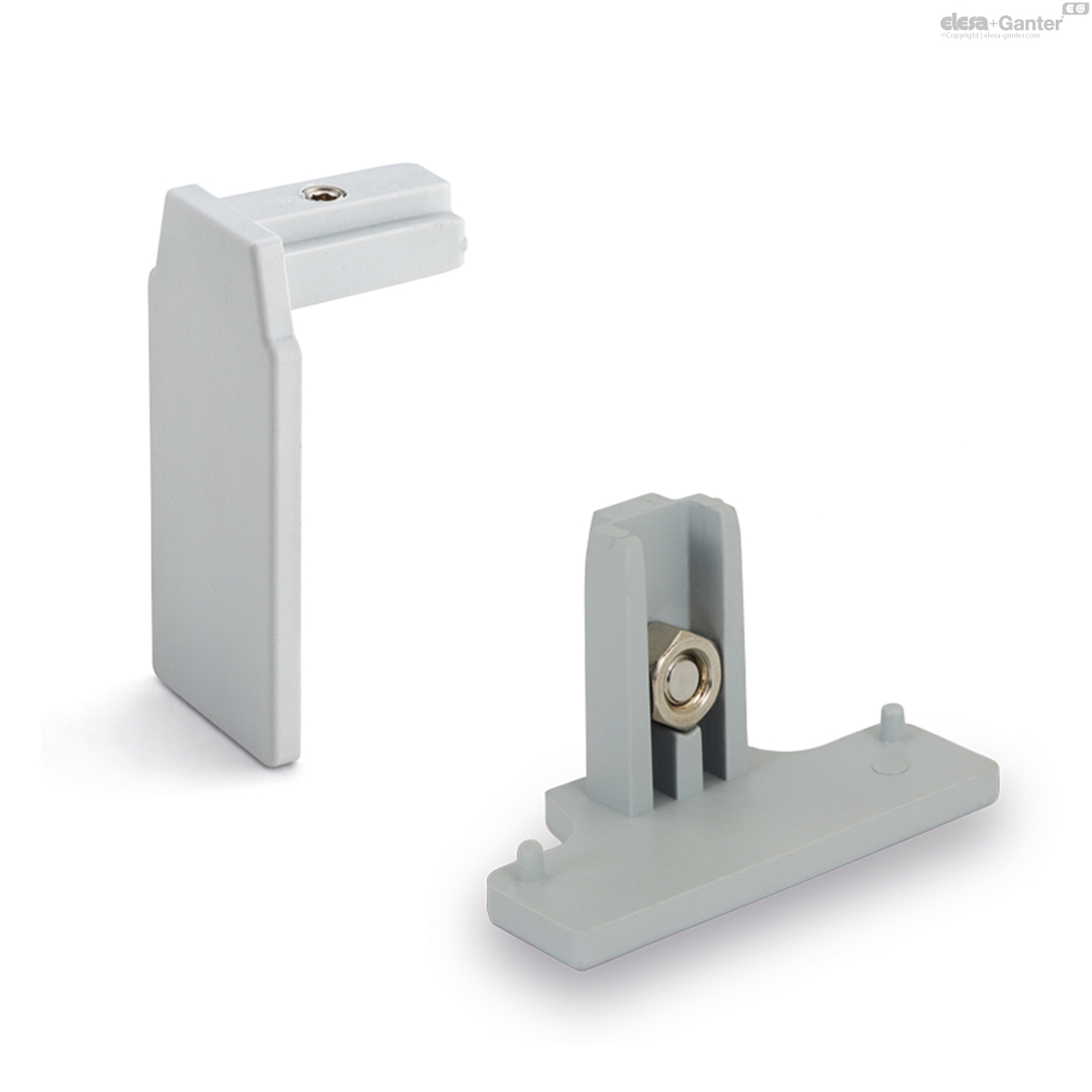

TGL Closing cap for GLA and GCA guides
Technopolymer and stainless steel
Eta: 1-2 weeks All sizes and variants of TGL
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 419143
- d
- 2.5
- d1
- M5
- f1
- 3.2
- L
- 47.5
- f
- 40.9
- b1
- 8
- b2
- 13.5
- h1
- 9.5
- h2
- 14
- h3
- 3.5
- h4
- 23.5
- l1
- 3
- l3
- 13.5
- 9
Material
Polyamide-based (PA) technopolymer, grey colour.
Screw and nut
AISI 304 stainless steel.
Features and applications
TGL closing cap is used at the ends of GLA side guides (Fig.1) and GCA central guides (Fig.2).
