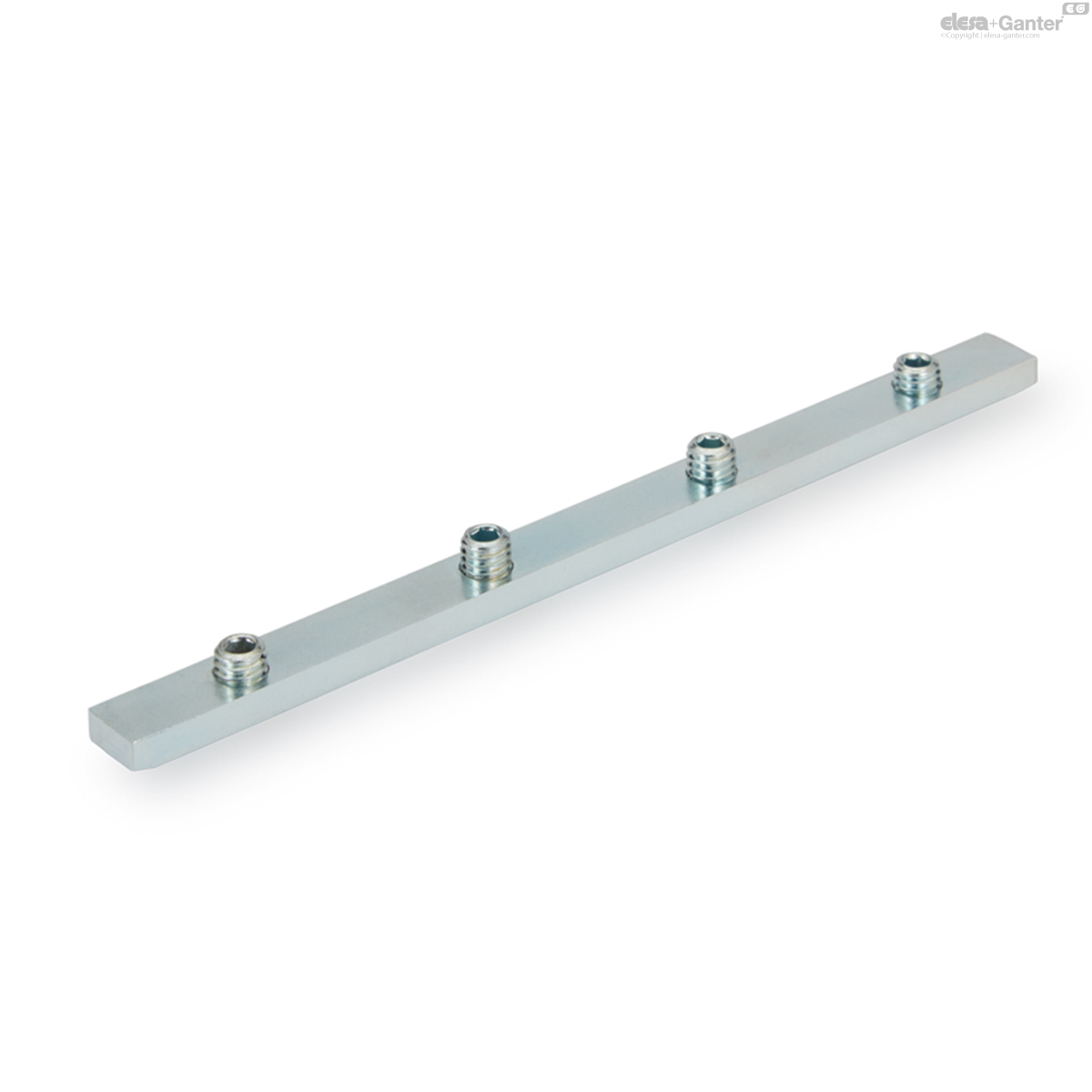

BDG-12-180 BDG Zinc-plated steel

BDG-12-180

BDG Zinc-plated steel

for GLA and GCA, steel or stainless steel
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of BDG

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
419141
88
BDG-12-180 drawing
BDG-12-180 drawing

Standard executions

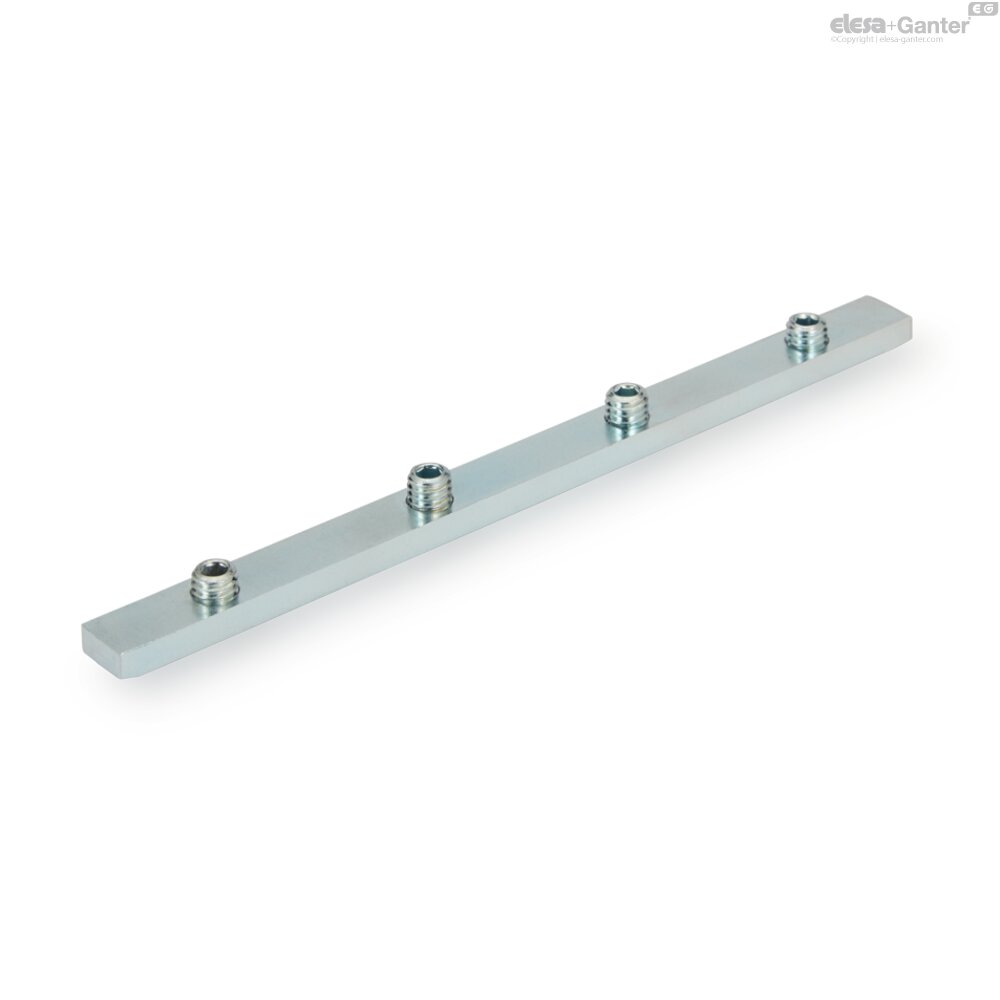

  • BDG: zinc-plated steel.
  • BDG-SST: AISI 304 stainless steel.

Screws

Zinc-plated steel or stainless steel.

Features and applications

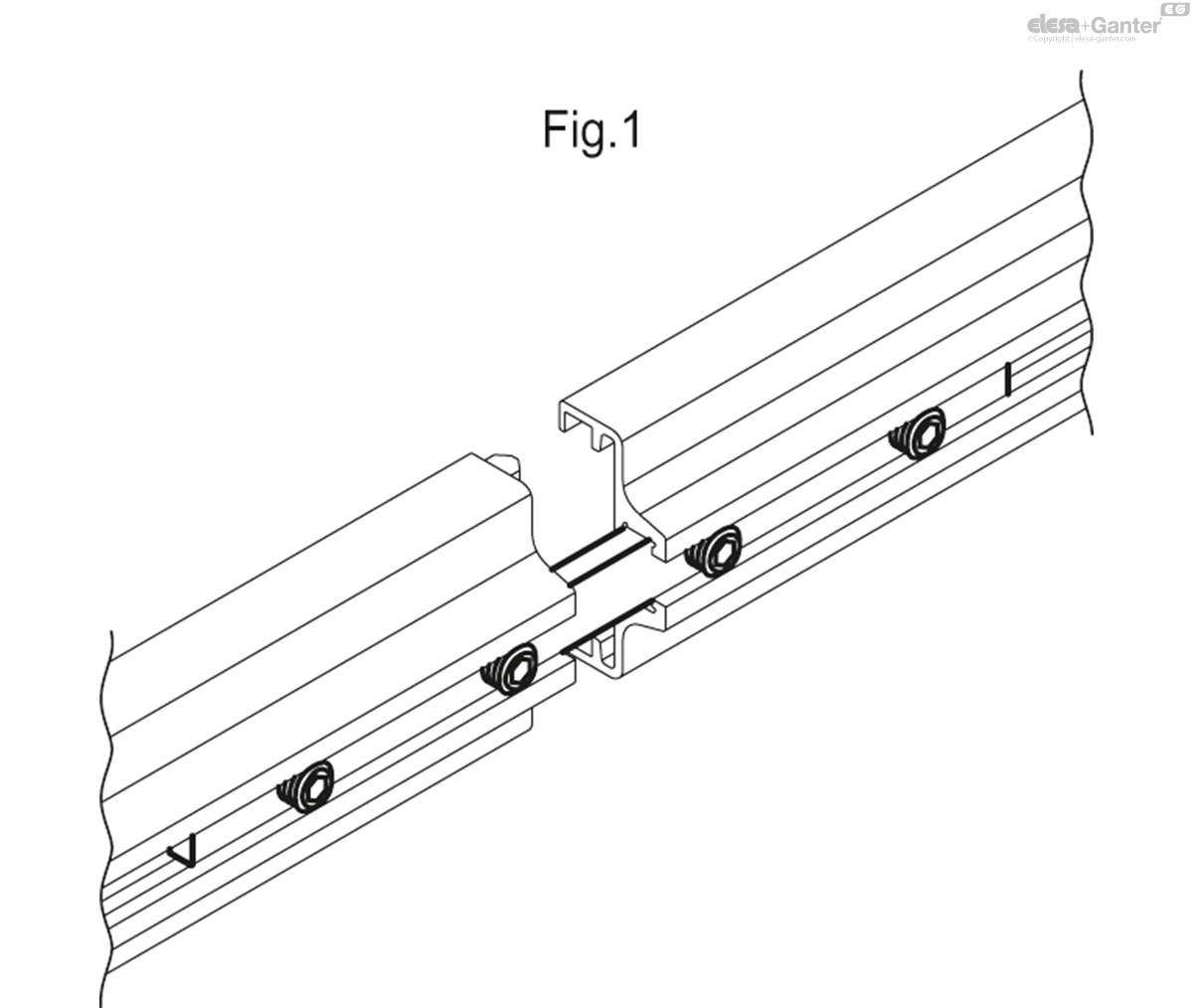

BDG connecting bar is used for connecting the profiles (Fig.1) of the different side guides (GLA) or central guides (GCA). It is supplied with 4 assembly grub screws M8x10 with hexagon socket.
