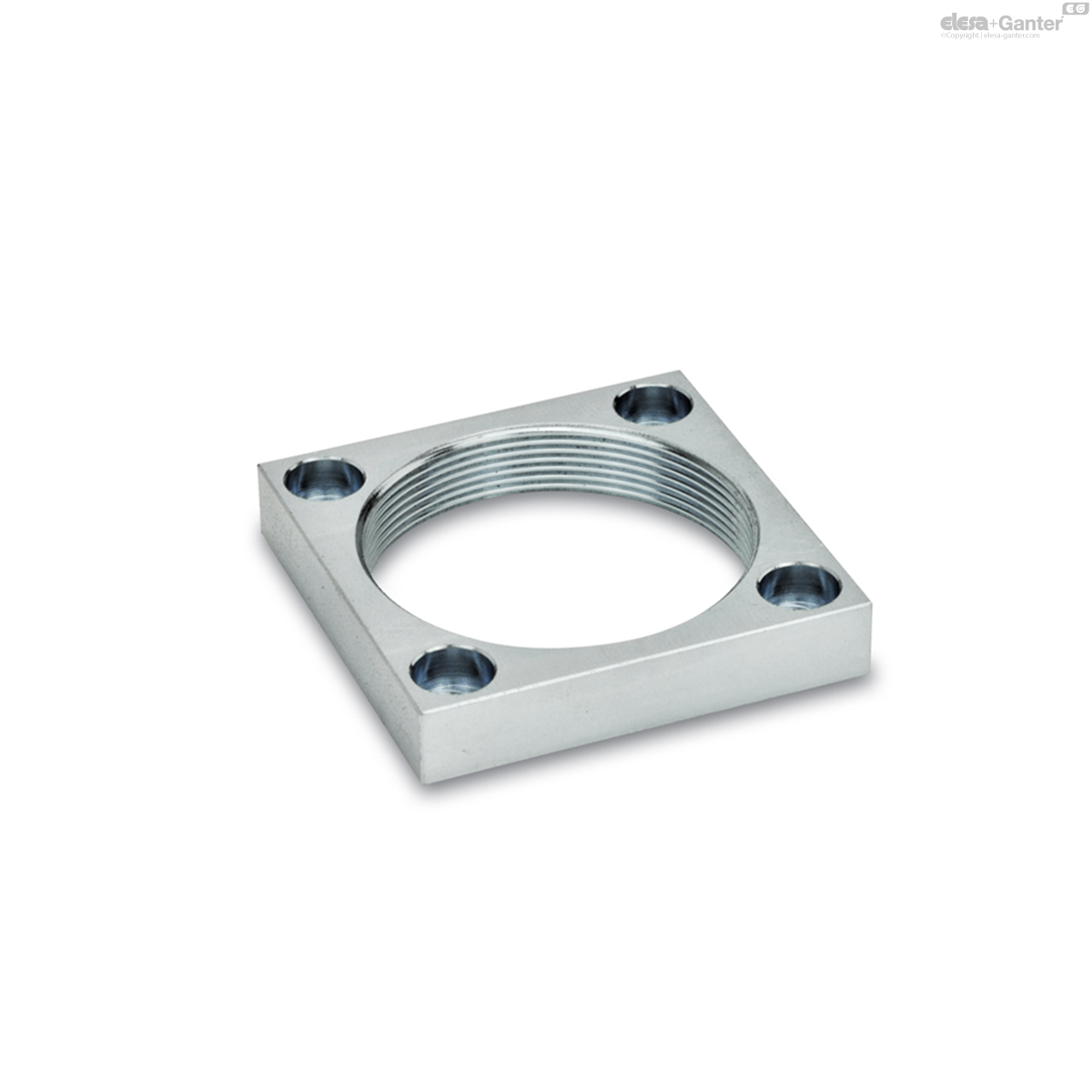

876.1-ST-M55X1,5-50 GN 876.1 Threaded flanges

876.1-ST-M55X1,5-50

GN 876.1 Threaded flanges

for swing clamps GN 876
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 876.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 876.1-ST-M55x1,5-50
For swing clamps
Size
40
d1
M 55 x 1.5
m
50
d2
6.6
h
12
l
65
153

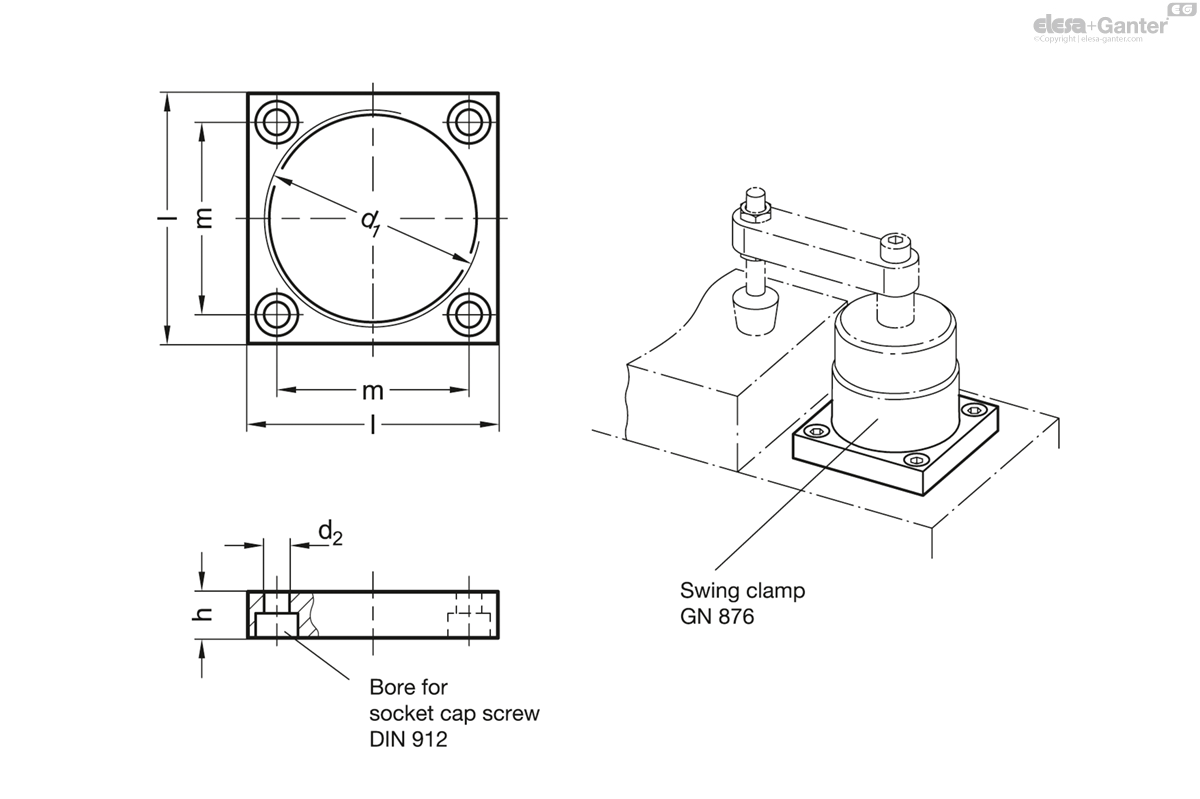

876.1-ST-M55X1,5-50 drawing

Steel ST

zinc plated, blue passivated

Threaded flanges GN 876.1 designed as accessories to swing clamps GN 876.

This makes it unnecessary to tap the mounting hole of the part.
