70852-ST-M55X1,5 DIN 70852 Slotted locknuts

70852-ST-M55X1,5

DIN 70852 Slotted locknuts

flat design
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of DIN 70852

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 70852-ST-M55x1,5
d1
M 55 x 1.5
d2 h12
75
d3
67
b
8
h h11
8
Code no. for
C-Spanner
DIN 1810-A68-75
110

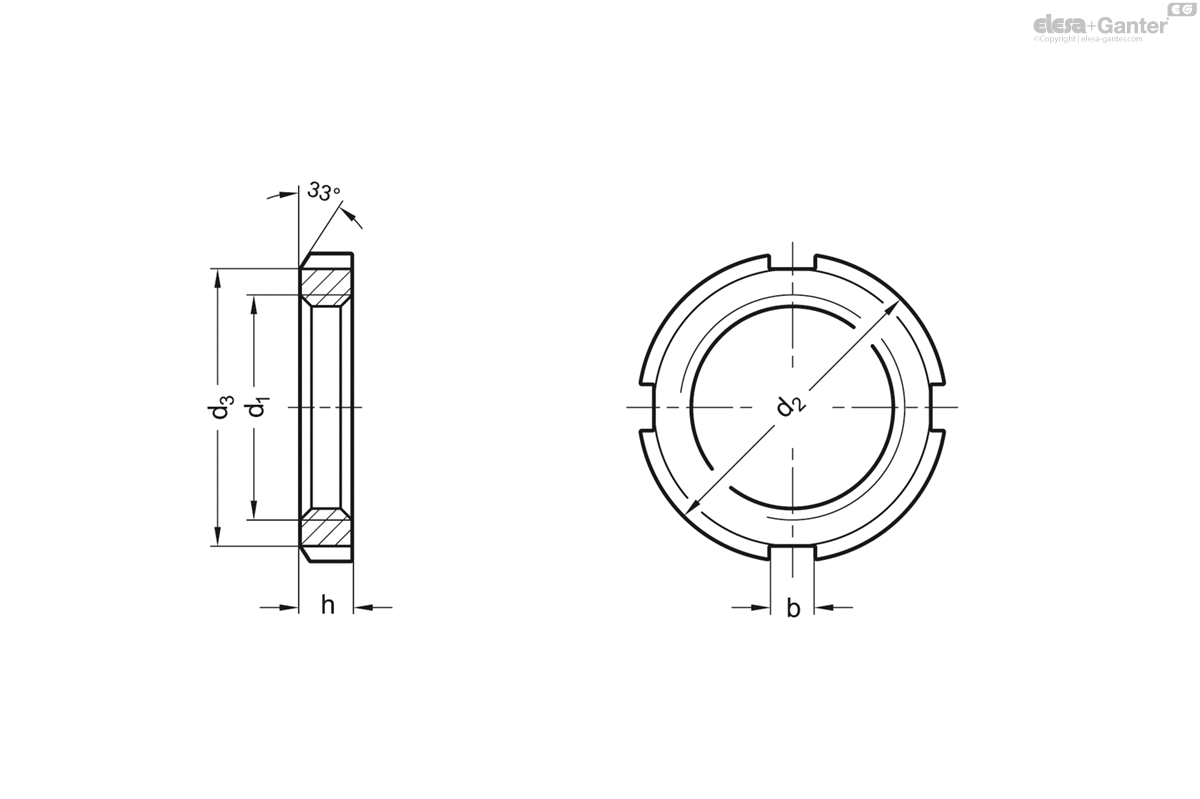

70852-ST-M55X1,5 drawing

Steel ST

  • Tensile strength class 17H
  • zinc plated, blue passivated

Slotted locknuts DIN 70852 serve for adjusting the amount of play or for securing shaft-hub connections in an axial direction, for example. The flat design of the slotted locknuts allows for especially space-saving installation.

Sizes M45x1,5 and larger have 6 slots.

  • C-Spanner DIN 1810 (Code no. see table)
