466-M4-ZB
DIN 466-ZB Zinc plated
Steel / Stainless Steel, High Type
Eta: 1-2 weeks All sizes and variants of DIN 466
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

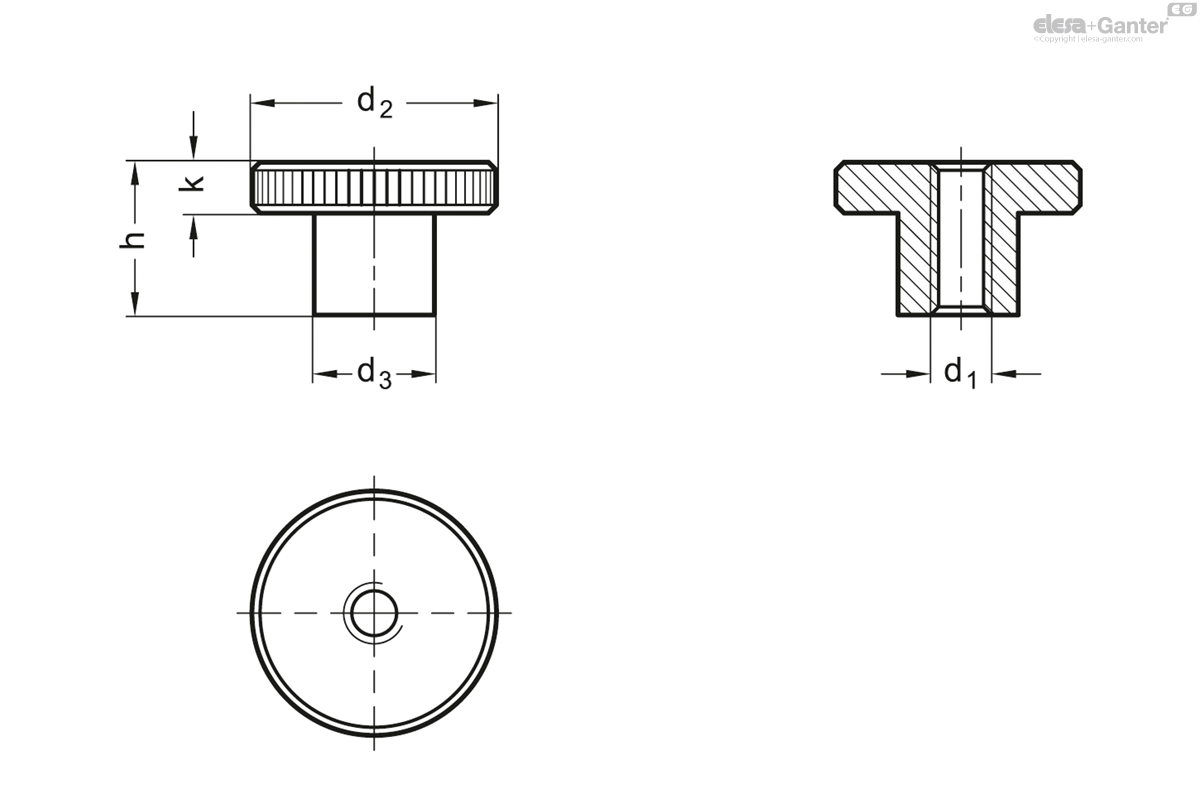

Technical data
- Catalogue
- DIN 466-M4-ZB
- d1
- M 4
- d2
- 16
- d3
- 8
- h
- 9.5
- k
- 3.5
- 7
Version in Steel
- Property class 5
- Visible face fine turned
- Blackened
- Zinc plated, blue passivated ZB
Version in Stainless Steel
- AISI 303 NI
- AISI 316L A4
- Matte shot-blasted

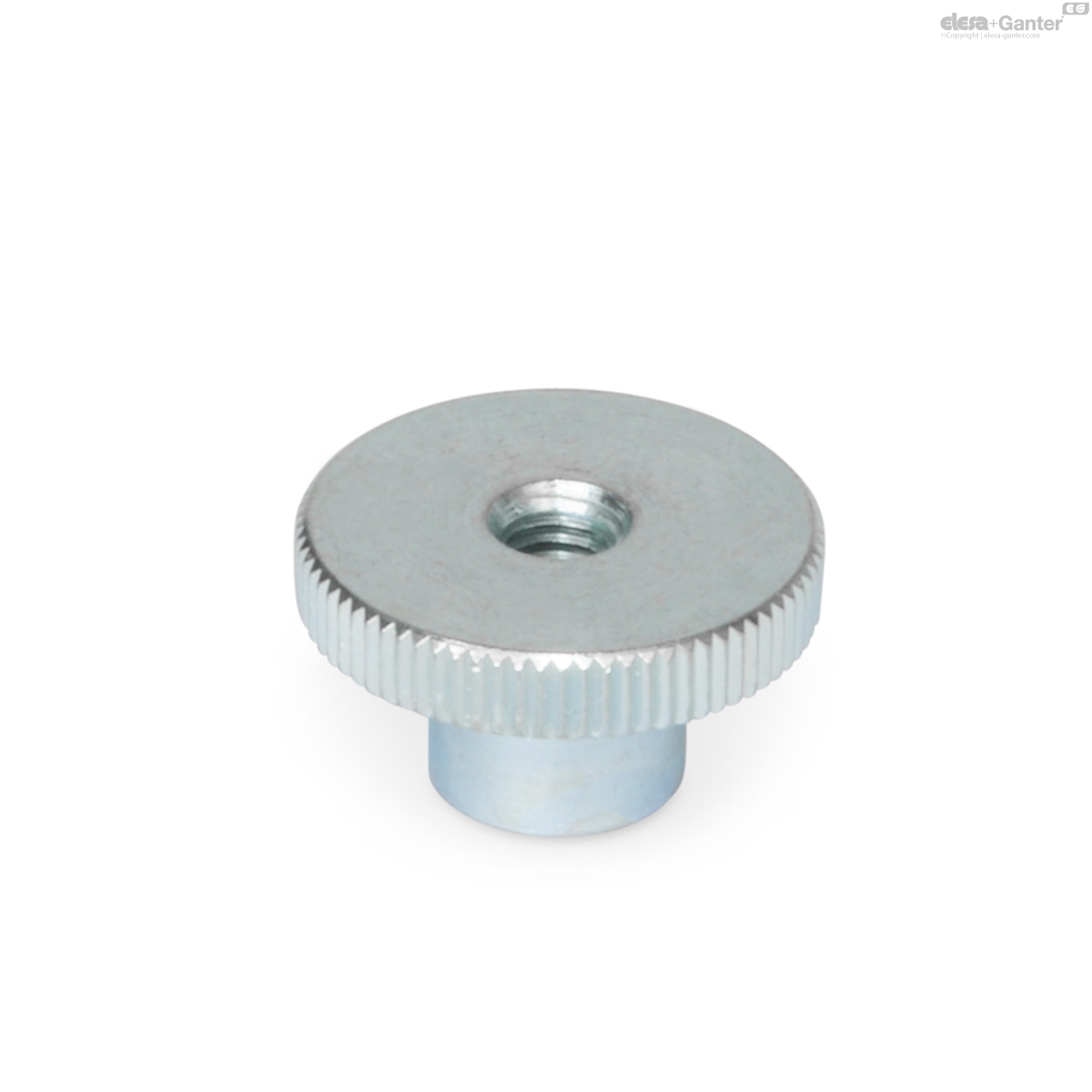

Knurled nuts DIN 466 are suitable for universal use and can be tightened and loosened easily without tools. A nut with thread M12 is also available in addition to the types defined in the DIN standard.
