439-32-M8-40-70 GN 439 Leveling feet

439-32-M8-40-70

GN 439 Leveling feet

with rubber underlay, vulcanized
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 439

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 439-32-M8-40-70
d1
32
d2
M8
l
40
h
18
s
2
A/F
4
Static load
in N ≈
840
37

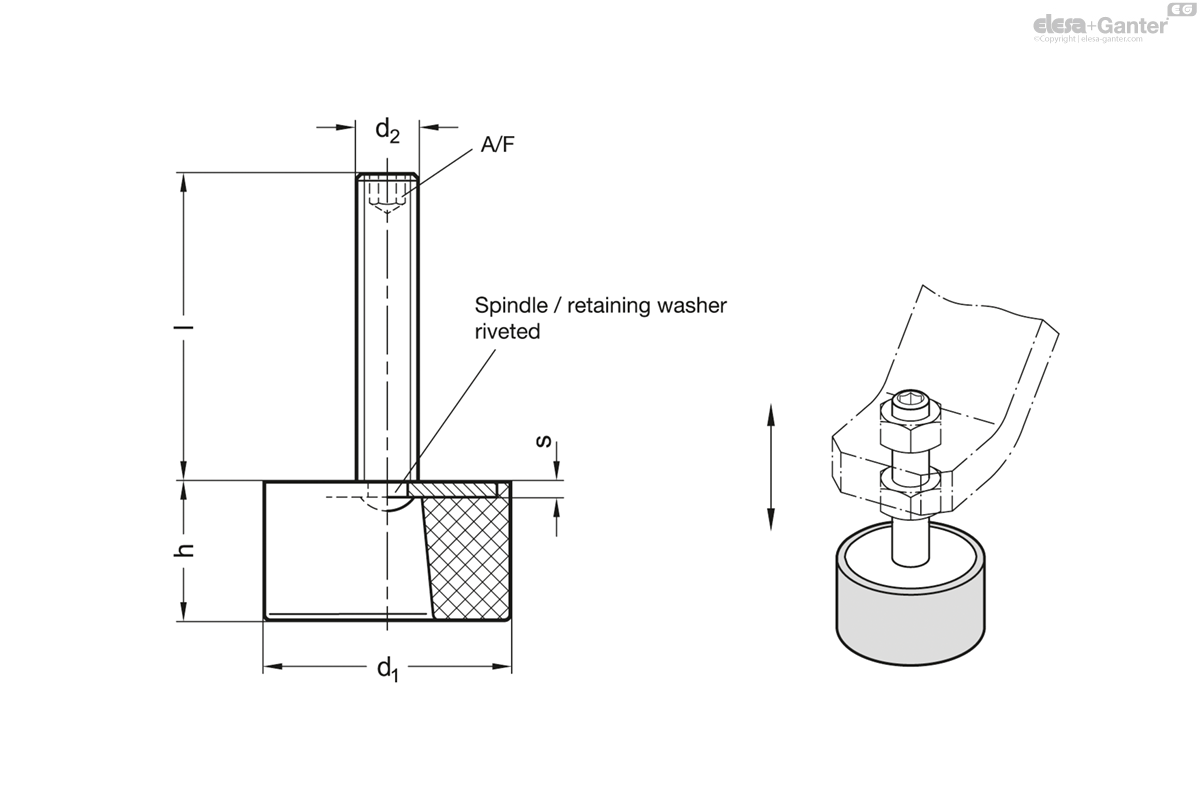

439-32-M8-40-70 drawing

Steel

Tensile strength class 5

zinc plated, blue passivated

Rubber underlay

Acrylonitrile butadiene rubber (NBR)

  • vulcanized
  • black
  • temperature resistant up to 120 °C
  • Hardness Shore A 70

GN 439 levelling feet are used for installing smaller machines, systems or devices.

Thanks to the rubber underlay, they have a damping, noise-reducing effect and prevent surface damage. They are also designed such that the threaded spindle can absorb compressive forces. This is necessary because the retaining washer is not evenly supported during leveling.

Thanks to the stable rivet connection between the threaded spindle and the retaining washer, the introduced forces can be reliably transmitted to the rubber underlay.

  • other spindle diameters and lengths
