ELC.67-A6-C17

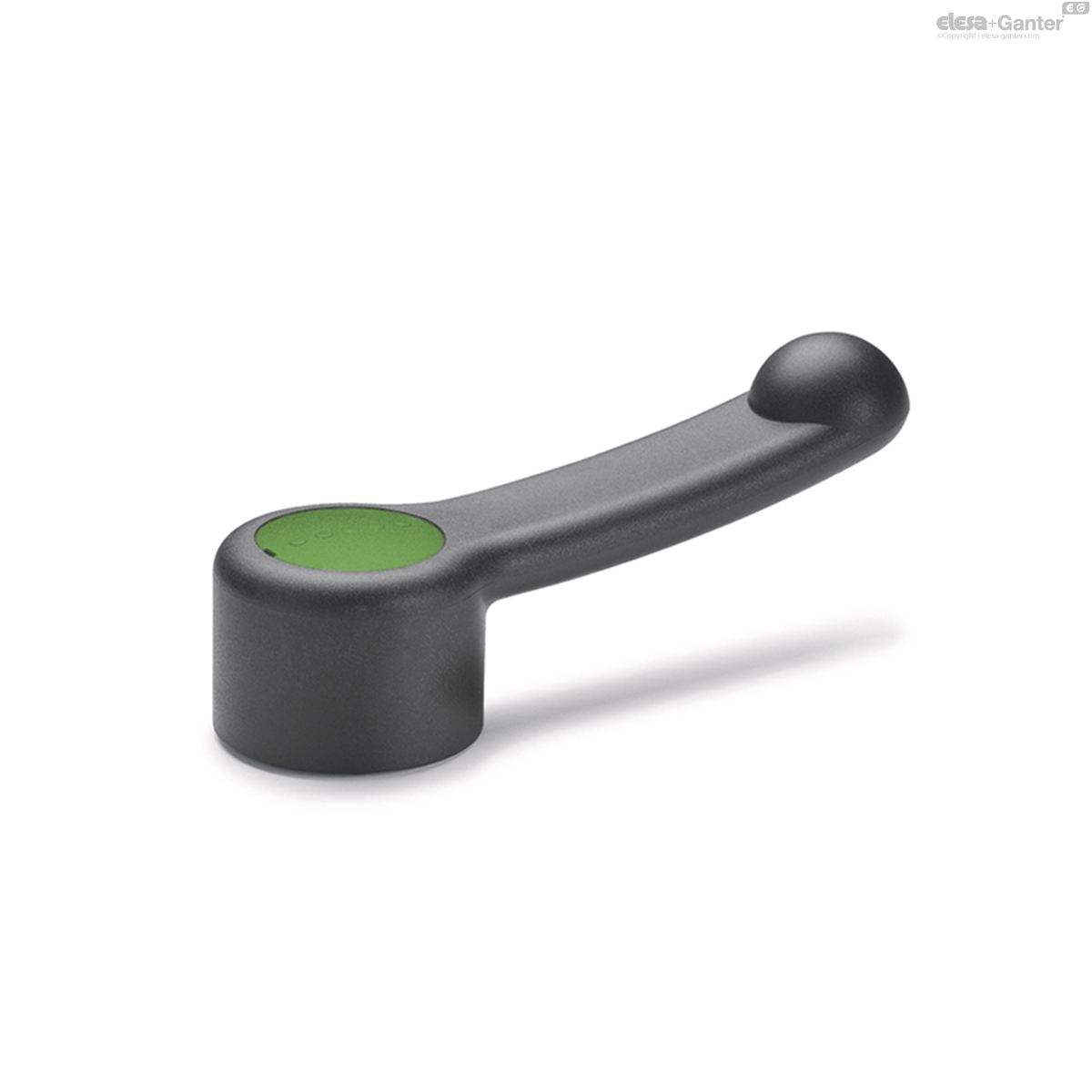

ELC. Black-oxide steel boss, cap in the Ergostyle colours — may green (RAL 6017)
Expected delivery time 5-7 working days
Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- 212121-C17
- Description
- ELC.67 A-6-C17
- D
- 32
- dH7
- 6
- L
- 67
- H
- 35
- h
- 16
- h1
- 24
- h2
- 24
- h3
- 5
- h4
- 3
- h5
- 10
- d1
- 15
- d2
- 22.5
- d3
- 4
- d3*
- 4
- d4
- 10
- d5
- 16
- l
- 20
- R
- 12
- t
- 9
- c
- 4
- β
- 125±1°
- f
- 24
- 67
Material
Glass-fibre reinforced polyamide based (PA) technopolymer, grey-black colour, matte finish.
Boss cap
Glass-fibre reinforced polyamide based (PA) technopolymer, matte finish, press-fit assembly. Supplied, removable by a screwdriver.
Standard executions
- ELC: black-oxide steel boss, H7 reamed hole, cap in the Ergostyle colours.
- ELC-FC3: black-oxide steel boss, H7 reamed hole, cap in RAL 7035 light grey colour, with arrow indicator.
- ELC-SST: AISI 303 stainless steel boss, H7 reamed hole, cap in the Ergostyle colours.
- ELC-SST-FC3: AISI 303 stainless steel boss, H7 reamed hole, cap in RAL 7035 light grey colour, with arrow indicator.
Ergonomy
Rotations are performed smoothly and powerfully thanks to the heavy-duty arm of the lever, while the enlarged and sunken semispherical end offers an effective grip.
Manoeuvre angle limitation
A limited manoeuvre angle is possible by fitting stop pins in the rear guide slot.
Accessories on request
- GN 184: axial retaining washer in black-oxide steel.
- MS.: ball and spring for clicking operation to be fitted into the two holes d3 drilled at 180° (see ball and spring).
- ECB.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, in Elecolors colour, matte finish, press-fit assembly (see table).
- ECBF.T: glass-fibre reinforced polyamide based (PA) technopolymer boss cap, RAL 7035 light grey colour, with arrow indicator, press-fit assembly (see table).
Special executions on request
Levers with cross holes according to GN 110.
