113.9-20-150
GN 113.9 Ball Lock Pins
Eta: 1-2 weeks All sizes and variants of GN 113.9
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

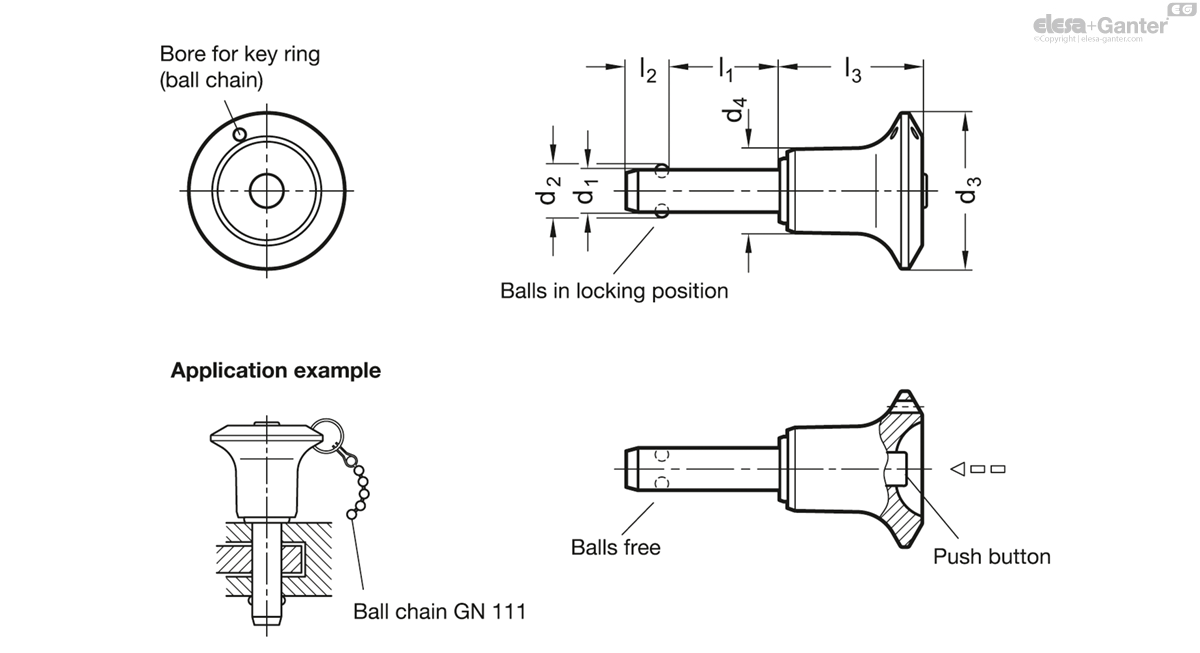

Technical data
- Catalogue
- GN 113.9-20-150
- d1 -0.04/-0.08
- 20
- l1 +0.6
- 150
- d2
- 24.8
- d3
- 38
- d4
- 23.4
- l2 ±1
- 17
- l3 -0.2
- 42.6
- Location
bore H11 - 20
- Load F in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 244
- 530
Pin
Stainless steel AISI 303
Knob, push button
Stainless steel AISI 316L
Balls
Stainless steel AISI 420C
Pressure spring
Stainless steel
German material no. 1.4565
Ball lock pins GN 113.9 are used for quick fixing, connecting and locking of various parts and workpieces. A typical application is location pins which have to be often removed and replaced again.
By pressing the spring loaded push button both balls are unlocked and by releasing it, the balls are locked again.
The technical appendix contains the load capacities for the double-sided shearing resistance (breaking strength).
Information
The load capacities specified in the table for the double sided shearing resistance (breaking strength) have been calculated or theoretically defined on the basis of DIN 50141.
At the same time, the endangered bolt cross-section S, according to a nearby sketch, was considered in two shear planes before breakage.
The details given on load rating are non-binding guide values without any liability. In general, they do not constitute a warranty of condition.
The user must determine whether the product is suitable for the intended purpose. Environmental factors can influence the specified values.
An appropriate safety factor must be taken into account in the design.
