7062.30-36-B15 GN 7062.30 Damping Washers

7062.30-36-B15

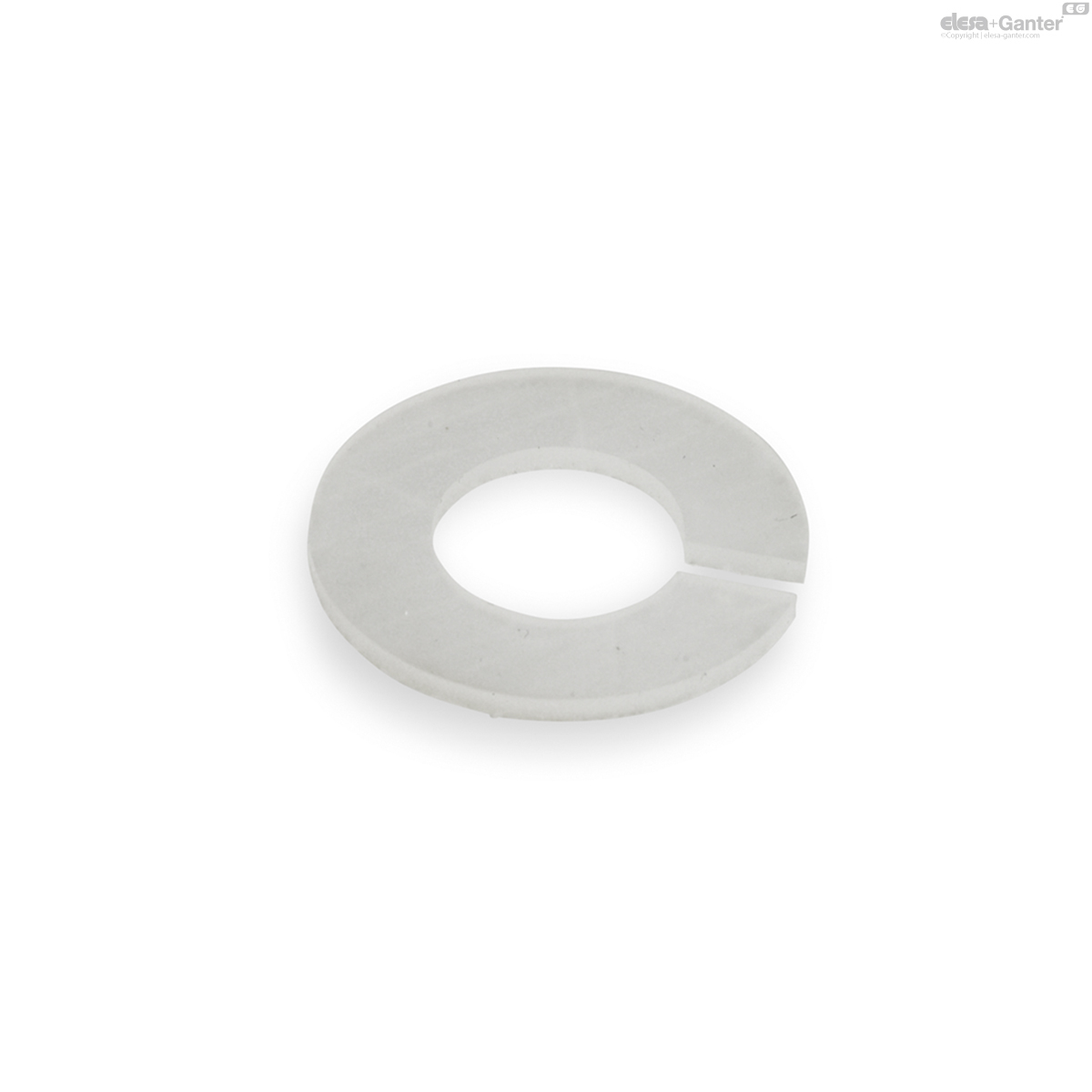

GN 7062.30 Damping Washers

Elastomer, for Semi-Split Shaft Collars
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 7062.30

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 7062.30-36-B15
d1
36
d2
B 15
d3
34
d4
16
b ±0.2
2
s
2.1
2

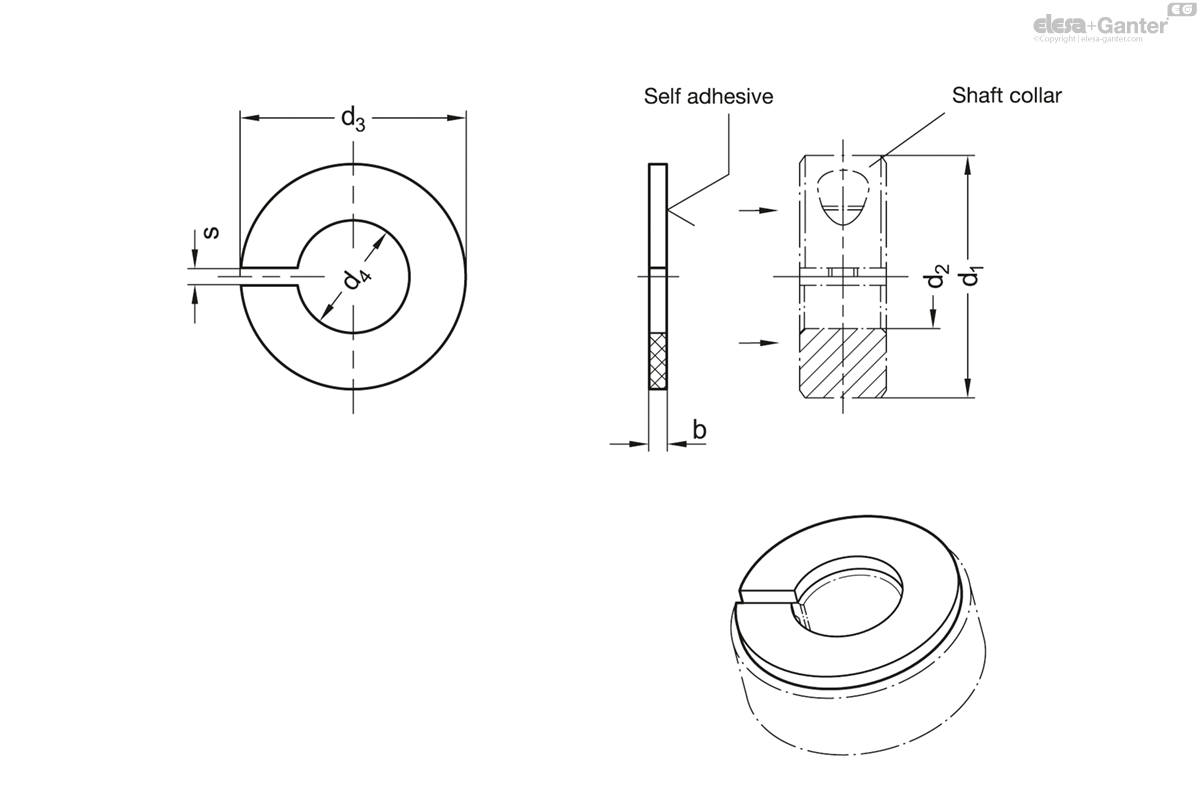

7062.30-36-B15 drawing

Elastomer (PUR)

  • 70 Shore A
  • Temperature resistant up to 80 °C
  • Transparent

Adhesive film

  • Acrylate dispersion, solvent-free
  • Strong adhesion

Damping washers GN 7062.30 are designed as accessories for split and semi-split shaft collars and are attached with the help of an adhesive film, preferably on the groove-less side of the shaft collar. They absorb mild shocks and have a sound-dampening effect when the shaft collars come into contact with other components.

Generally, after the protective film is removed, the damping washers can be attached to any suitable and clean surface.

Semi-split shaft collars GN 7062.3  are generally offered with assembled damping washers.
