412.4-M16X1,5-B12,2 GN 412.4 Stainless Steel-Positioning bushings

412.4-M16X1,5-B12,2 GN 412.4 Stainless Steel-Positioning bushings

for indexing plungers / cam action indexing plungers
All sizes and variants
  • INOX
  • RoHS

Eta: 1-2 weeks

Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 412.4-M16x1,5-B12,2
d1
M 16 x 1.5
d2 +0.1
B 12.2
d3 -0.05
16
l1 -0.2
12
l2
15
A/F
17
weight
8

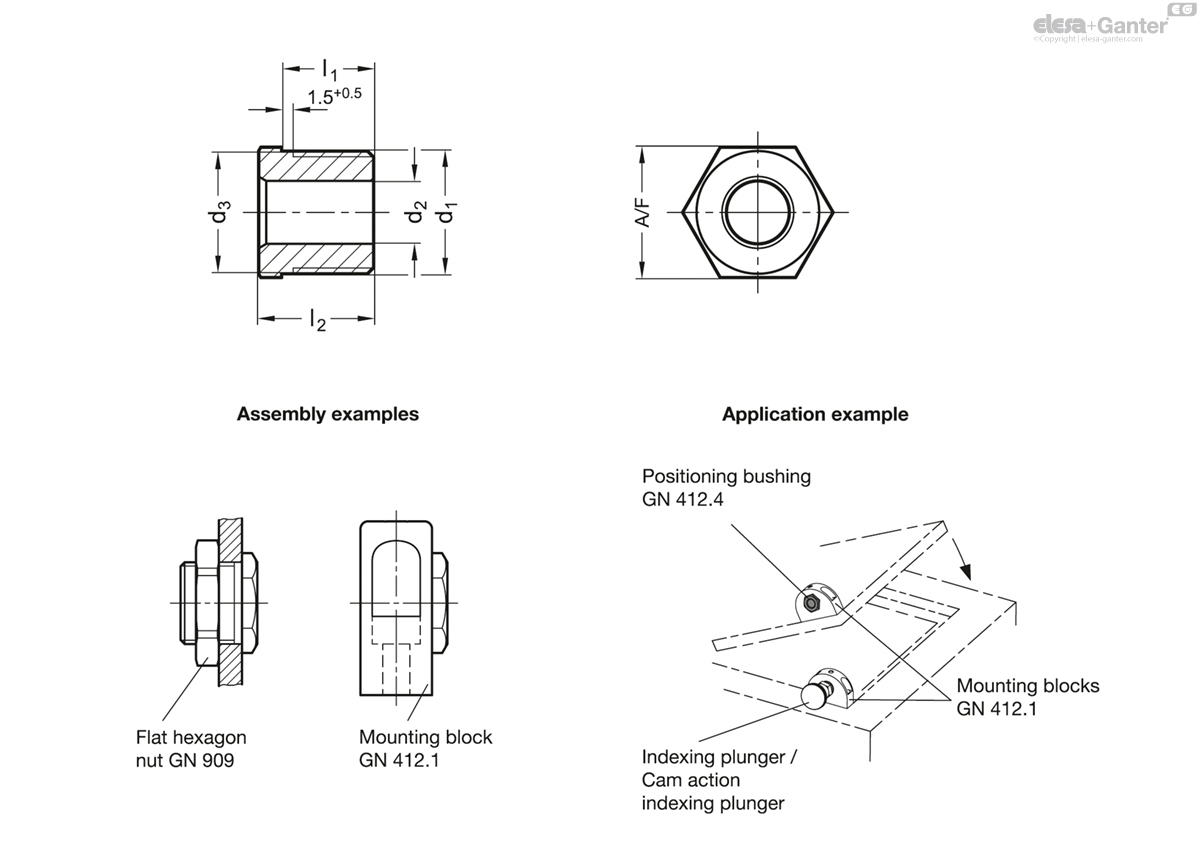

412.4-M16X1,5-B12,2 drawing

Stainless Steel AISI 431

hardened

Stainless Steel-Positioning bushings GN 412.4 are used in connection with bolts of indexing plungers and cam action indexing plungers.

The threads are adapted to the mounting blocks GN 412.1 and GN 612.1.
