970-ALM-40-40-80-B GN 970 equal sides

970-ALM-40-40-80-B

GN 970 equal sides

equal / unequal sides
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 970

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 970-ALM-40-40-80-B
h1
40
b1
40
l1
80
b2
24
d
8.2
h2
24
l2
20
m
40
s
5
77
970-ALM-40-40-80-B drawing
970-ALM-40-40-80-B drawing

Version with equal sides

Types

  • Type A: without bores
  • Type B: with bores

Version with unequal sides

Types

  • Type A: without bores
  • Type C: with bores and slotted holes

Structural Steel STB

drawn, with sharp edges

blackened

Aluminium ALM

pressed

matt, ground

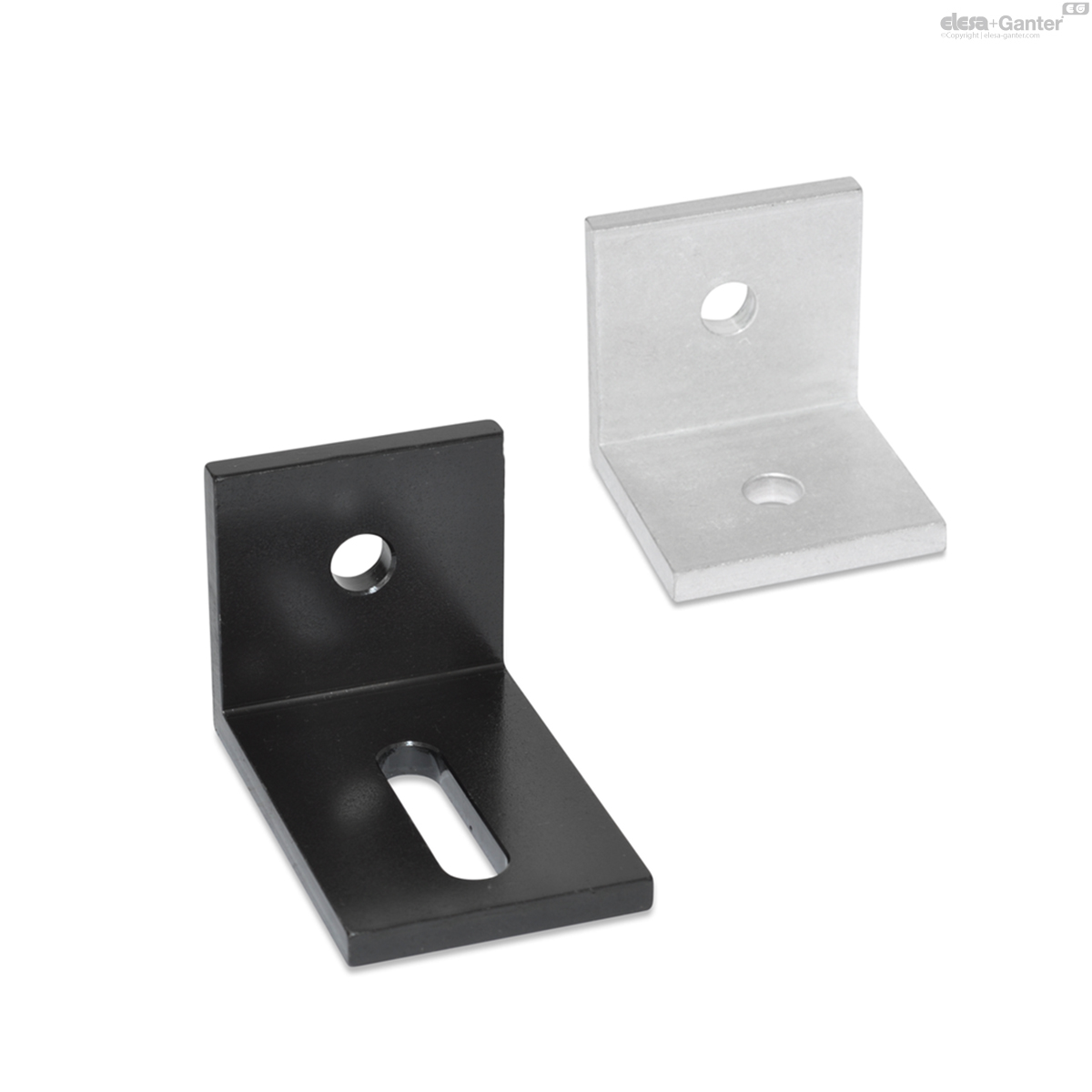

GN 970 installation brackets are used universally for right-angle connecting and fastening of, e.g. base plates or covers.

Type A allows for the use of drilling templates specific to the application as well as fastening by welding.

Type B installation brackets have 2 or 4 holes depending on the length l1.

Type C installation brackets have one or two combinations of a hole and an elongated hole depending on the length l1.
