124.1-10-33

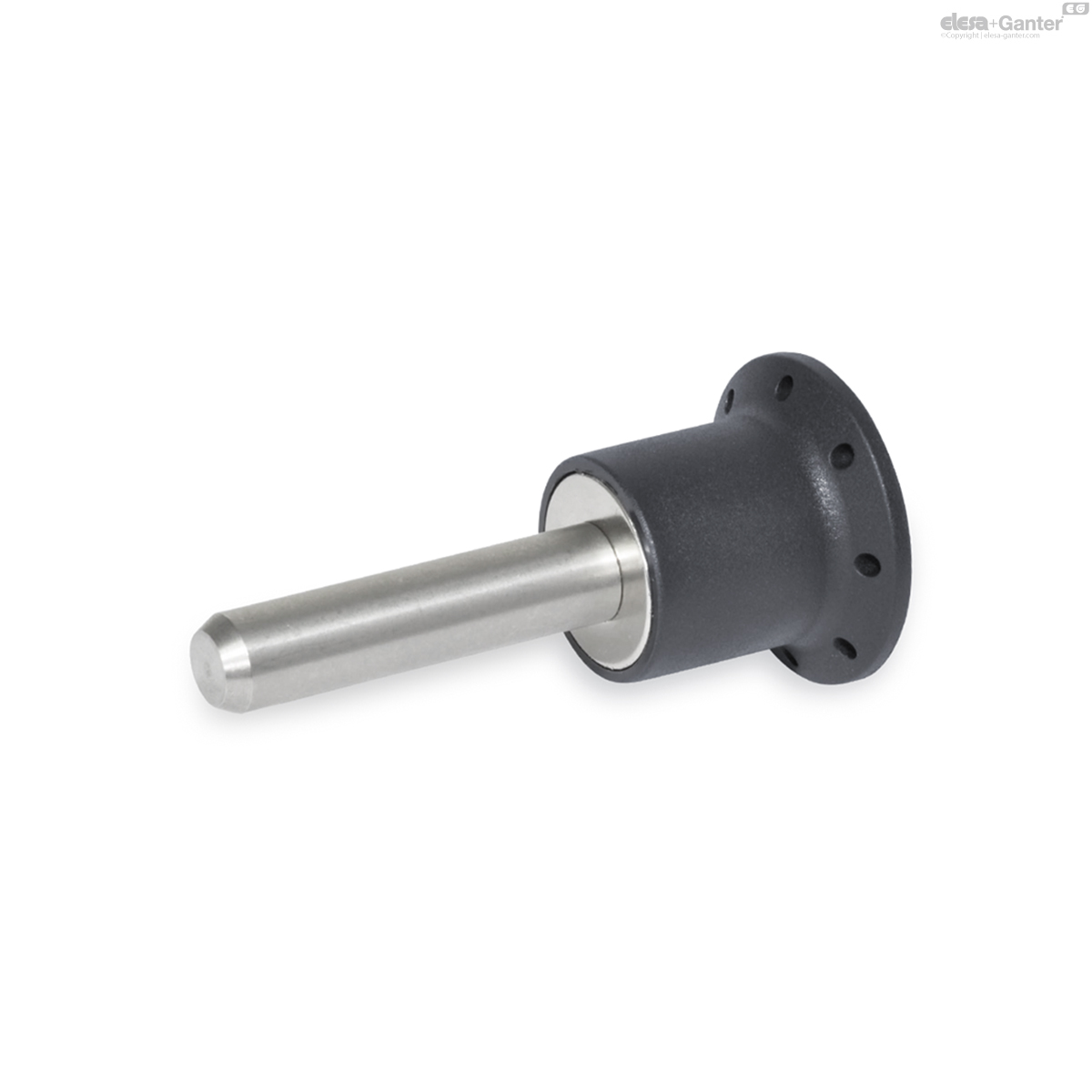

GN 124.1 Stainless Steel-Locking pins
Eta: 1-2 weeks All sizes and variants of GN 124.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 124.1-10-33
- d1 -0.04/-0.08
- 10
- l1
- 33
- b1
- 34
- d2
- 34
- b2
- 23
- d3
- 23
- k
- 28.5
- l2
- 28.5
- l2 ±0.2
- 2.2
- l3
- 2.2
- Location bore
- 10
- s2
- 10
- Axial holding
force in N ≈ - 95
- Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength) - 62
- Location
bore H11 - 62
- Load in N ≈
Mounting - 52
- 52
Pin
Stainless Steel AISI 303
Knob
Plastic Technopolymer (Polyamid PA)
- black-grey
- temperature resistant up to 80 °C
Retaining magnet
Neodymium, iron, boron
GN 124.1 Stainless Steel-Locking pins are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials.
A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention.
The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
