124.1-6-12 GN 124.1 Stainless Steel-Locking pins

124.1-6-12

GN 124.1 Stainless Steel-Locking pins

with axial lock (magnetic)
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 124.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 124.1-6-12
d1 -0.04/-0.08
6
l1
12
d2
26
d3
17.5
k
22
l2
22
l3
1.3
Location bore
6
Axial holding
force in N ≈
65
Load in kN ≈
Load capacity in kN ≈
Double sided
shearing resistance
according DIN 50141
(breaking strength)
22
14

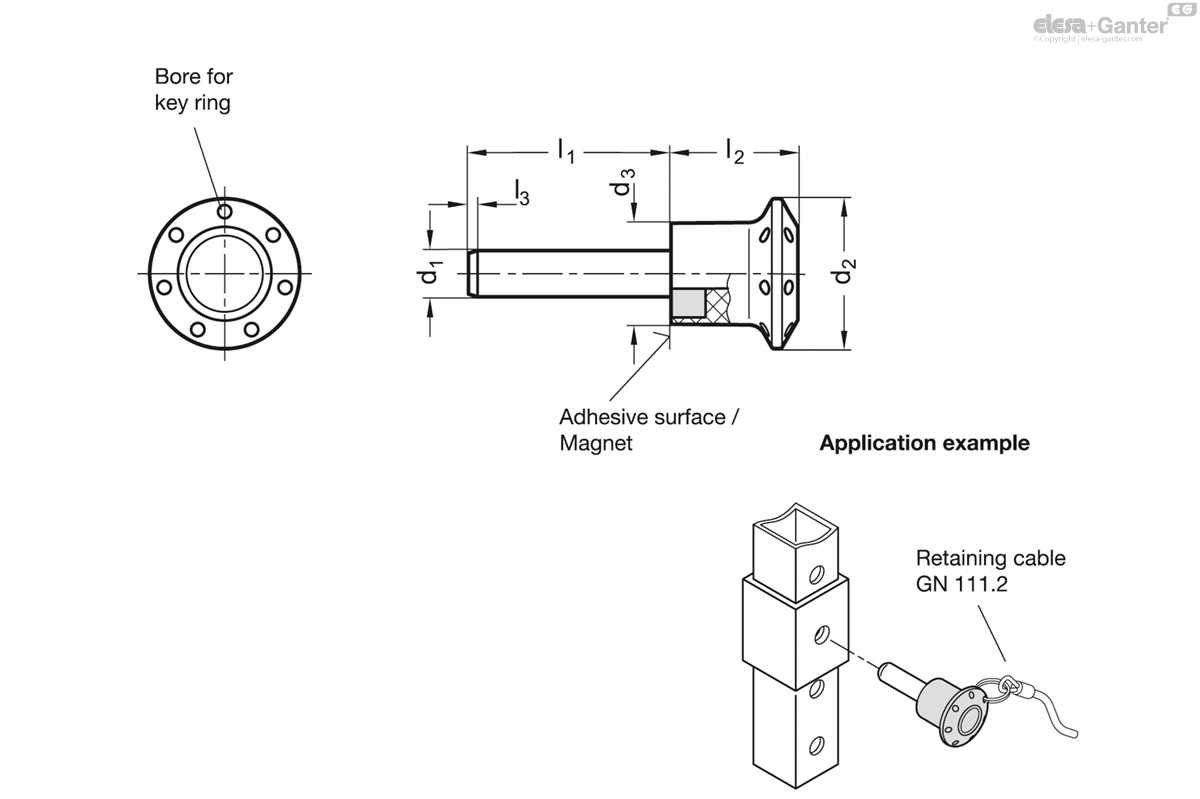

124.1-6-12 drawing

Pin

Stainless Steel AISI 303

Knob

Plastic Technopolymer (Polyamid PA)

  • black-grey
  • temperature resistant up to 80 °C

Retaining magnet

Neodymium, iron, boron

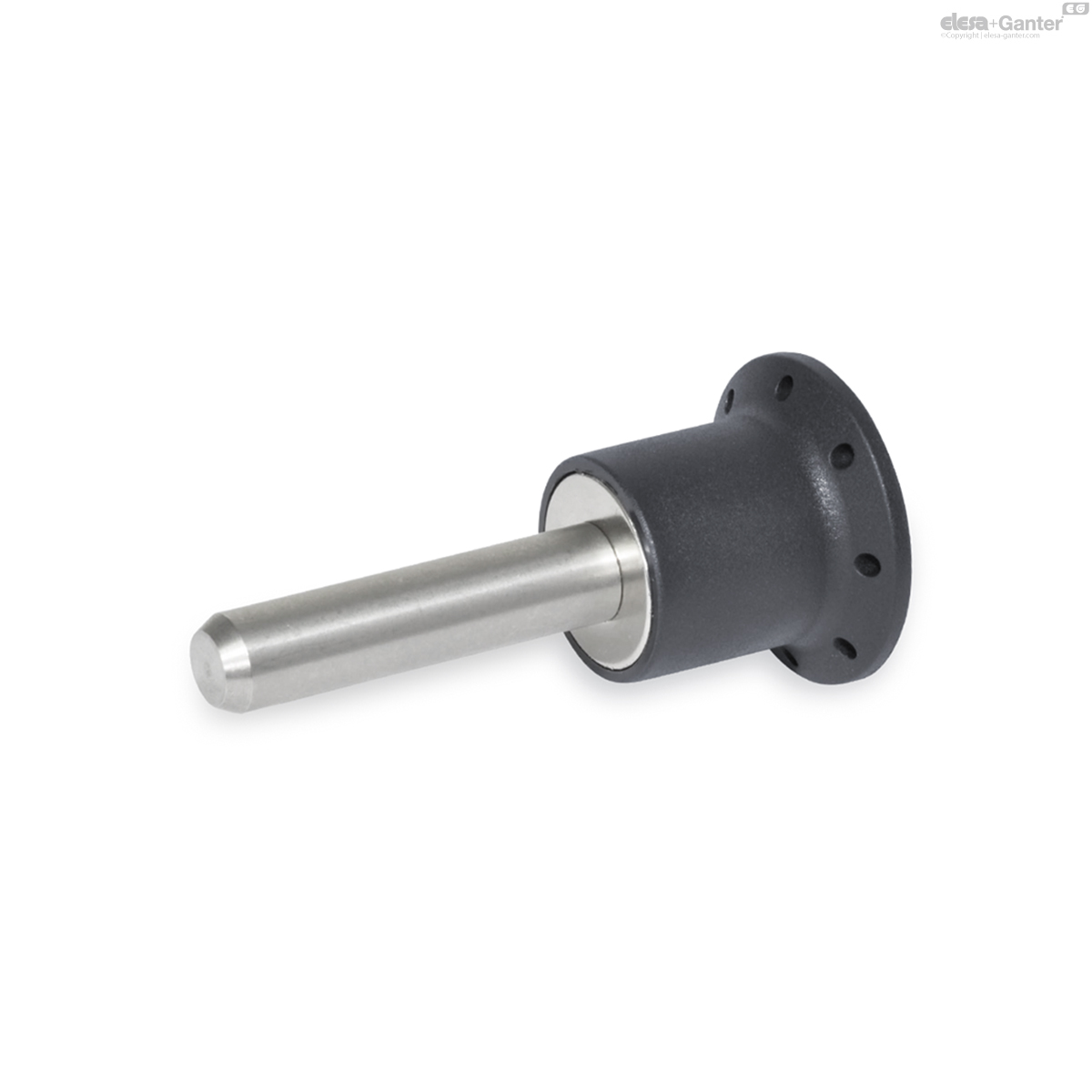

GN 124.1 Stainless Steel-Locking pins are used for quickly fixing, connecting and locking various parts and workpieces made of magnetic materials.

A neodymium magnet is recessed into the underside of the bolt and axially retains the bolt in its inserted procession. High-quality surfaces with perpendicular locating holes promote magnetic flux to produce excellent axial retention.

The rated shear stresses of the bolt cross-section are theoretical guide values only and do not constitute any warranty. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
