428-AL-36-600-B-SW GN 428 Cabinet U-Handles

428-AL-36-600-B-SW

GN 428 Cabinet U-Handles

Aluminum
  • Icons/__logo__RoHS__.png
  • Icons/__logo__IF2018__.png
  • Icons/__logo__reddot__.png
  • Icons/__logo__GermanDesignAward__.png

Eta: 1-2 weeks All sizes and variants of GN 428

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 428-AL-36-600-B-SW
b
36
l1
600
a
26
d
M 10
h1
71
h2
16.6
l2
655
l3
40
l4
13
1480

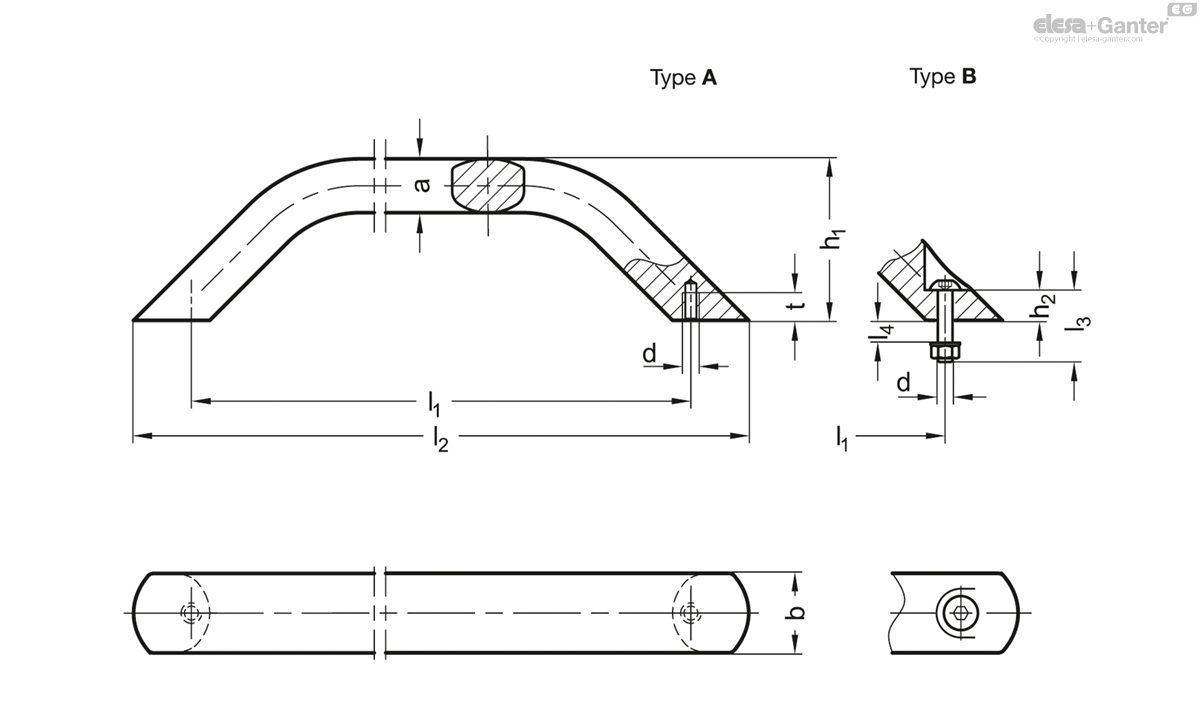

428-AL-36-600-B-SW drawing

Types

  • Type A: Mounting from the back (threaded blind bore)
  • Type B: Mounting from the operator's side

Aluminium AL

  • plastic coated, black RAL 9005, textured finish SW
  • plastic coated, silver RAL 9006, textured finish SR
  • anodized, natural colour EL

Type B

  • Lens screws ISO 7380
  • Hexagon nuts ISO 4032
  • Washers DIN 125

Stainless Steel AISI 304

Cabinet 'U' handles GN 428 are produced from profiled aluminum extrusions.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

In type B lens screws, hexagon nuts and washers are included parts of the order.

  • other finishes
