412.1-35-M8X1-2
GN 412.1 Mounting blocks
for indexing plungers / cam action indexing plungers
Eta: 1-2 weeks All sizes and variants of GN 412.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 412.1-35-M8x1-2
- b
- 35
- d1
- M 8 x 1
- d3
- M 4
- d4
- 8.2
- d5
- M 5
- h
- 26
- k
- 25
- l2
- 14
- s
- 12
- t1
- 2
- t2 min.
- 10
- 39

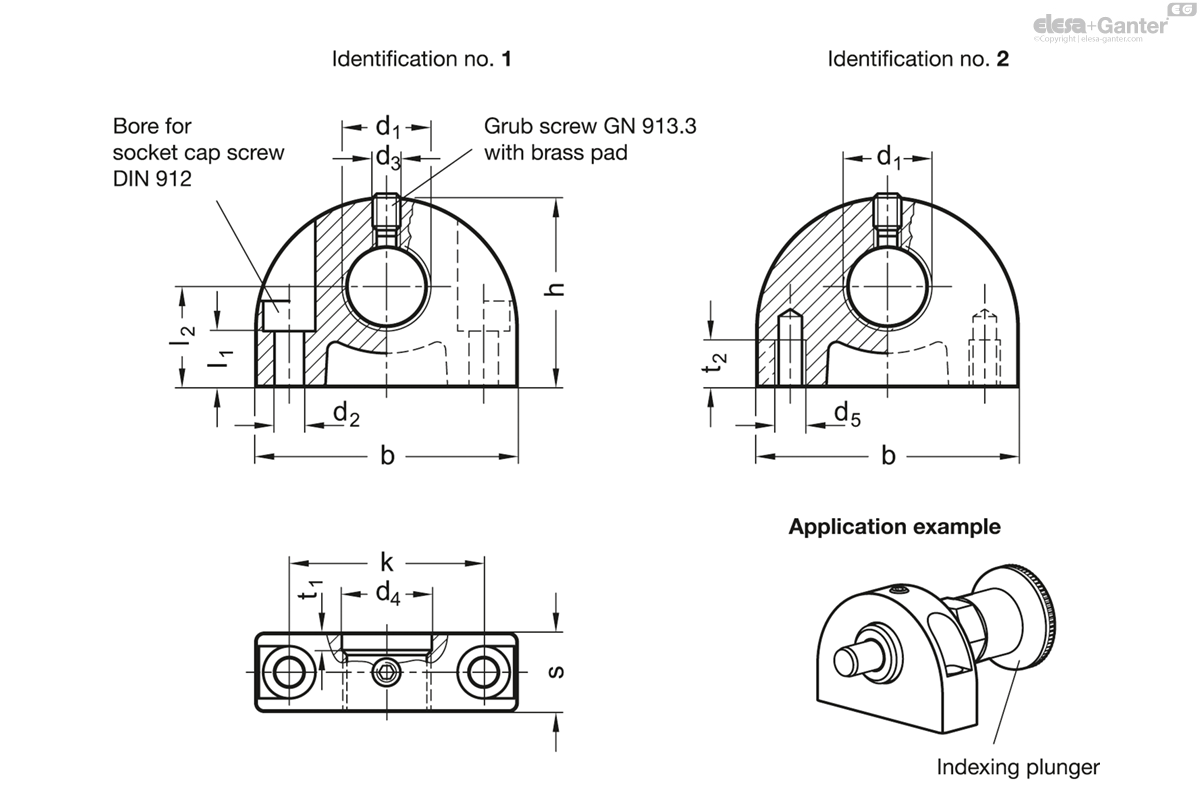

Identification no.
- No. 1: Mounting from the front
- No. 2: Mounting from the back
Zinc die casting
plastic coated
black, textured finish
Mounting blocks GN 412.1 are reasonably priced fitting aid for indexing plungers, cam action indexing plungers and for setting bolts and buffers.
To position the indexing pin of an indexing plunger or cam action indexing plunger, they can also hold positioning bushings GN 412.2 .
