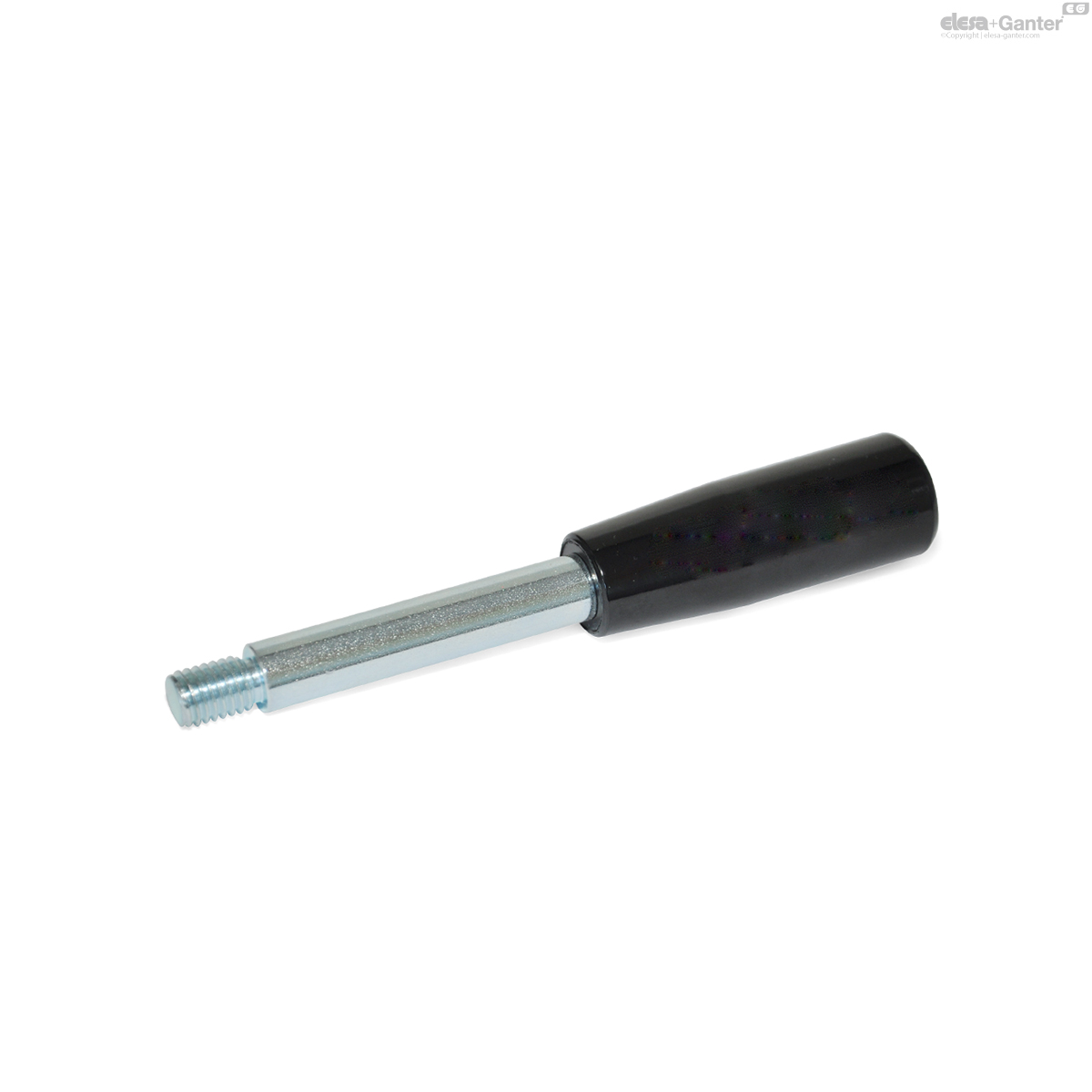

310-12-160-E-ZB GN 310-ZB Steel, zinc plated, blue passivated

310-12-160-E-ZB

GN 310-ZB Steel, zinc plated, blue passivated

Steel / Stainless Steel, Knob Plastic
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 310

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 310-12-160-E-ZB
d1
12
l1
160
d2
M 10
d5
23
l2
14
l5
65
150
310-12-160-E-ZB drawing

Types

  • Type A: Ball knob DIN 319
  • Type D: Domed gear knobs I.222
  • Type E: Cylindrical knob I.280

Shaft

  • Steel
  • Zinc plated, blue passivated ZB
  • Stainless Steel AISI 303 NI
  • Matte shot-blasted

Knob

Plastic, phenolic resin (PF)

  • Black, shiny finish
  • Screwed-on

Gear lever handles GN 310 are highly universal options for movement and operation. Actuation of hydraulic valves and control levers eccentric cams are example uses of these standard parts.

  • GN 150 Split Hubs (Steel)
  • GN 150.5 Split Hubs (Stainless Steel)
  • GN 919 Hubs with Eccentrical Cam (Sintered Steel)
