708.1-M5-55-A-ST GN 708.1-ST Steel

708.1-M5-55-A-ST

GN 708.1-ST Steel

Steel / Stainless Steel, with Rubber Thrust Pad
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 708.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 708.1-M5-55-A-ST
d1
M 5
l
55
d2
10
d3
9
h
11
m
2.7
r
8
11

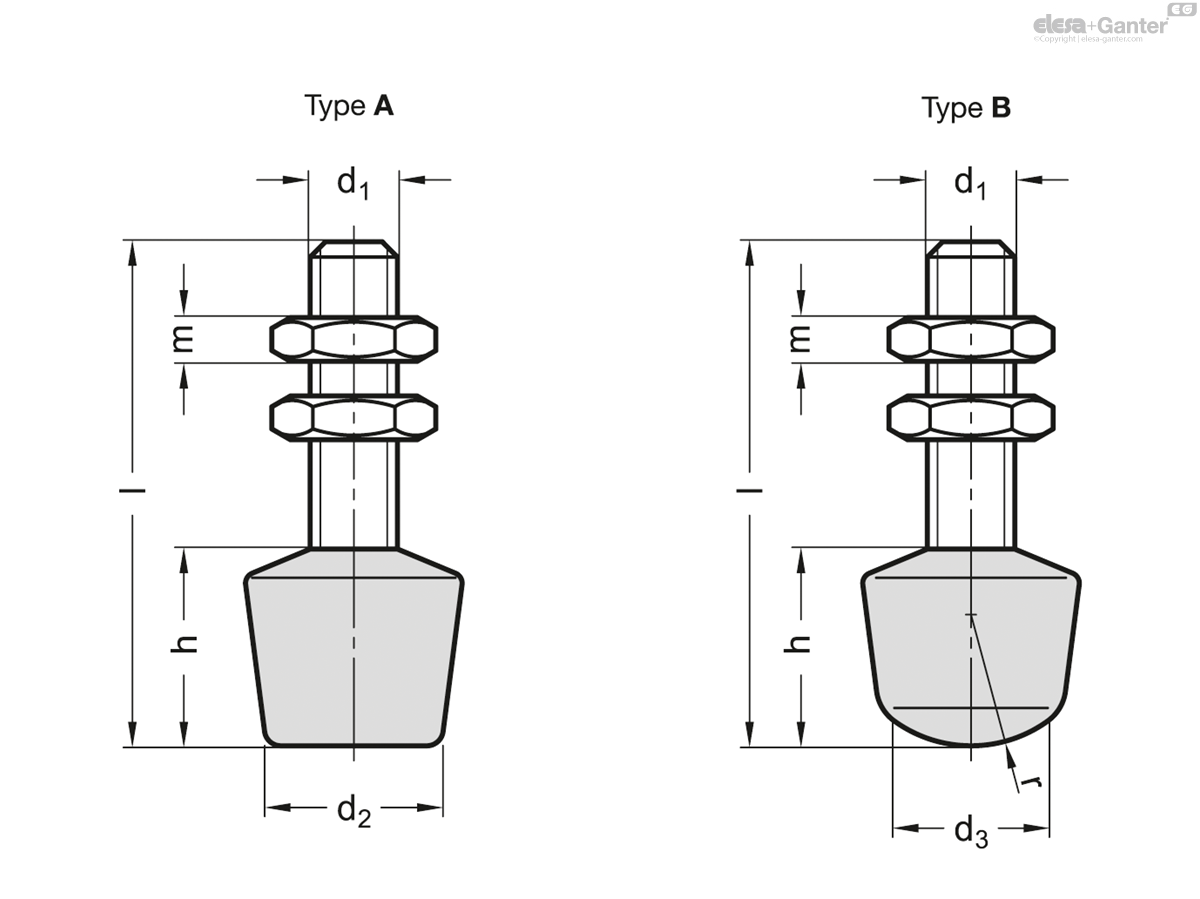

708.1-M5-55-A-ST drawing

Types

  • Type A: Flat pressure area
  • Type B: Rounded pressure area

Screw

  • Steel ST

Zinc plated, blue passivated

  • Stainless steel AISI 304 NI

Hex nuts ISO 4035

  • Steel zinc plated, blue passivated
  • Stainless steel AISI 304

Thrust pad

Rubber, Neoprene (CR)

  • 85 Shore A ≈
  • Vulcanized
  • Black

The two hex nuts are included parts of the order.
