820.2-75-MFC
GN 820.2 Steel
In stock All sizes and variants of GN 820.2
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

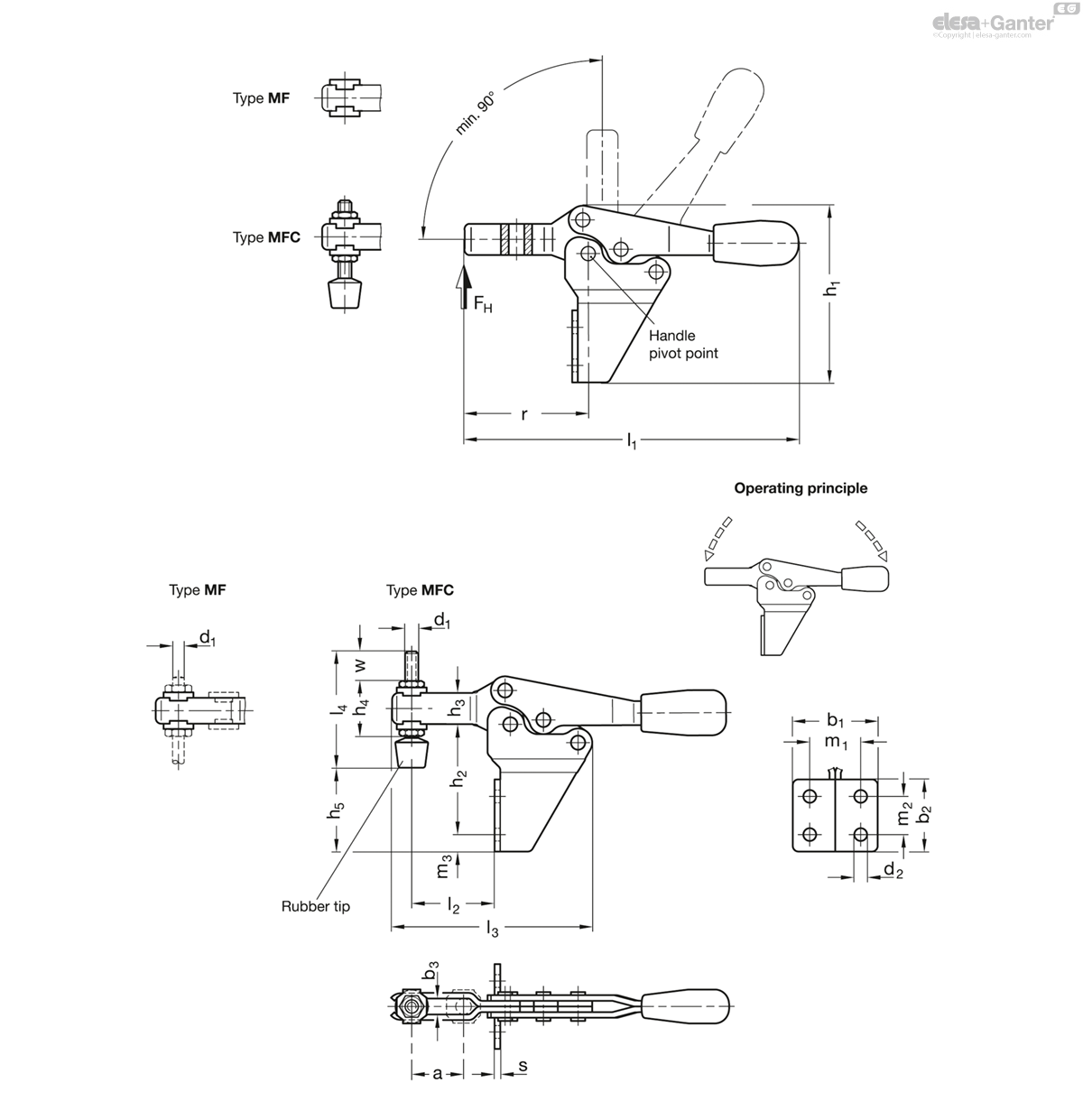

Technical data
- Catalogue
- GN 820.2-75-MFC
- Size
- 75
- Fh in N
- 900
- a ≈
- 20
- b1
- 30
- b2
- 25.5
- b3
- 5.5
- d1
- M 5
- d2
- 4.5
- h1
- 62
- h2
- 39
- h3
- 11
- h4
- 19
- h5 max.
- 30
- l1
- 118
- l2
- 30
- l3
- 72
- l4
- 45
- m1
- 18
- m2
- 13.5
- m3
- 6
- r
- 42.5
- s
- 2
- w
- 15
- 120
Types
- Type MF: U-bar version, with two flanged washers
- Type MFC: U-bar version, with two flanged washers and GN 708.1 spindle assembly
Version in Steel
- Case-hardened Steel C10, zinc plated, blue passivated
- Bearing pins tempered
- Bearing rivets (for size 355 and up), case-hardened
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
- Steel, zinc plated
- Rubber tip 85 Shore A
Version in Stainless Steel NI
Stainless Steel AISI 304
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
Spindle assembly GN 708.1, Type A
- Stainless Steel AISI 304
- Rubber tip 85 Shore A
GN 820.2 horizontal acting toggle clamps work according to the toggle principle: lever and clamping bar move in the opposite direction.
They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point.
Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type MF) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MFC.
- Spindle assemblies
- GN 801 clamp mounts for toggle clamps (for Type MF)
