70.1-20-WS GN 70.1 Adhesive Disks

70.1-20-WS

GN 70.1 Adhesive Disks

Self-Adhesive, for Retaining Magnets
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 70.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 70.1-20-WS
d
20
s1
2
s2
1
3

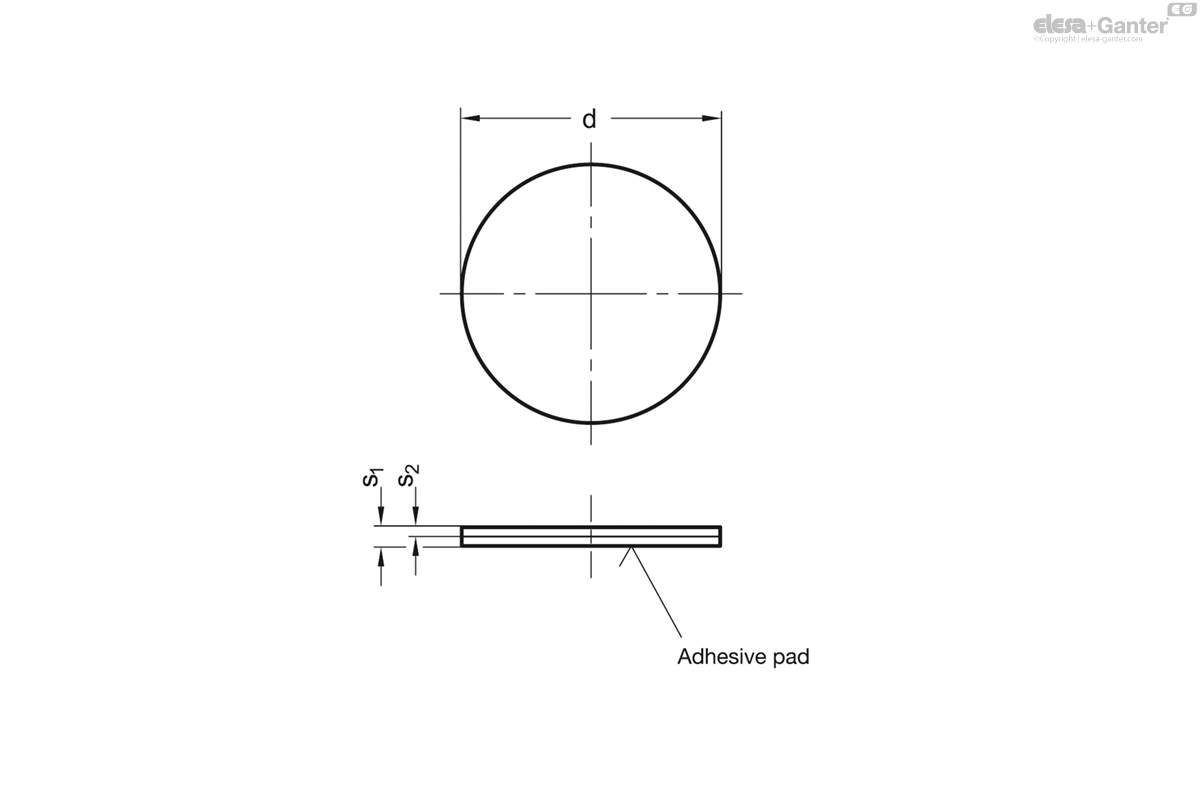

70.1-20-WS drawing

Steel

  • Zinc plated, blue passivated ZB
  • Zinc plated, blue passivated, white laquered WS

Adhesive pad

Scotch-Mount TM 4032

  • Doubled-sided
  • With polyurethane foam backing

Adhesive disks GN 70.1 are used as counter piece for retaining magnets if a magnet is to be used on a non-magnetic surface, for instance.

After pulling off the protective film from the adhesive pad at the back, they can be attached to any suitable and clean surfaces.
