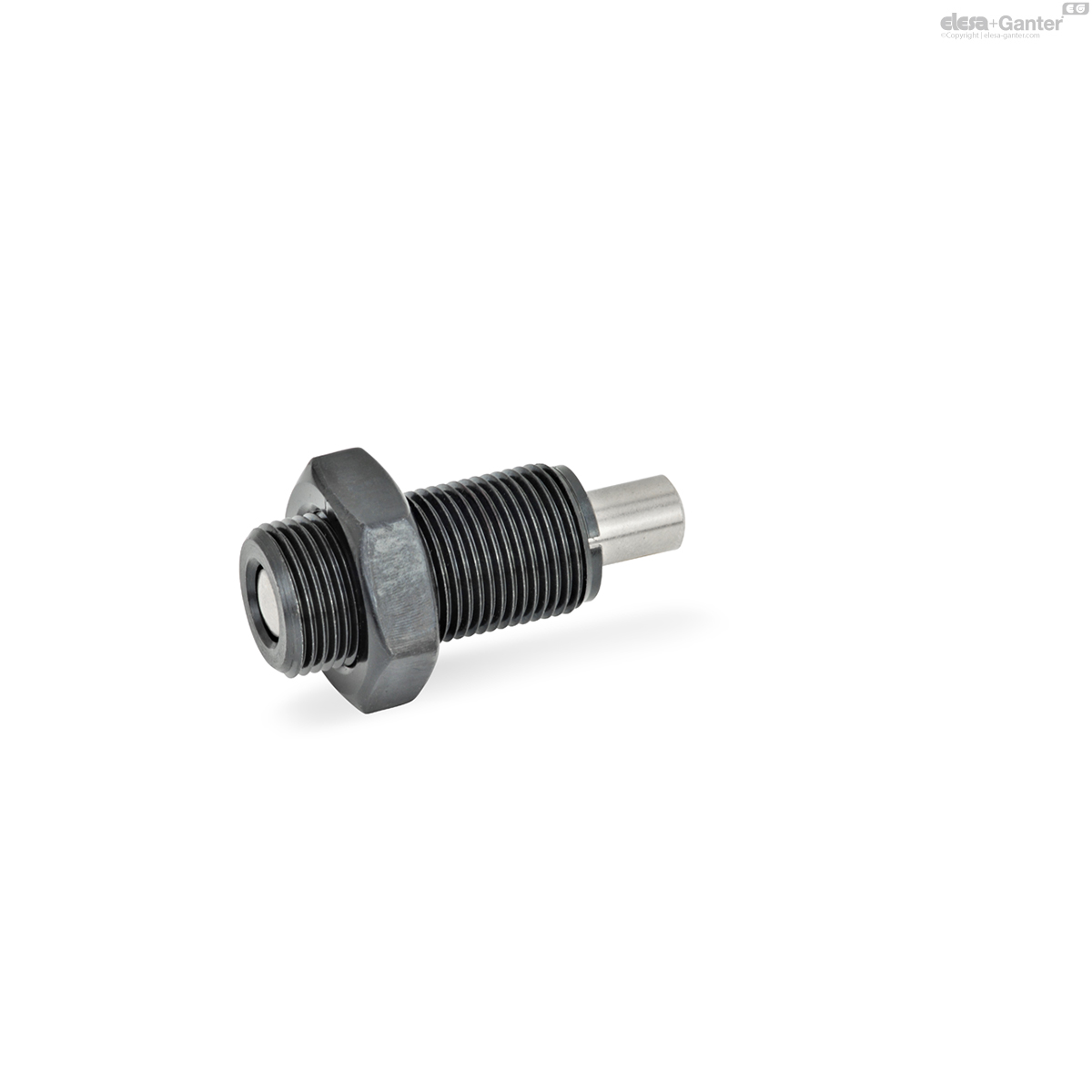

313-5-DK-2-ST GN 313 Spring bolts, Steel

313-5-DK-2-ST

GN 313 Spring bolts, Steel

Steel / Stainless Steel, Pin retracted in normal position
  • INOX
  • RoHS

Eta: 1-2 weeks All sizes and variants of GN 313

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 313-5-DK-2-ST
d1 Pin -0.02/-0.05 Bore H7
5
d2
M 10 x 1
d3
M 3
d4
16
l1
6
l2
22
l3 ≈
42
l4 ≈
29
t min.
7
Spring load in N ≈
initial
8
Spring load in N ≈
end
20
Code no.
Screw driver
GN 613.1-5
13
313-5-DK-2-ST drawing

Types

  • Type A: with knob, without lock nut
  • Type AK: with knob, with lock nut
  • Type D: without knob, without lock nut
  • Type DK: without knob, with lock nut

Identification no.

  • Version 1: Plunger without internal thread
  • Version 2: Plunger with internal thread

Guide (Threaded socket)

Steel ST

blackened

Guide (Threaded socket)

Stainless Steel AISI 303 NI

Pin

Stainless Steel

  • AISI 303
  • chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • not removable

The pin of the spring bolts GN 313 does not protrude in the inoperative position.

It can be operated manually or in Type D and DK mechanically (pneumatic cylinder, cam plate, etc.) when it will protrude only as long as it is operated.

Using the internal thread at identification 2 on the pressure side, special pressure bolts or a rod arrangement can be operated, for instance.
