179.1-10-15 GN 179.1 Guide bushings

179.1-10-15

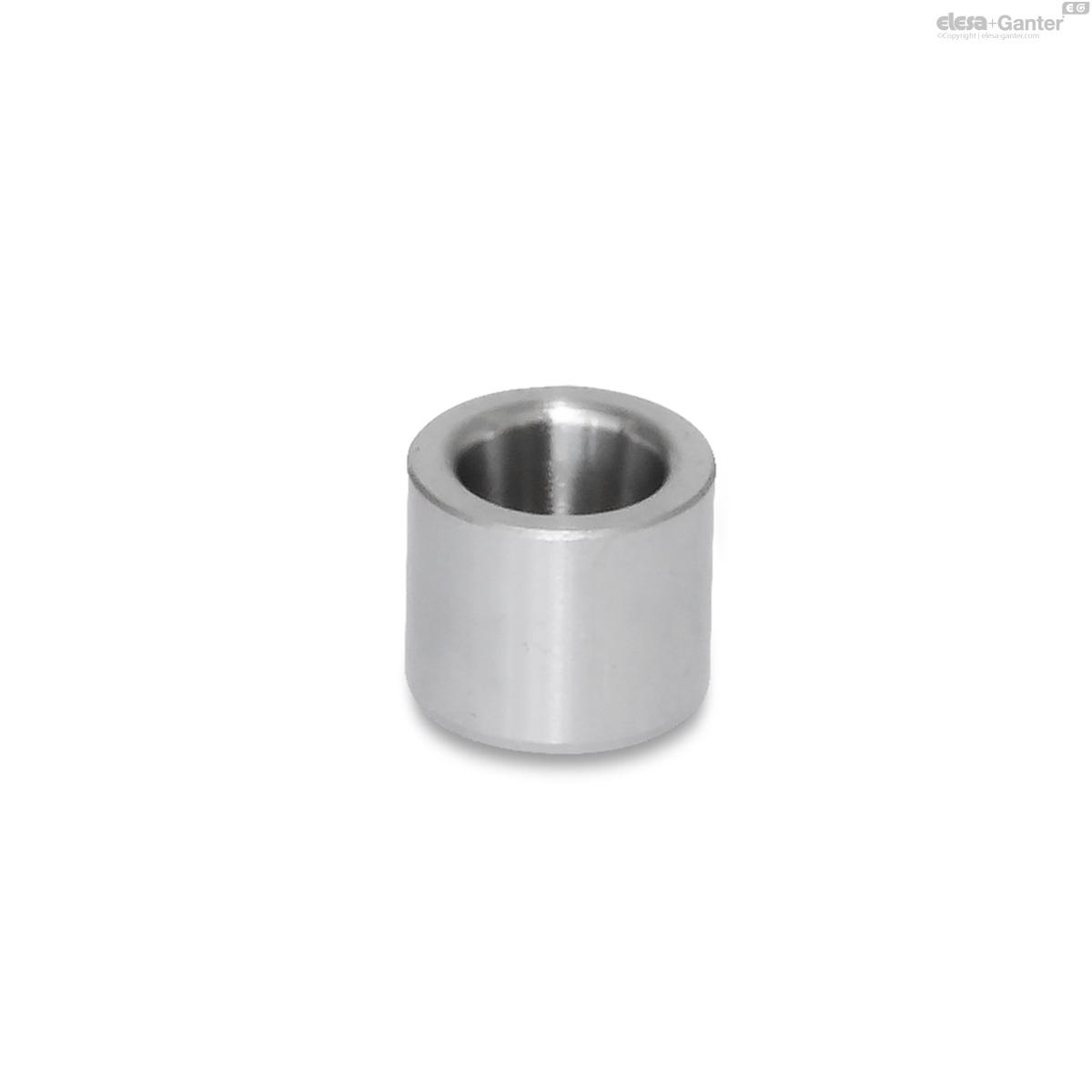

GN 179.1 Guide bushings

without collar / with conical bore, for indexing plungers GN 817.5
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 179.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 179.1-10-15
d1
10
d2 n6
15
l
12
12

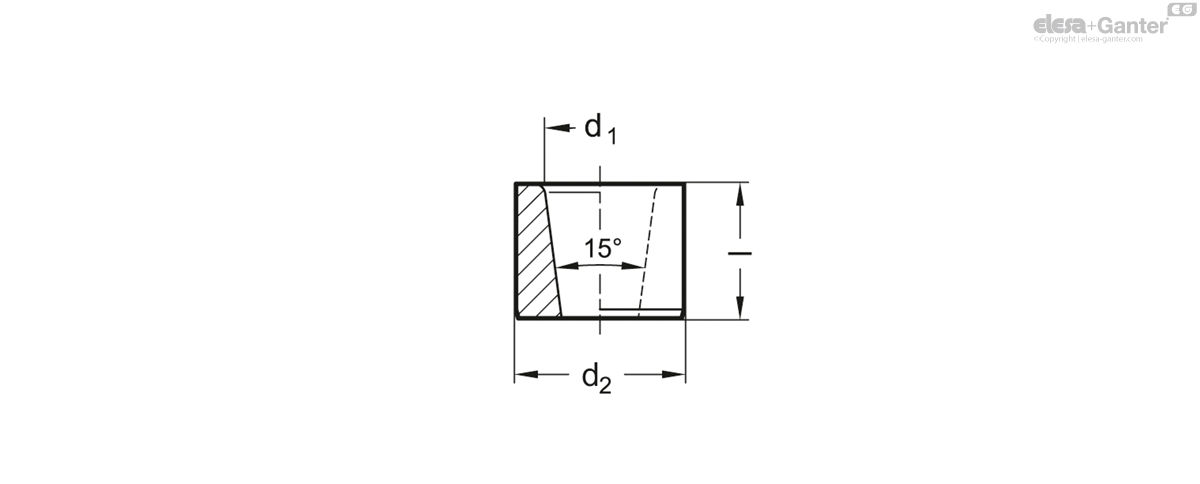

179.1-10-15 drawing

Steel

hardened (HRC 60 ±2)

Guide bushings GN 179.1 with conical bore will be used for the latch bore of indexing plungers  GN 817.5.
