172.1-6-10 GN 172.1 Guide bushings

172.1-6-10

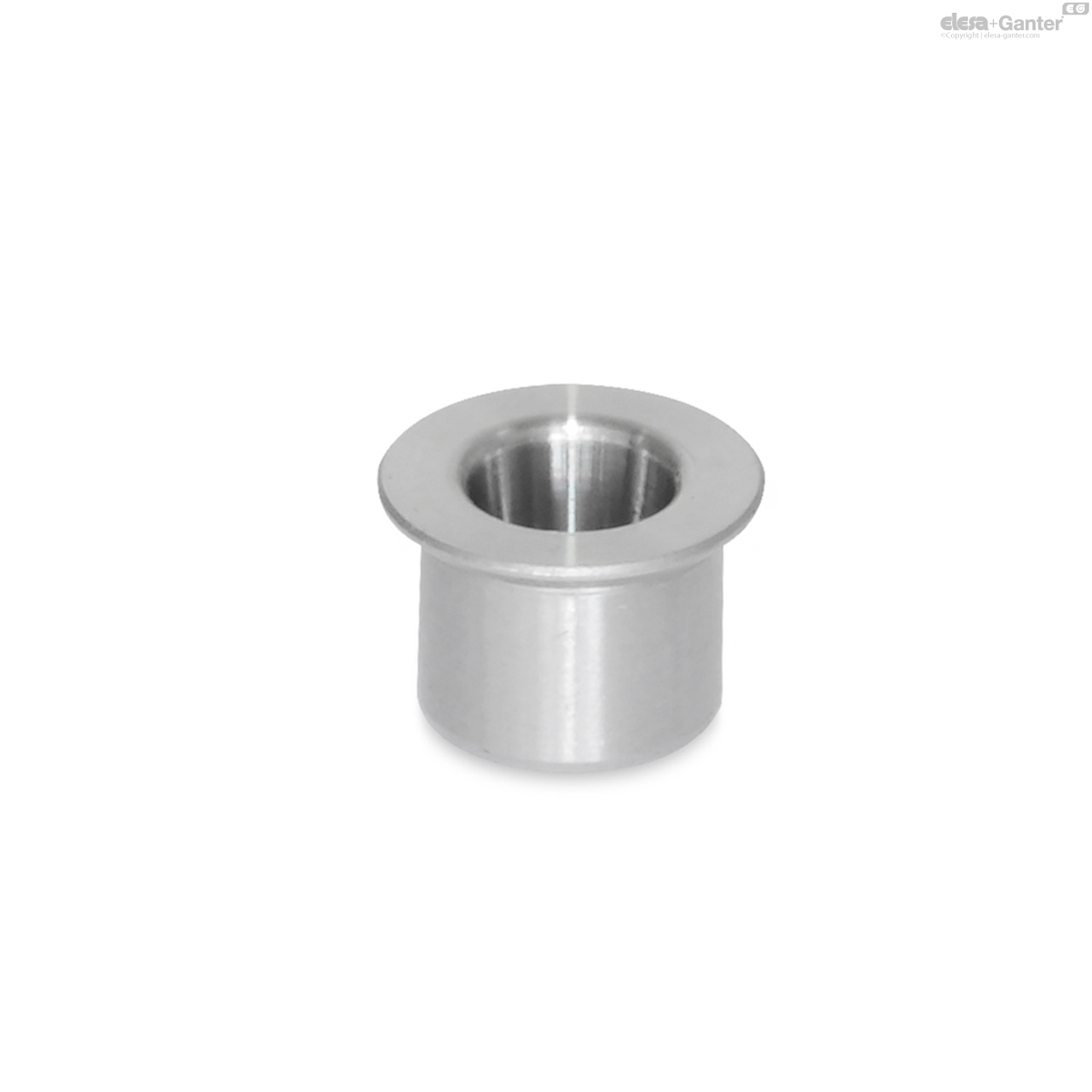

GN 172.1 Guide bushings

with collar / with conical bore, for indexing plungers GN 817.5
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 172.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 172.1-6-10
d1
6
d2 n6
10
d3
12.5
d4
13.5
l
8
4
172.1-6-10 drawing

Steel

hardened (HRC 60 ±2)

Guide bushings GN 172.1 with conical bore will be used for the latch bore of indexing plungers GN 817.5 .
