GN 1024 Steel
Steel / Stainless Steel
Eta: 1-2 weeks All sizes and variants of GN 1024
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 1024-ST-5-D
- d1
- 5
- d2
- 18 ... 30
- d3
- 5.5
- h
- 35
- l1
- 110
- l2
- 70
- l3
- 40
- l4
- 73
- s
- 13.5
- Load in N ≈
Mounting - 100
- Load in N ≈
Dismantling - 95
- Load in N ≈
for bolt Ø - 25
- 53
Types
- Type E: with single winding
- Type D: with double winding
Version in Steel ST
zinc plated, blue passivated
Version in Stainless Steel NI
AISI 301

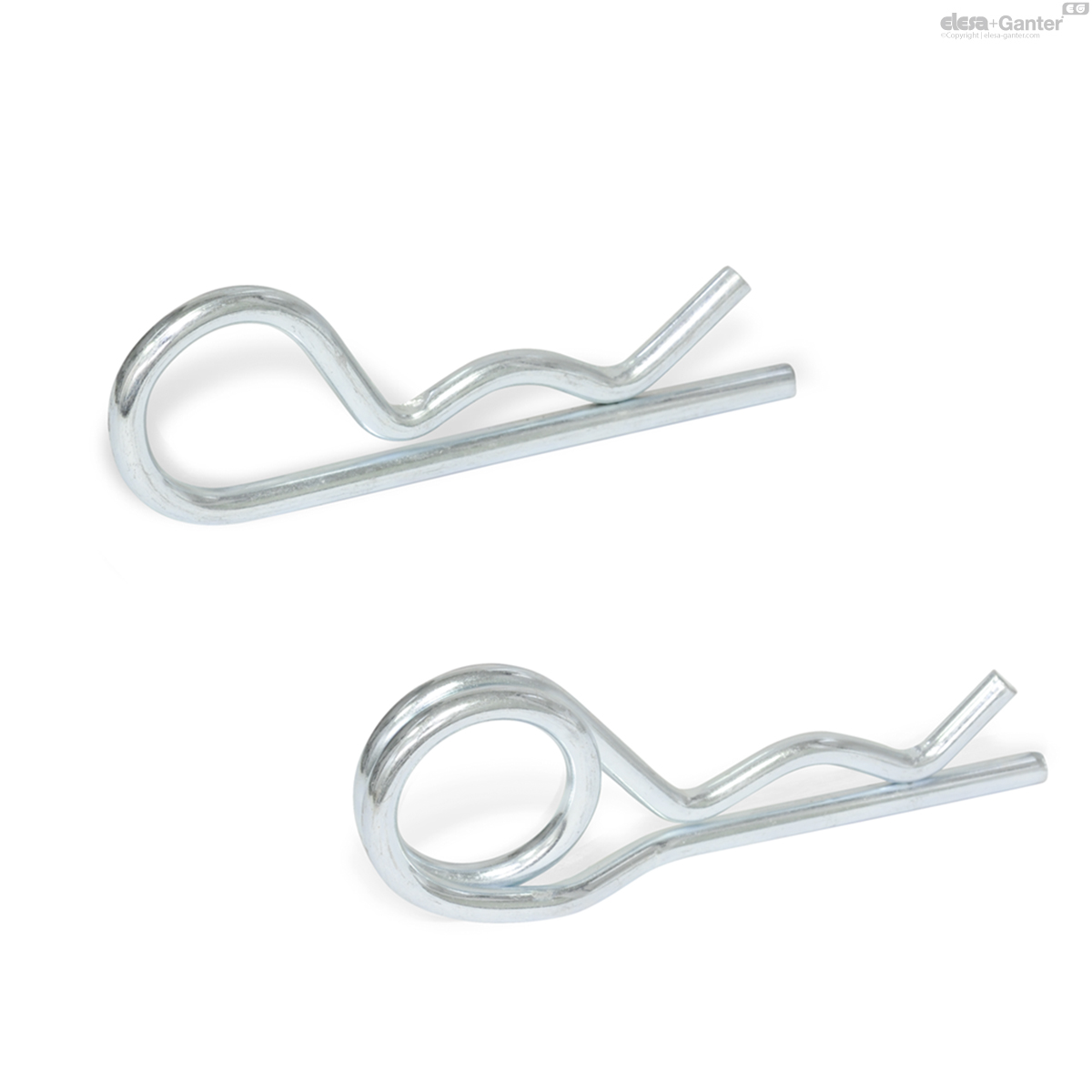

Spring cotter pins GN 1024 are used for the axial fixing of bolts and axes and as distortion guard, e.g. for crown nuts DIN 935.
Owing to their double winding, spring cotter pins of Type D have a flatter spring characteristic and are therefore easier to install. Also, a retaining rope inclding a key ring can be attached to the double winding to safeguard the spring cotter pins against loss.
