817.1-10-12-B-RT GN 817.1 Indexing plungers

817.1-10-12-B-RT

GN 817.1 Indexing plungers

with flange for surface mounting, with or without rest position
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 817.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 817.1-10-12-B-RT
d1 Pin -0.02/-0.05
Bore
+0.10/+0.03
10
l1
12
b
16
d2
28
d3
5.3
d4
38
k
26
l2
58
l3
26
l4
8
Spring load in N ≈
initial
9.5
Spring load in N ≈
end
38
71

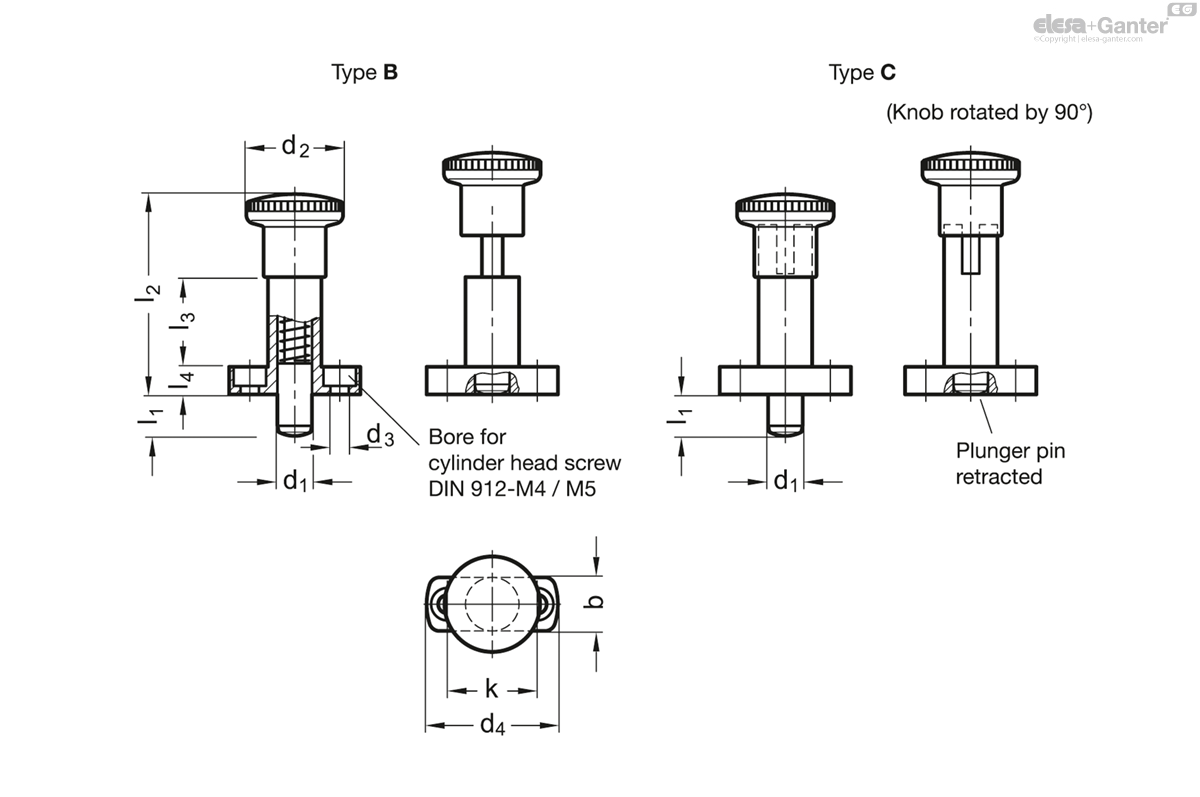

817.1-10-12-B-RT drawing

Types

  • Type B: without rest position
  • Type C: with rest position

Guide

Zinc die casting

plastic coated

black, matt textured finish

Pin

Stainless Steel AISI 303

  • chemically nickel plated

Knob

Plastic (Polyamide PA)

  • black, matt
  • red RT RAL 3000, add RT on order code
  • not removable

Indexing plungers GN 817.1 (Type C) are used for such applications wehere the plunger has to stay in its retracted position. To achieve this, the knob is rotated 90° degrees after being retracted. A notch keeps the plunger in this position.

  • Indexing plungers with T-Handle
