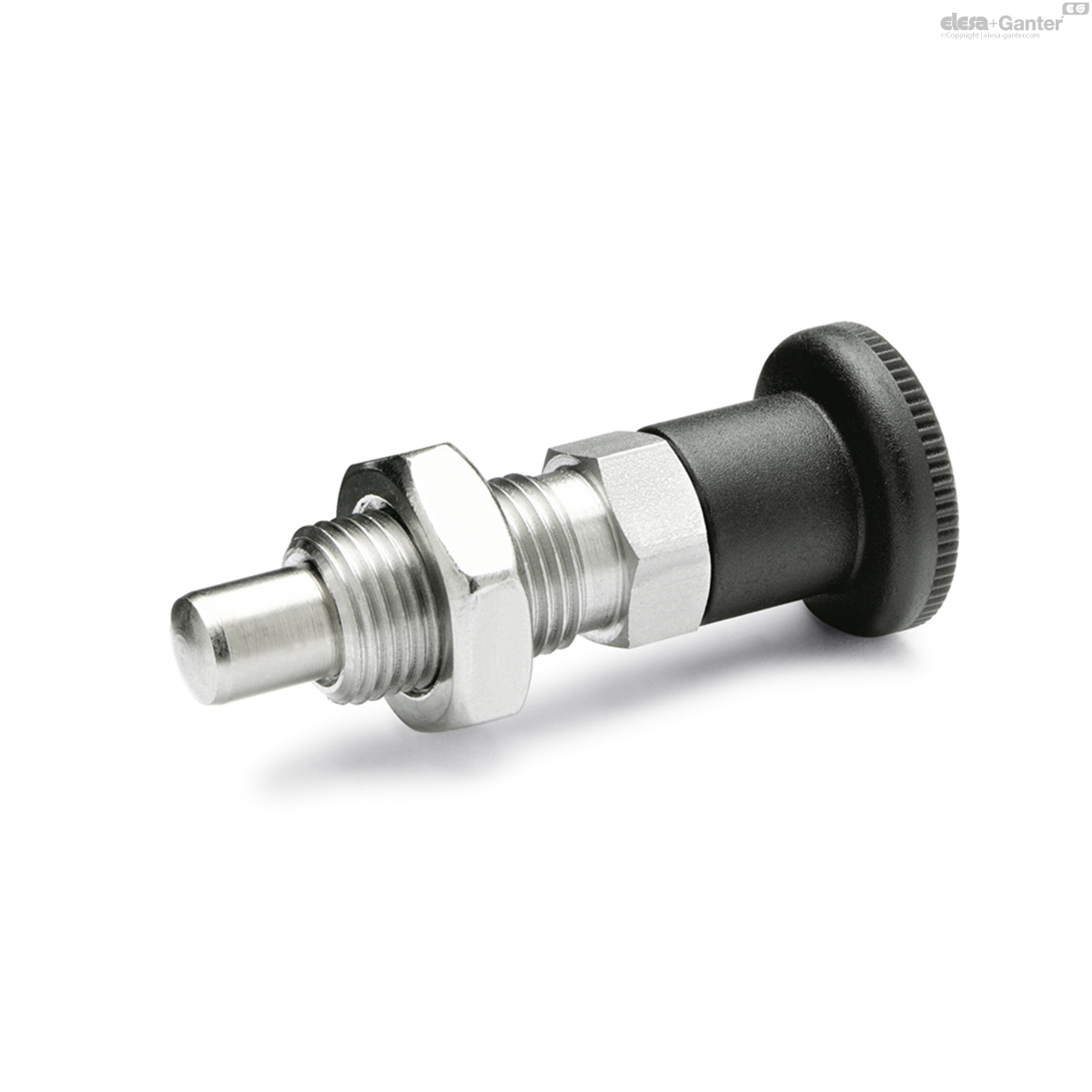

817-6-6-BK-NI GN 817-NI Stainless Steel, with plastic knob

817-6-6-BK-NI

GN 817-NI Stainless Steel, with plastic knob

Steel / Stainless Steel, with or without rest position
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 817

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 817-6-6-BK-NI
d1 Pin -0.02/-0.05 Bore H7
6
l1
6
d2
M 12 x 1.5
d3
23
d4
M 5
d5
9
k
20
l2
48
l3
22
l4
6
l5
7
l6
3.5
A/F
14
Spring load
in N≈ initial
6.5
Spring load
in N≈ end
19
38
817-6-6-BK-NI drawing

Types

  • Type B: without rest position, without lock nut
  • Type BK: without rest position, with lock nut
  • Type C: with rest position, without lock nut
  • Type CK: with rest position, with lock nut
  • Type G: with threaded rod, without lock nut
  • Type GK: with threaded rod, with lock nut

Steel

  • blackened
  • Pin hardened

Stainless Steel AISI 303 NI

Pin chemically nickel plated

Knob Plastic (Polyamide PA)

  • black, matt
  • red RT RAL 3000 (add RT on order code)
  • not removable

Indexing plungers GN 817 with rest position (Type C / CK) are used for such applications where the plunger has to stay in its rectracted position.

To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
