844-550-ASS

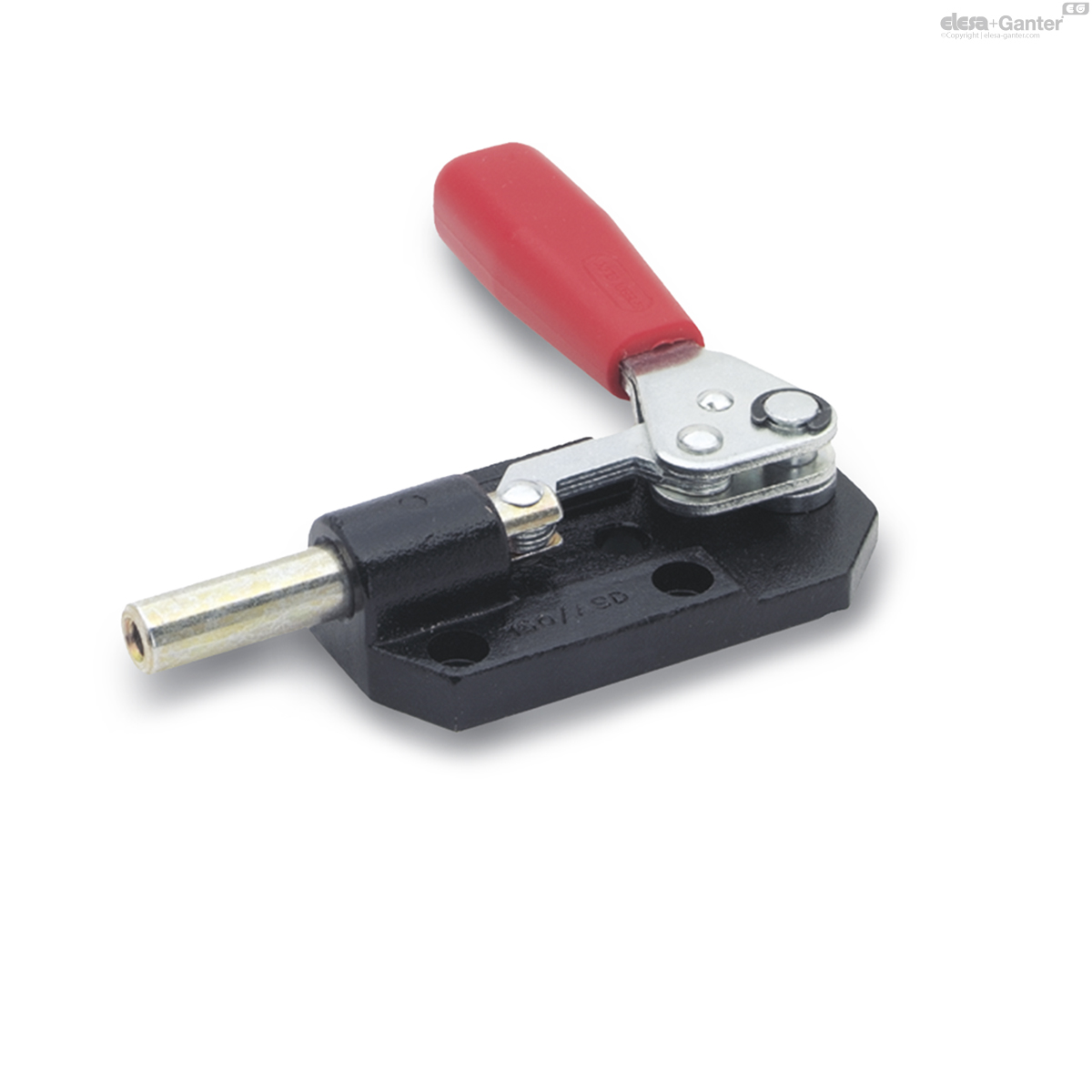

GN 844 Heavy duty push-pull type toggle clamps
for push-pull clamping
Eta: 1-2 weeks All sizes and variants of GN 844
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 844-550-ASS
- Size
- 550
- FH in N
- 4500
- a
- 20
- b
- 32
- d1
- 14
- d2
- M 8
- d3
- 7
- h1 ≈
- 113
- h2
- 55
- l1 ≈
- 165
- l2 ≈
- 153
- l3 ≈
- 42
- m1
- 35
- m2
- 41
- m3
- 15
- m4
- 41
- s
- 7
- t
- 16
- w
- 42
- 700
Types
- Type ASD: Clamping by turning handle counter-clockwise
- Type ASS: Clamping by turning handle clockwise
Body
Steel
- forged
- manganese phosphated
Parts in sheet metal
Case-hardened Steel C10
zinc plated, blue passivated
Plunger
Steel St 37
zinc plated, blue passivated
All moving parts
lubricated with special grease
Hand grip
High quality, oil resistant red plastic
GN 844 heavy duty push-pull type toggle clamps are known for their low height in all clamping positions. They can be used for very high holding forces thanks to their massive and sturdy body.
