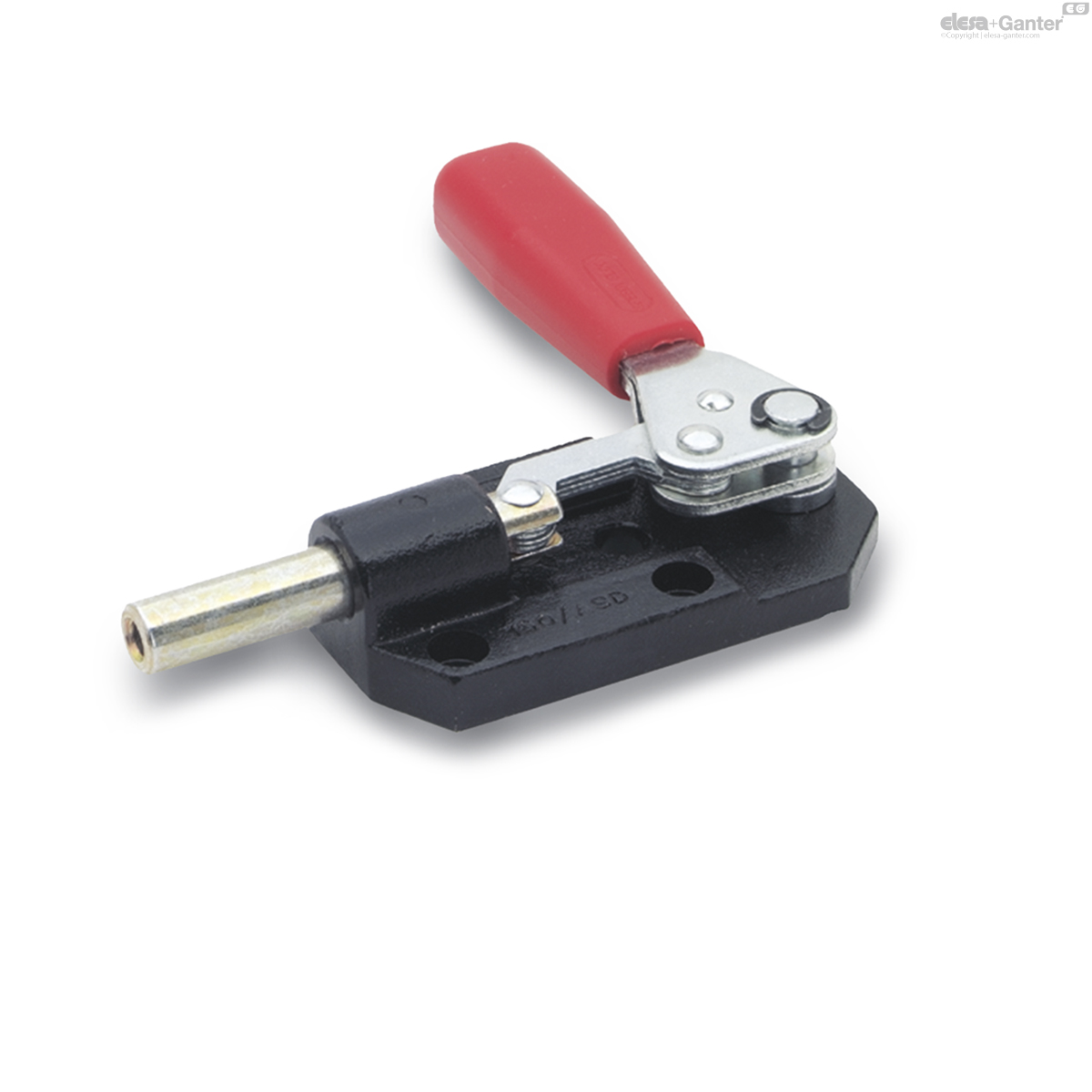

844-550-ASD GN 844 Heavy duty push-pull type toggle clamps

844-550-ASD

GN 844 Heavy duty push-pull type toggle clamps

for push-pull clamping
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Eta: 1-2 weeks All sizes and variants of GN 844

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 844-550-ASD
Size
550
FH in N
4500
a
20
b
32
d1
14
d2
M 8
d3
7
h1 ≈
113
h2
55
l1 ≈
165
l2 ≈
153
l3 ≈
42
m1
35
m2
41
m3
15
m4
41
s
7
t
16
w
42
700
844-550-ASD drawing

Types

  • Type ASD: Clamping by turning handle counter-clockwise
  • Type ASS: Clamping by turning handle clockwise

Body

Steel

  • forged
  • manganese phosphated

Parts in sheet metal

Case-hardened Steel C10

zinc plated, blue passivated

Plunger

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Hand grip

High quality, oil resistant red plastic

GN 844 heavy duty push-pull type toggle clamps are known for their low height in all clamping positions. They can be used for very high holding forces thanks to their massive and sturdy body.
