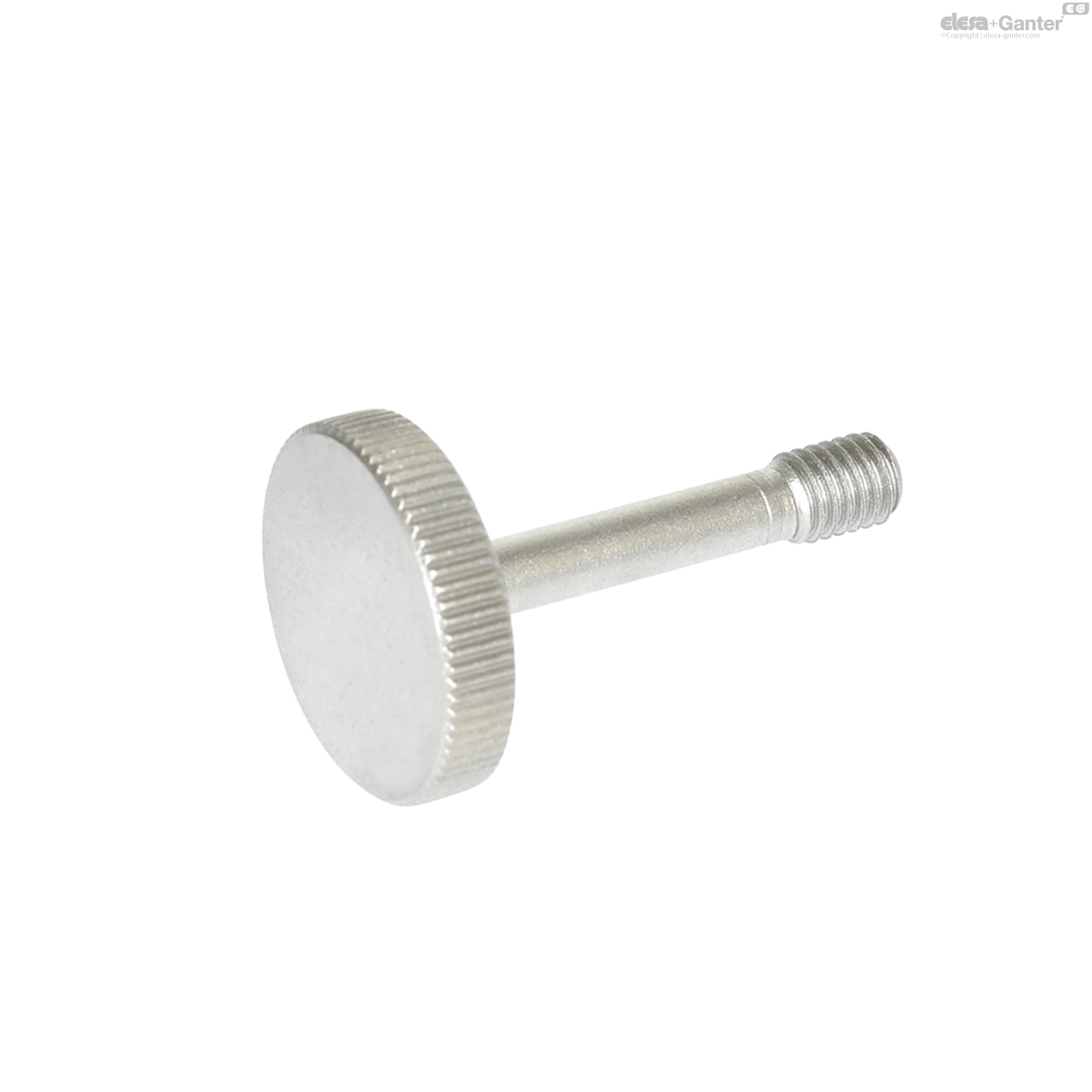

653.2-M4-15-NI GN 653.2-NI Stainless Steel

653.2-M4-15-NI

GN 653.2-NI Stainless Steel

Steel / Stainless Steel, with a thin shan for loss-prevention
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 653.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 653.2-M4-15-NI
d1
M4
l1
15
a1
2-4
a2
4-8
a3
8-10
d2
16
d3
8
d4 -0.2
3.2
d5
4.5
h
5.5
k
3.5
l2
5
l3
2
6

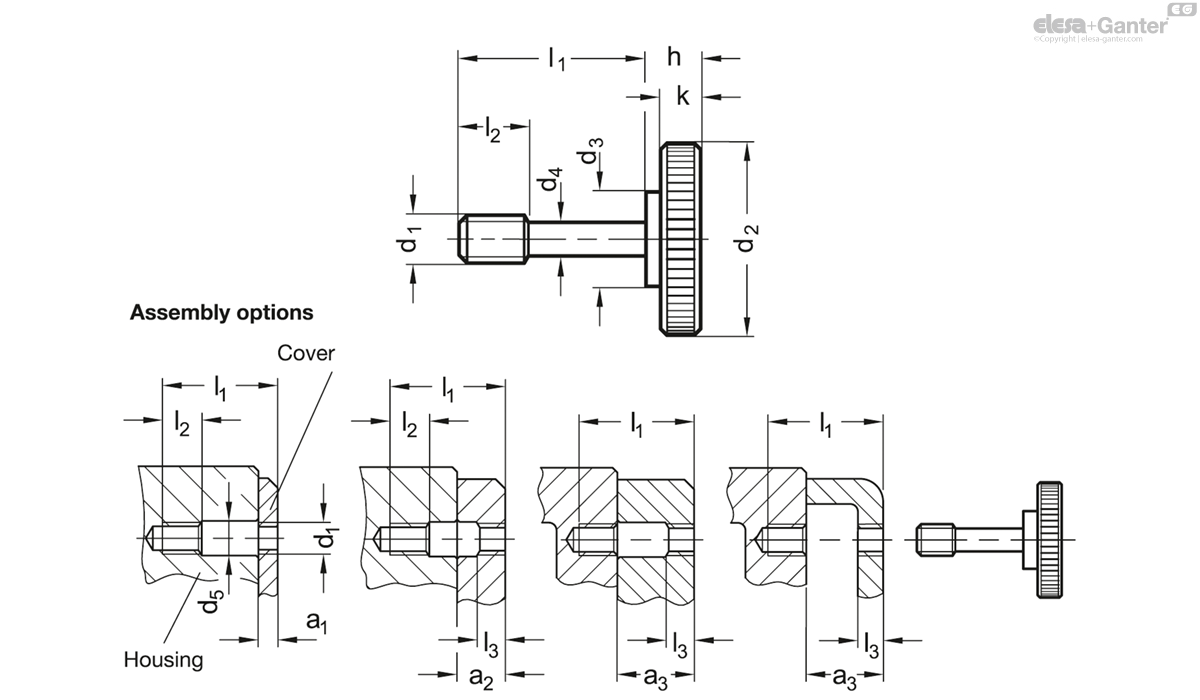

653.2-M4-15-NI drawing

Version in Steel ST

  • Tensile strength class 5
  • visible face fine turned
  • black oxide finish

Version in Stainless Steel AISI 303 NI

  • AISI 303
  • visible face fine turned
  • matt shot-blasted

Knurled screws GN 653.2 can be used for to prevent loss of the thumb screw, due to the d4 recessed portion of the stud.

When using, instead of a typical tapped and bore hole, it is necessary to provide tapped bores with a thread d1 on each of the two elements to be assembled. Additionally, a clearance bore of d5 on one or both sides must be cut.

Depending on the design and required clamping length a1 ... a3 of the component being attached, there are a number of assembly options as shown.
