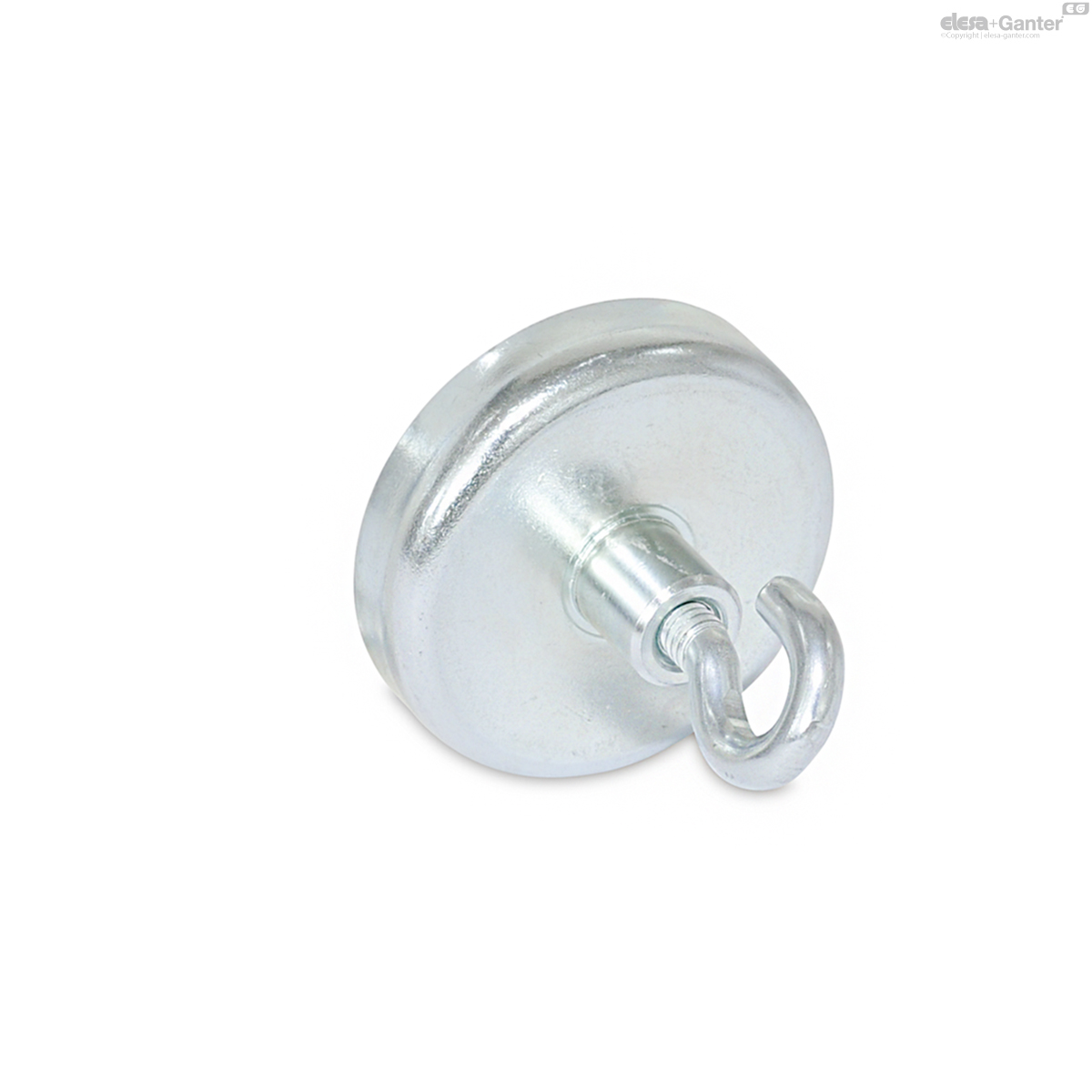

50.6-HF-50-A GN 50.6-A with hook

50.6-HF-50-A

GN 50.6-A with hook

Disk-Shaped, with Hook / with Eyelet
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 50.6

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 50.6-HF-50-A
d1
50
d2 ±1
13.5
d3
3.5
h1 ±2
32
h2
10
Nominal adhesive forces in N
220
109
50.6-HF-50-A drawing

Types

  • Type A: with hook
  • Type B: with eyelet

Housing / hook / eyelet

Steel, zinc plated

Material of the magnet:

Hard ferrite HF

Temperature resistant up to 200 °C

Retaining magnets GN 50.6 are combined with the steel housing and the plastic ring into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface.
