612.10-10-18-20-SW GN 612.10 Cam action indexing plungers

612.10-10-18-20-SW

GN 612.10 Cam action indexing plungers

with flange for surface mounting
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 612.10

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 612.10-10-18-20-SW
d1 Pin-0.05

Bore
+0.1/+0.05
10
l2
18
d2
20
h1
10
h2
4.5
k
32
l1 ≈
57
l3
12
l4
37
l5
45
s
20
Spring load
in N ≈
initial
21
Spring load
in N ≈
end
58
130

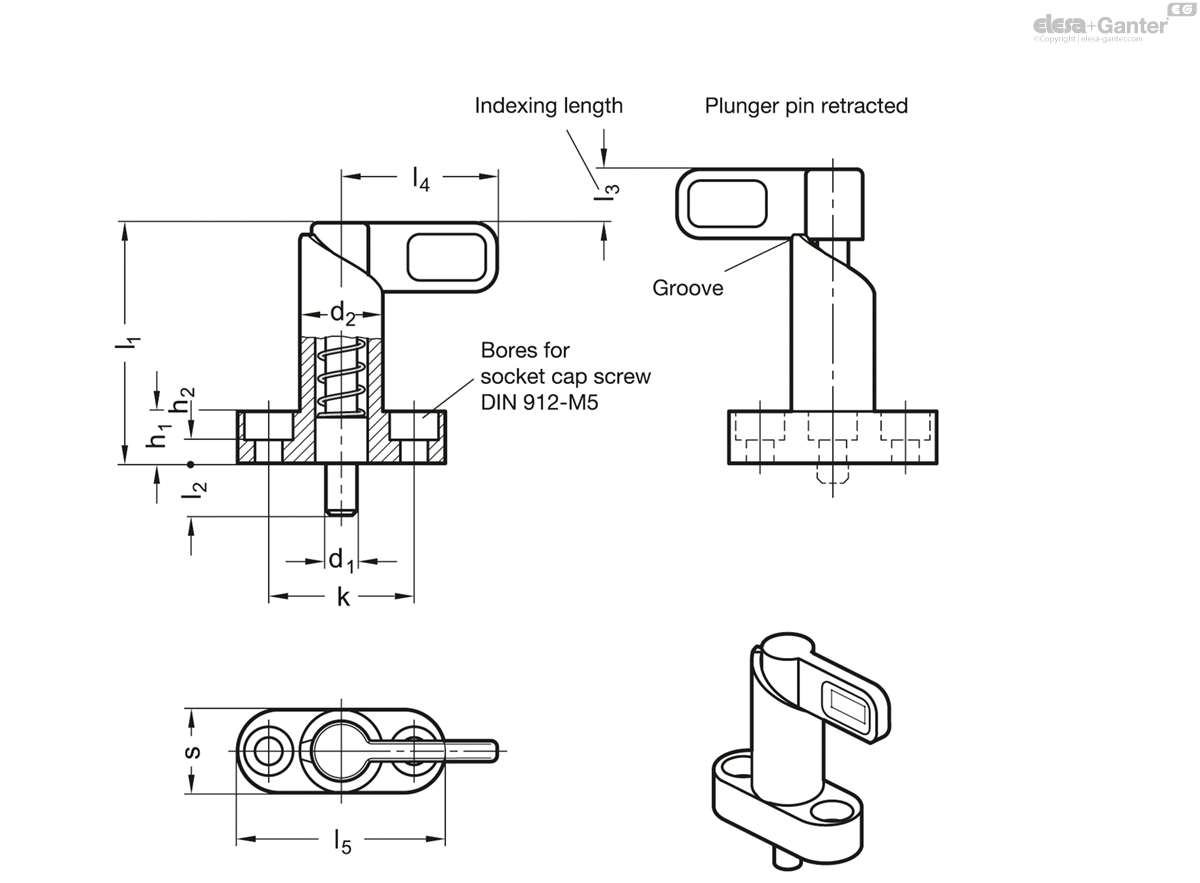

612.10-10-18-20-SW drawing

Guide

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

Pin

Steel

zinc plated, blue passivated

Lever

Plastic (Polyamide PA)

  • black, matt
  • not removable

Cam action indexing plungers GN 612.10 are used in cases where the plunger must not protrude all the time. By rotating the lever through 180° the plunger withdraws itself. The groove allows safe positioning.
