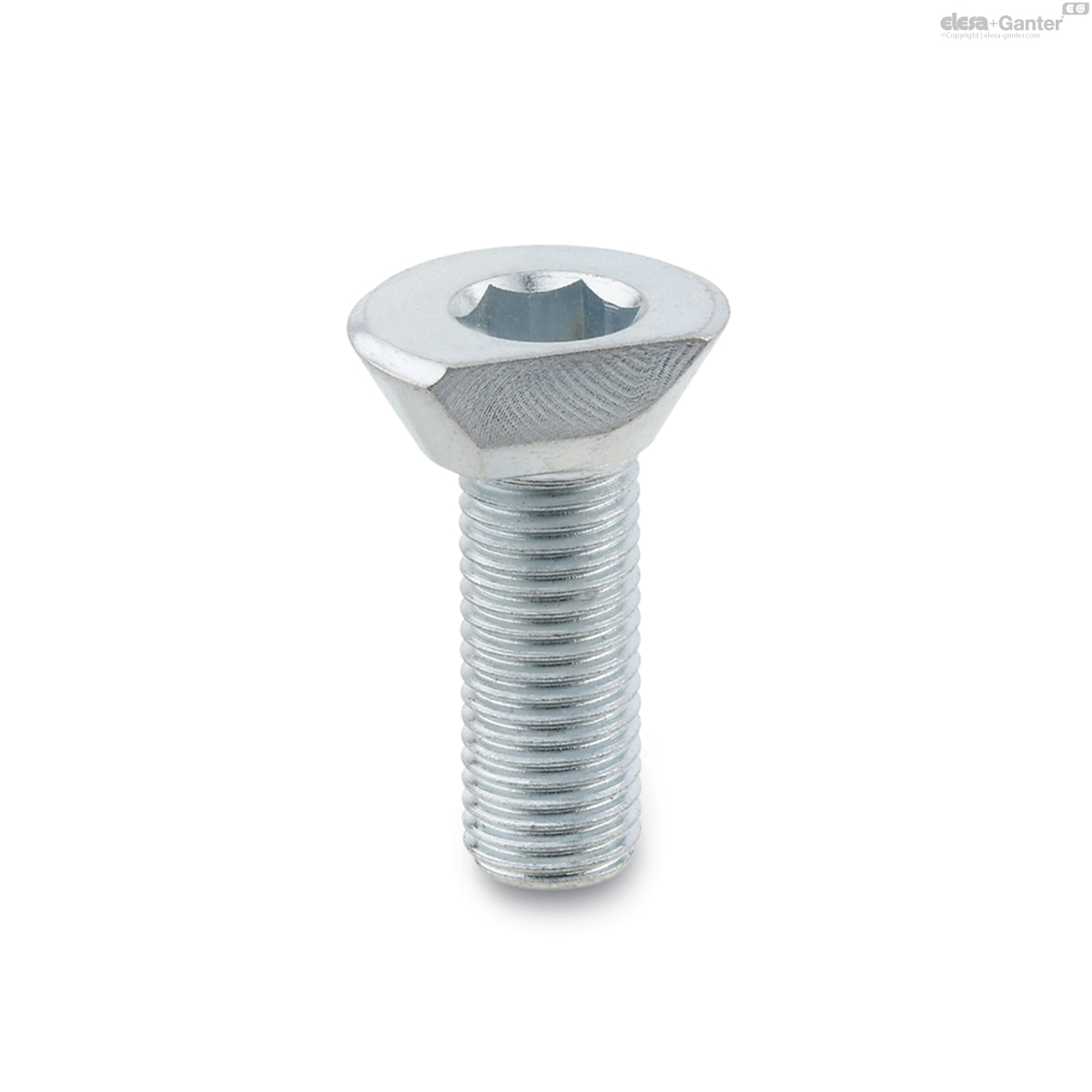

418.2-22-M10-20-R GN 418.2 Cam point screws

418.2-22-M10-20-R

GN 418.2 Cam point screws

  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 418.2

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 418.2-22-M10-20-R
d1 Nominal dimension
22
d1
22.2
d2
M 10
l
20
h1
7
h2
6.5
r1
9.4
r2
11.1
s1
2.16
s2
1.7
A/F
6
x ±0.2
8.3
z ±0.2
9.8
Max. tightening torque
in Nm
35
Max. clamping
force F in kN
4
2

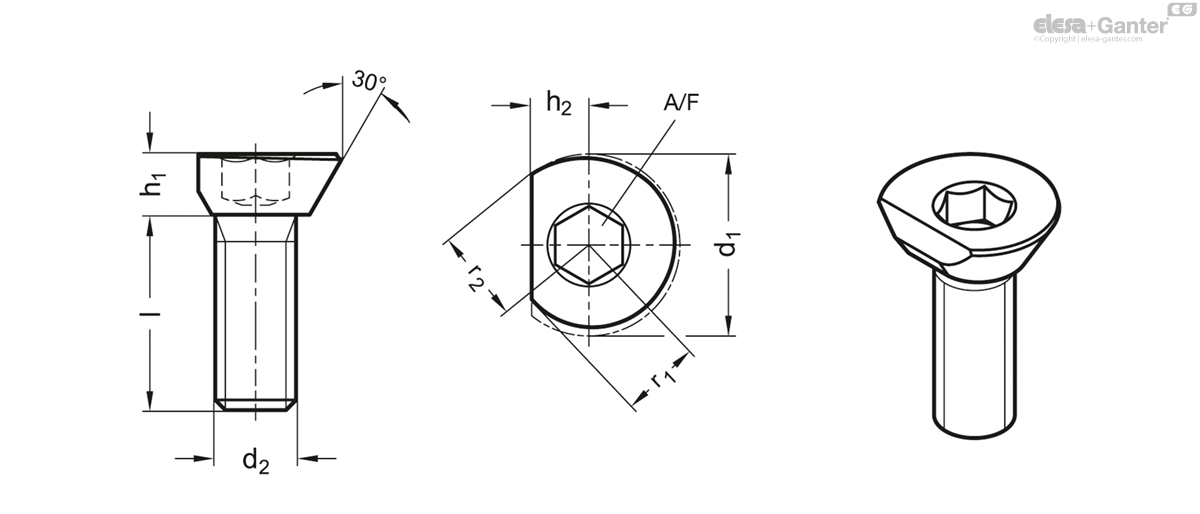

418.2-22-M10-20-R drawing

Type

Type R: Clamping by clockwise rotation

(d2 = right-hand thread)

Steel

  • case hardened HRC 56 ±1
  • Tensile strength class 8.8
  • zinc plated, blue passivated

Cam point screws GN 418.2 are sturdy and compact elements, requiring a minimum of installation space and offering ultimate convenience and ease in handling.

The clamping forces F given in the table refer to the maximum permitted tightening torque and the specified screw-in depth t.

Function

The head of the cam point screw has two cams: a radial clamping cam (with additional 30° taper) and an axial draw-down cam. The cam ensures that the clamping force is the same in any angular position. The cam is also self-locking.

Force components act on the clamping point which generate a draw-down effect and which, in addition to the friction, cause the workpiece to be pressed against a fixed stop. An additional draw-down effect is created by the thread and the 30° taper.

To ensure safe and secure clamping in every application, a right-hand version (with right-hand thread) and a left-hand version (with left-hand thread) is available.



Assembly instructions

  • Position the thread bore(s) as specified
  • Screw the cam point screw in to the desired height and place it with its flat side facing the workpiece (note the minimum screw-in depth t)
  • For clamping effect above the head taper, the minimum clamping height should be h2
  • A turn of approx. 135° is required for clamping
