GN 416.1 Locators
for spring latches GN 416
Eta: 1-2 weeks All sizes and variants of GN 416.1
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 416.1-6-38

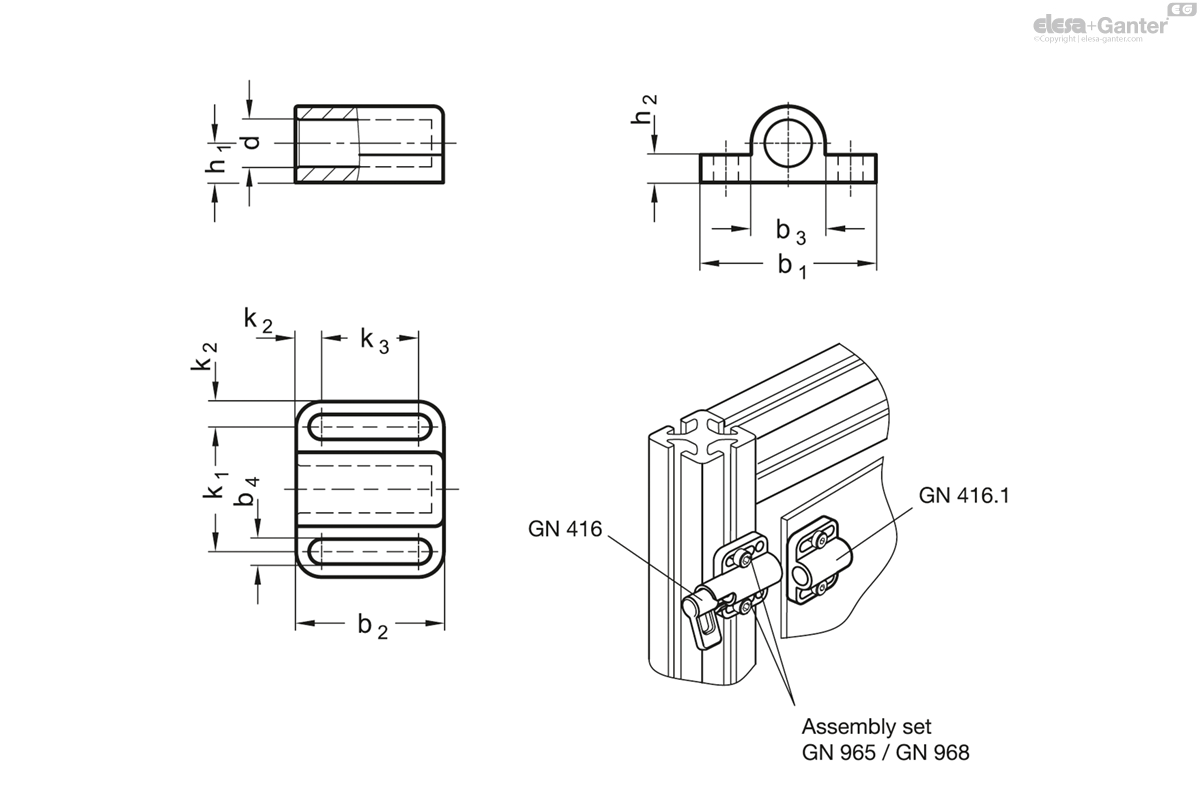

- d Nominal dimension
- 6
- d Actual dimension +0.15/-0.05
- 6.2
- b1
- 38
- b2
- 32
- b3
- 16
- b4
- 5.4
- h1
- 8.5
- h2
- 6
- k1
- 27
- k2
- 5.5
- k3
- 17
- 51
Zinc die casting
plastic coated
black, RAL 2005, textured finish
Locators GN 416.1 are matched to the spring latches GN 416 and are used to position the indexing pin.
