412-10-47-B-2 GN 412 Indexing plungers

412-10-47-B-2

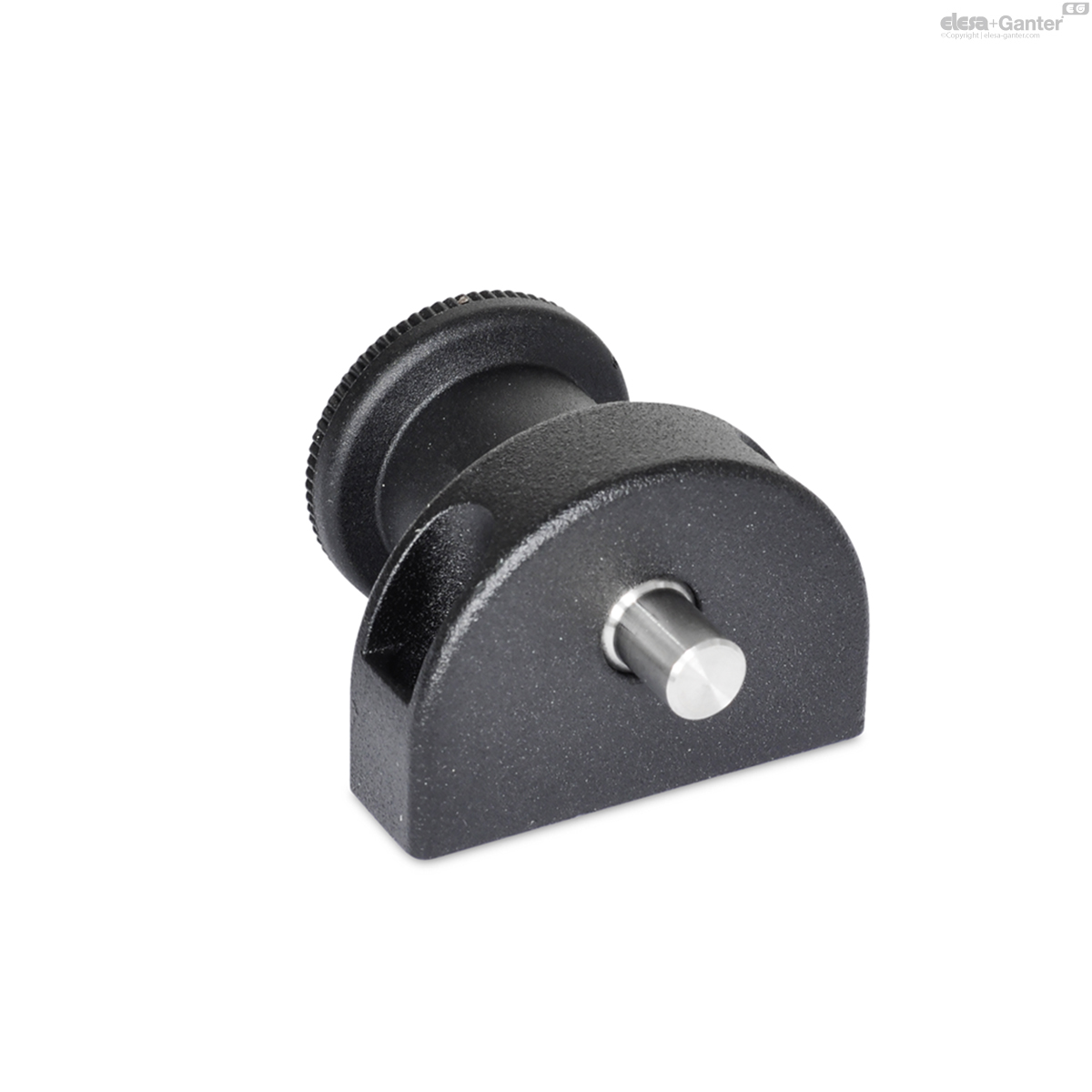

GN 412 Indexing plungers

with and without rest position
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Eta: 1-2 weeks All sizes and variants of GN 412

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 412-10-47-B-2
d1 Pin 0/-0.06
Bore
+0.05/+0.1
10
b
47
d3
M 5
d4
33
h
34
k
35
l1
39
l2 min.
10
l4
18
s
14
A/F
17
t
12
Spring load in N ≈
initial
9
Spring load in N ≈
end
35
154
412-10-47-B-2 drawing

Types

  • Type B: without rest position
  • Type C: with rest position

Identification no.

  • No. 1: Mounting from the front
  • No. 2: Mounting from the back

Guide

Zinc die casting

plastic coated

black, textured finish

Pin

Stainless Steel AISI 303

Spring

Stainless Steel AISI 301

Knob

Plastic (Polyamide PA)

  • black, matt finish
  • not removable

The outstanding feature of the indexing plungers GN 412 is their compact design. They are mounted either from the front with cylinder head screws or from the back through threads. In Type C, the knob can be turned by 30° after retracting the indexing pin, holding it in the 'retracted' position by means of the indexing lock.

The dimensions and connection measurements match the combination with GN 412.1 mounting blocks in connection with positioning bushings GN 412.2 or GN 412.3.
