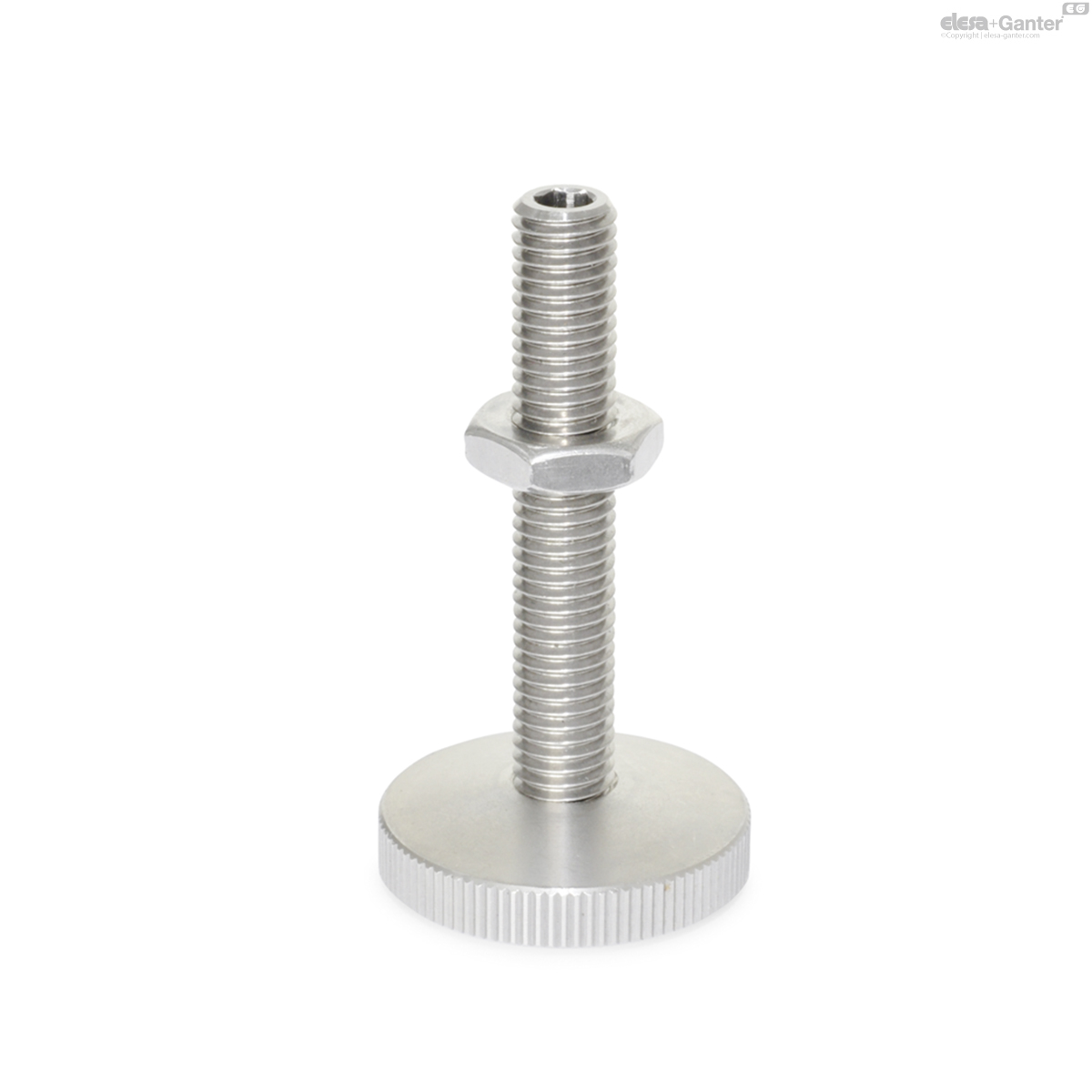

339-36-M10-45-KS-NI GN 339-NI Stainless Steel

339-36-M10-45-KS-NI

GN 339-NI Stainless Steel

Steel / Stainless Steel / Threaded stem, not adjustable
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of GN 339

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 339-36-M10-45-KS-NI
d1
36
d2
M 10
l1
45
l2 ≈
9
l3 ≈
6
l4
1
A/F
5
Static load
in kN
18
78

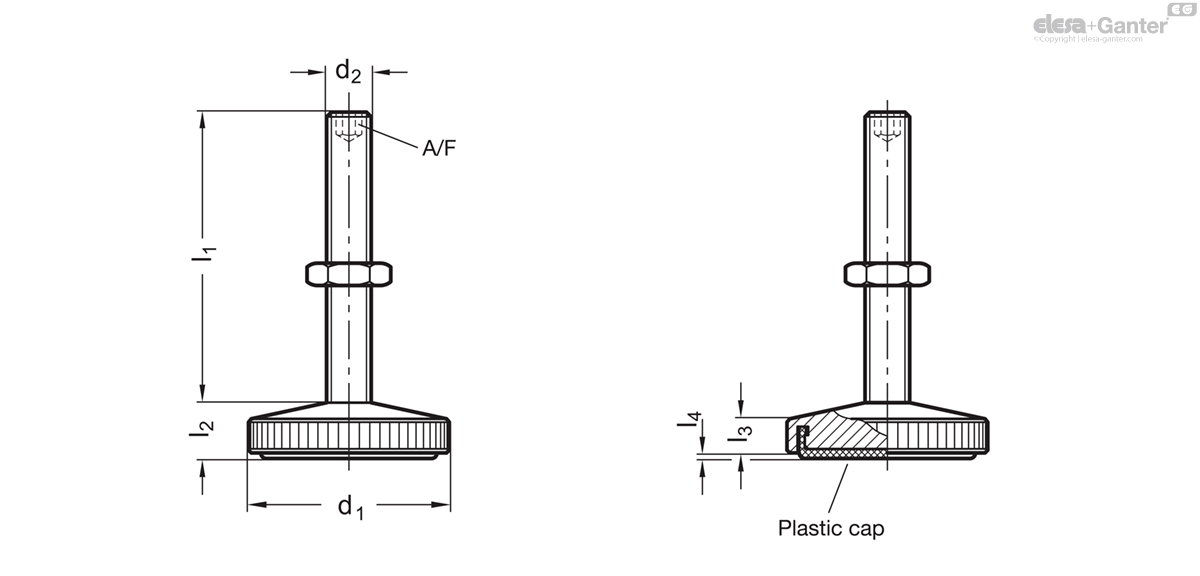

339-36-M10-45-KS-NI drawing

Types

  • Type KS: with plastic cap, gliding
  • Type KR: with plastic cap, non-gliding

Version in Steel ST

  • Tensile strength class 5.8
  • zinc plated, blue passivated
  • Hexagon nut ISO 4035, Steel zinc plated, blue passivated

Version in Stainless Steel NI

  • AISI 303
  • Hexagon nut ISO 4035, Stainless Steel AISI 304

Plastic caps:

Type KS

Technopolymer (Polyacetal POM)

white (natural colour) RAL 9001

Type KR

Elastomer (TPE)

73 shore A ≈, black

Levelling mount GN 339 are used for applications in cases where no jointed link is required between foot and adjusting screw.

For this reason they offer the advantage of reduced height.

The gliding and/or the non-gliding protective cap is safely fixed in the foot.
