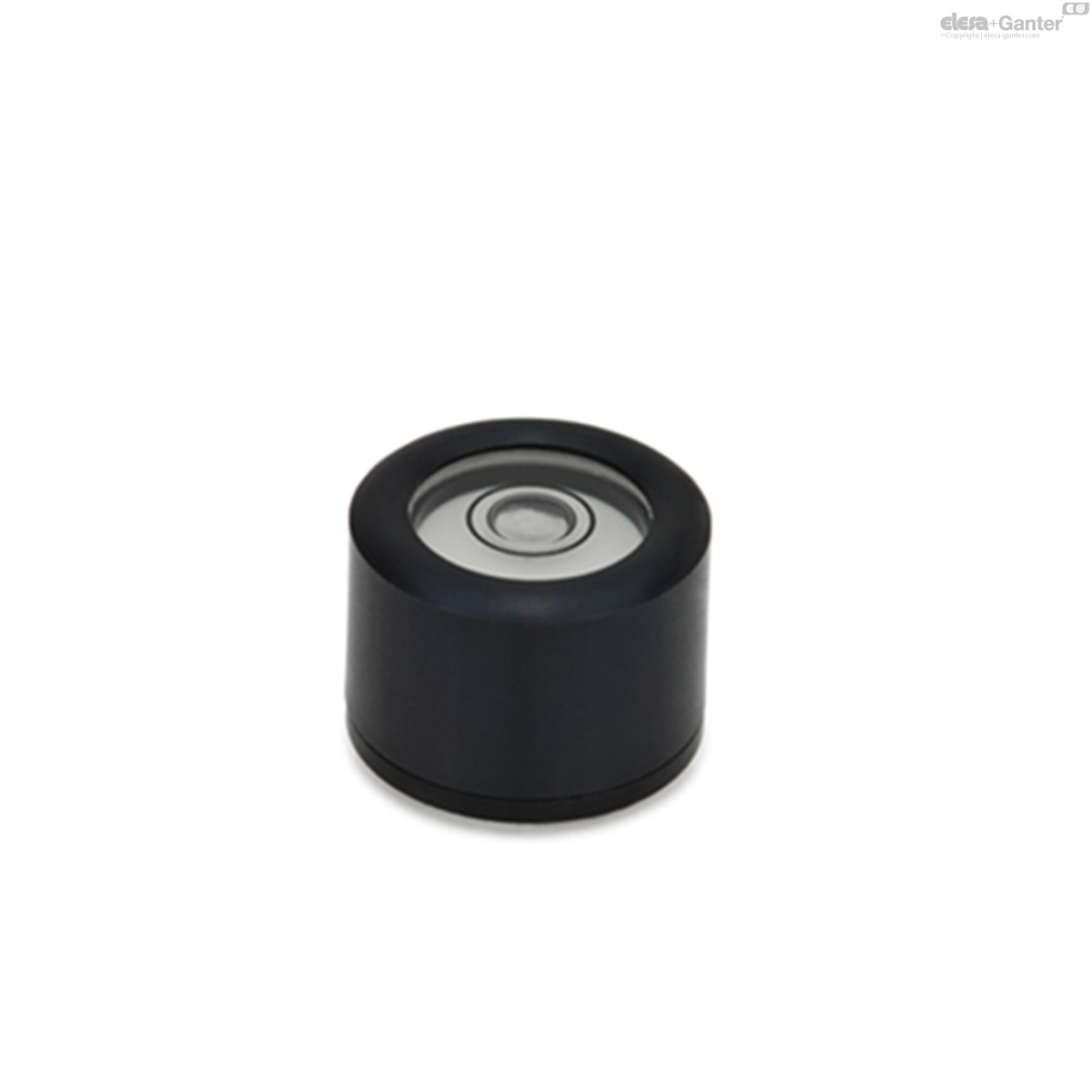

2280-ALS-24-K-30 GN 2280 Bull´s Eye Spirit Levels

2280-ALS-24-K-30

GN 2280 Bull´s Eye Spirit Levels

Housing Aluminum, Adjustable
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 2280

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 2280-ALS-24-K-30
d1
24
d2
16
d3
15
d4
M 3
h1
17
h2
20
t
5
12

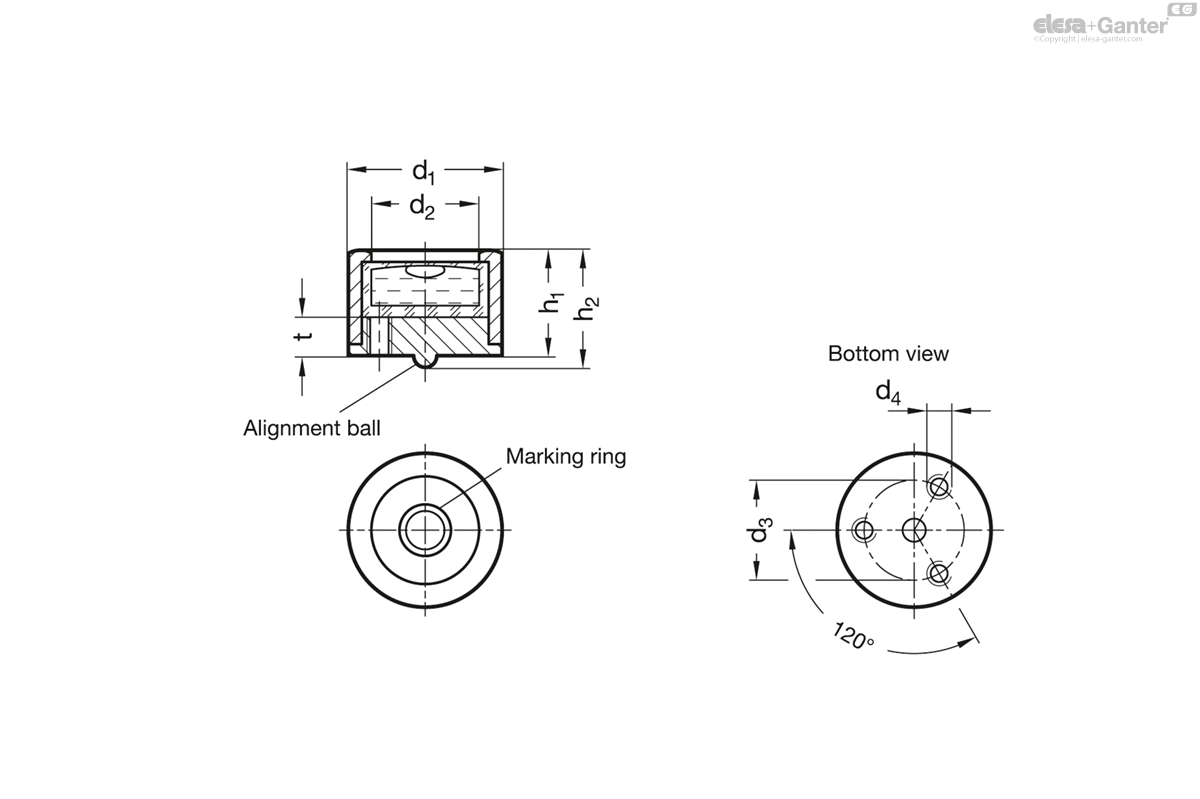

2280-ALS-24-K-30 drawing

Sensitivity

  • 30 Angle minutes, bubble move by 2 mm

Housing

Aluminum

  • Anodized, natural color ALN
  • Anodized, black ALS

Spirit level element

  • Glass plastic body
  • Filling
  • Colorless-transparent K

Casting compound

Mineral-based

Bull´s eye spirit levels GN 2280 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The mounting threads offset by 120° allow the spirit levels to be aligned in relation to the mounting surface. An alignment ball at the bottom surface of the adjustment plate serves as tilting point. Specific tightening torques of the bolts allow to be achieved, so that the bubble is located inside the marking ring once the horizontal alignment is reached.

  • Filling, green-transparent
  • Other sensitivities
  • Housing in brass or stainless steel
