2278-ALS-25-K-30 GN 2278 Bull´s Eye Spirit Levels

2278-ALS-25-K-30

GN 2278 Bull´s Eye Spirit Levels

Housing Aluminum, for Insertion into Bore Holes
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 2278

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 2278-ALS-25-K-30
d1
25
d2
14
d3 -0.2
20
h1
12
h2
9
4

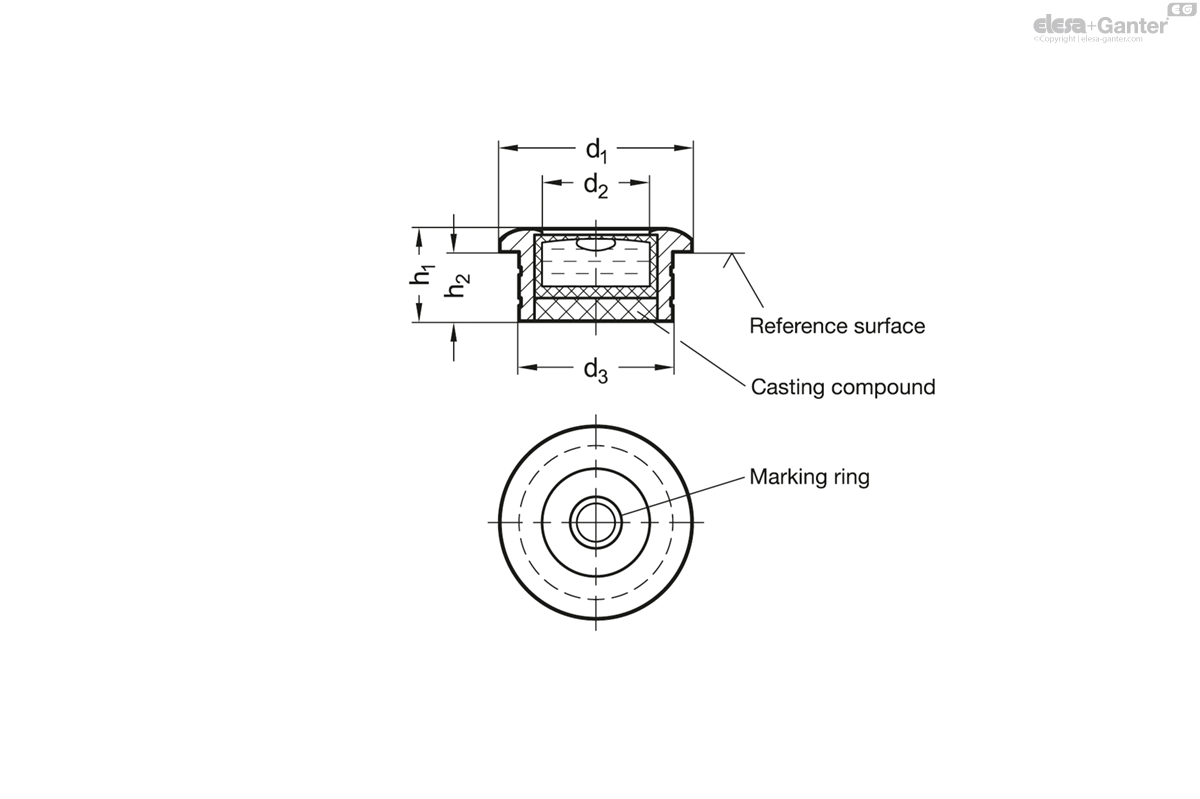

2278-ALS-25-K-30 drawing

Sensitivity

  • 30 Angle minutes, bubble move by 2 mm

Housing

Aluminum

  • Anodized, natural color ALN
  • Anodized, black ALS

Spirit level element

  • Glass plastic body
  • Filling
  • Colorless-transparent K

Casting compound

Mineral-based

Bull´s eye spirit levels GN 2278 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.

The housing is grooved at its lower diameter d3, making it easier to mount in place, e.g. by gluing.

The spirit levels are aligned in relation to the reference or contact surface, so that the bubble is located inside the marking ring once the horizontal position of the contact surface is reached.

  • Filling, green-transparent
  • Other sensitivities
  • Housing in brass or stainless steel
