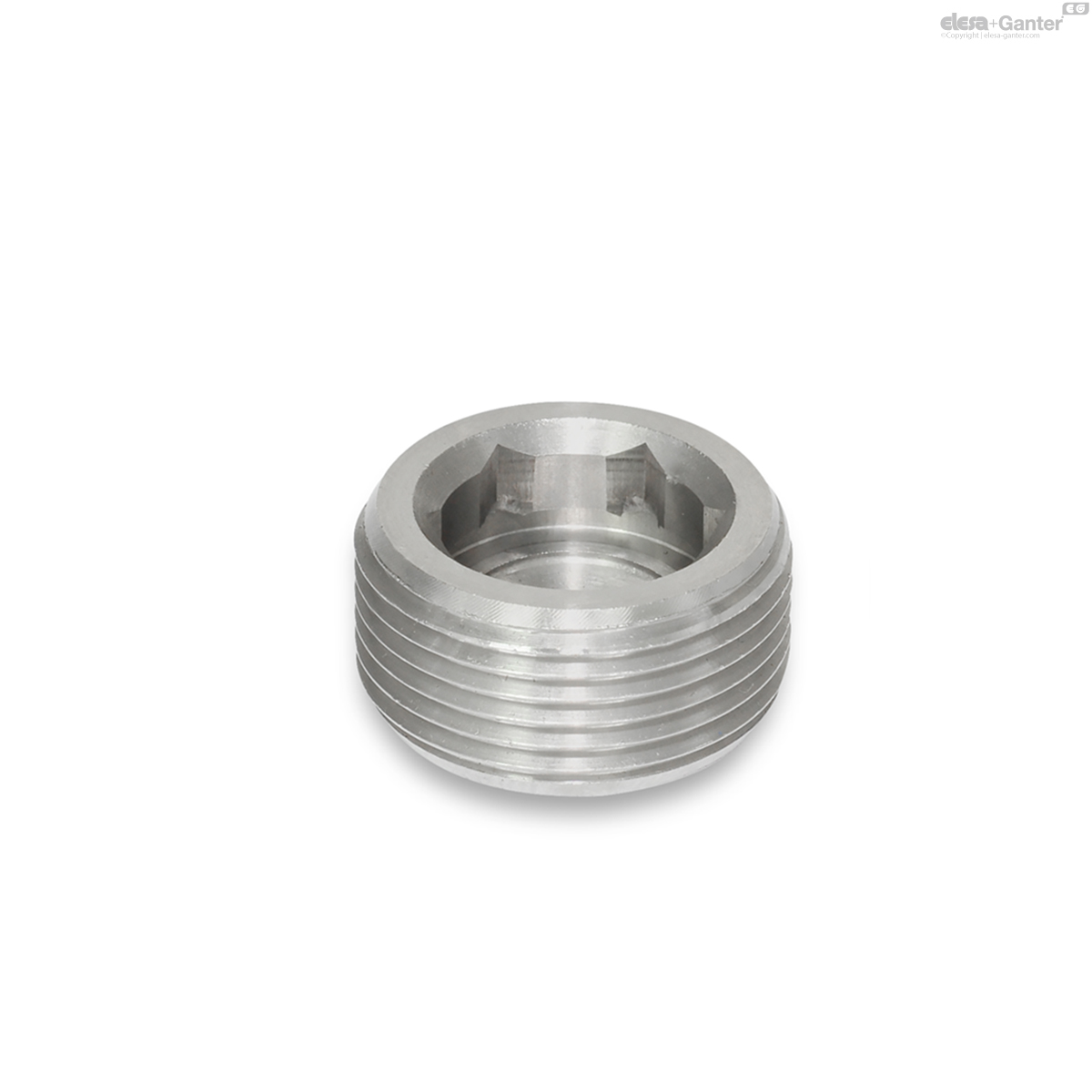

252.5-M16X1,5-PRB GN 252.5 Stainless Steel-Blanking plugs

252.5-M16X1,5-PRB

GN 252.5 Stainless Steel-Blanking plugs

  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 252.5

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 252.5-M16x1,5-PRB
d
M 16 x 1.5
h
10
A/F
8
10

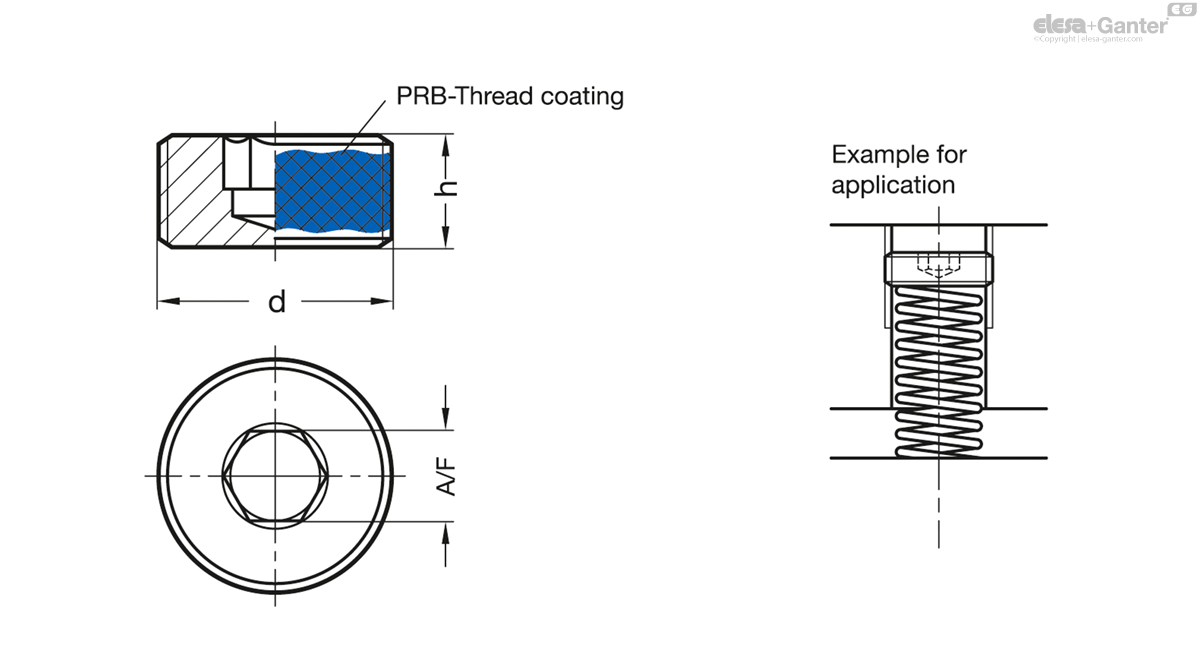

252.5-M16X1,5-PRB drawing
Types
  • Type A: without thread coating
  • Type PRB: with thread coating (polyamide allround coating)

Stainless Steel AISI 303

The thread locking PRB (polyamide allround coating) is a clamping lock which prevents the locking screw from being inadvertently being loosened and becoming detached.
