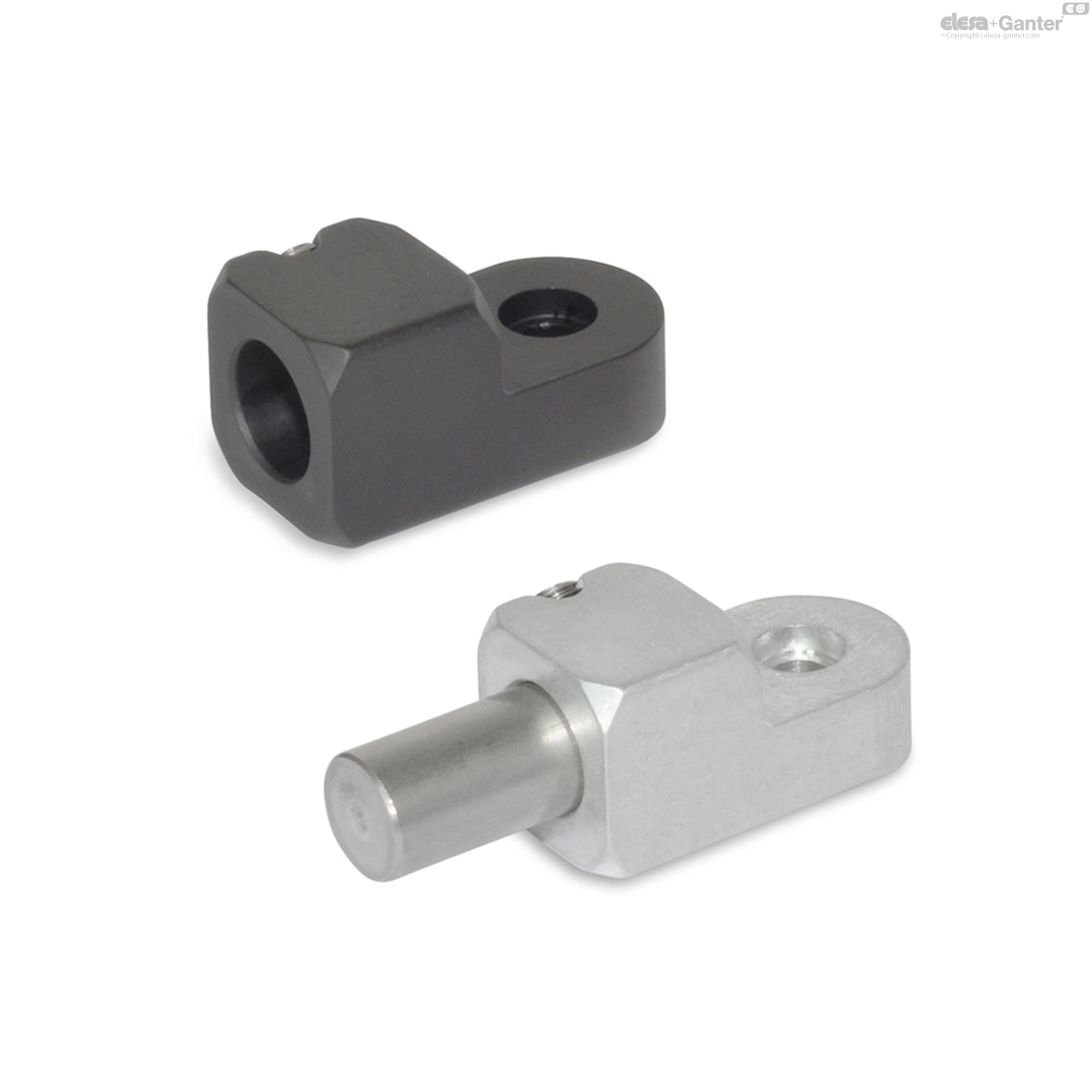

483-B20-30-A-MT GN 483 T-swivel clamp mountings

483-B20-30-A-MT

GN 483 T-swivel clamp mountings

Aluminium
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 483

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 483-B20-30-A-MT
d1
B 20
k
30
d3
10
d4
6.5
d5
M 6
l1
55
l2
40
l3
24
l4
15
l5
12
l6
26
t
18
Clamping kit for 4 Type S
GN 511.1-M6-30-S
Clamping kit for 3 Type K
GN 511.1-M6-30-K
80
483-B20-30-A-MT drawing

Types

  • Type A: with bore
  • Type W: with bolt

Aluminium

  • matt, slide ground MT
  • anodized black ELS

Bolt (Type W)

Steel zinc-plated, blue passivated

Grub screw DIN 913 (Type A)

Stainless Steel AISI 304

Grub screw DIN 915 (Type W)

Stainless Steel AISI 304

T-Swivel clamp mountings GN 483 can be combined with swivel clamp mountings  GN 482  and attachment clamp mountings GN 484  with the same k dimensions into articulated swivel clamp mounting joints. Clamping kits GN 511.1  with screw, type S and adjustable hand lever, type K are available for this purpose (description see table of dimensions).
