5345.4-60-M10-E GN 5345.4 Three-Lobed Knobs

5345.4-60-M10-E

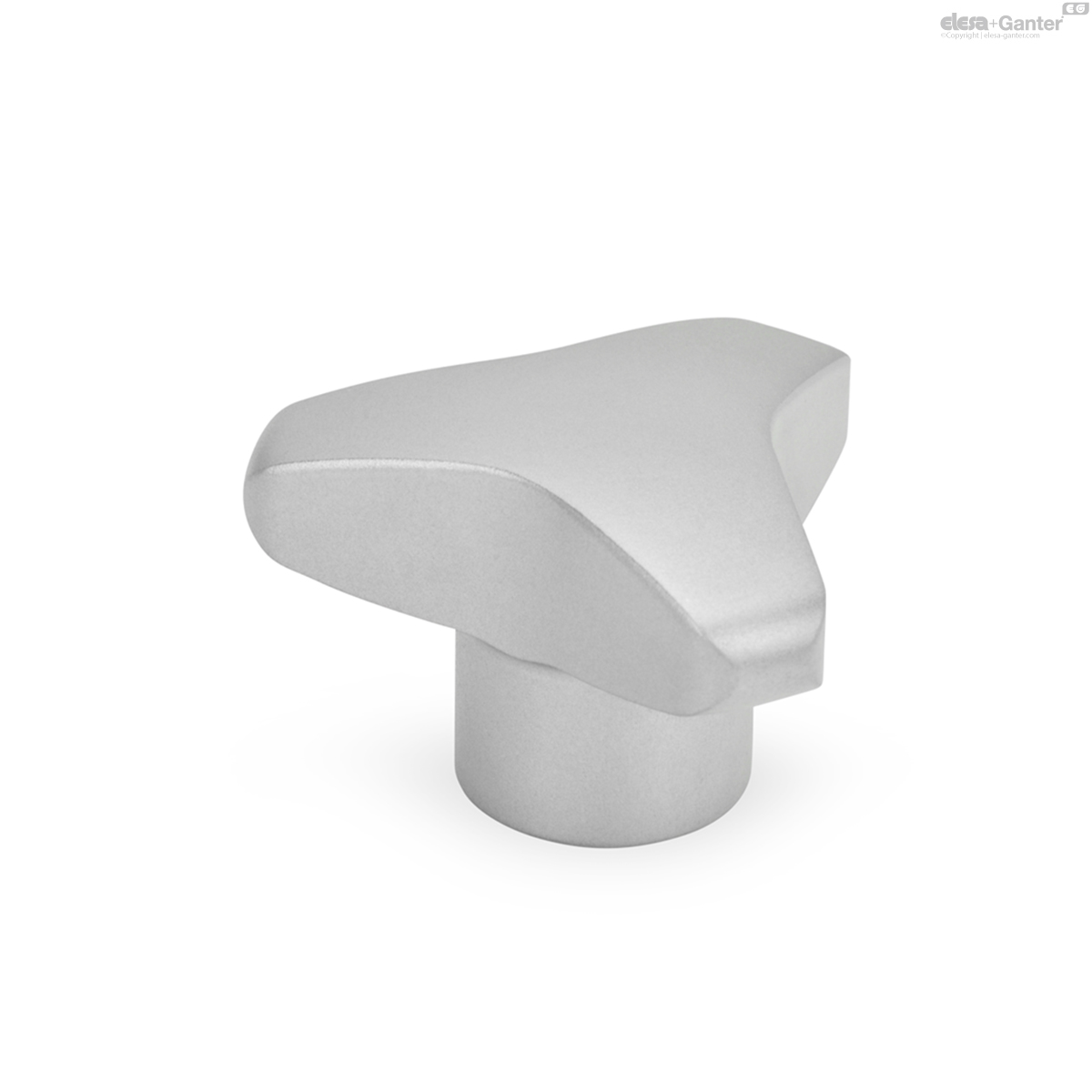

GN 5345.4 Three-Lobed Knobs

Material AISI 316L (A4)
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 5345.4

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 5345.4-60-M10-E
d1
60
d2
M 10
d4
25
h1
35
h2
18
t1 min.
18
205
5345.4-60-M10-E drawing

Types

  • Type A: without bore
  • Type E: with threaded blind bore
  • Type D: with threaded through bore
  • Type C: with plain blind bore H7

Stainless Steel AISI 316L (A4)

matte shot-blasted

Stainless Steel-Three lobe knobs GN 5345.4 have a smooth and sealed surface. They are particulary suitable for use where hygiene requirements are high. Their shape alllows relatively high torques to be applied.

  • highly polished (PL) (only type D and E)
