355-M12X1-4,5-ST
GN 355 Steel
Eta: 1-2 weeks All sizes and variants of GN 355
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue

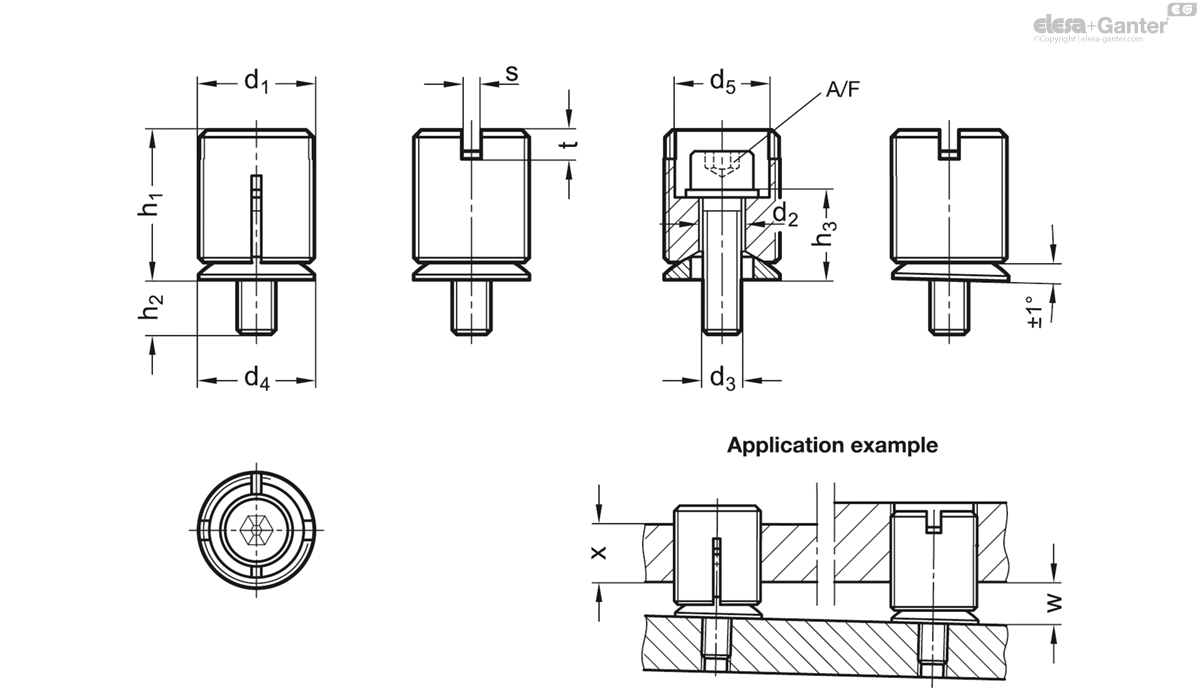

- GN 355-M12x1-4,5-ST
- d1
- M 12 x 1
- d2
- 4.5
- d3
- M 4
- d4
- 12
- d5
- 9.1
- h1
- 19.1
- h2
- 10.9
- h3
- 9.1
- s
- 2
- A/F
- 3
- t
- 3
- w max.
- 8
- x min.
- 8
- Static load F
in kN - 4.4
- Code no.
assembly tool - 355.1-12
- 12
Version in Steel ST
blackened
Spherical washer
Steel, case-hardened
Version in Stainless Steel NI
AISI 303
Spherical washer
AISI 303
Cylinder head screw DIN 912
Stainless Steel A2-70
Washer DIN 433
Stainless Steel AISI 304
Levelling elements GN 355 are used for levelling and adjustment in machines and equipment.
They consist of a levelling screw, a cylinder screw with disk and a spherical washer. After making the adjustment using the assembly tools GN 355.1 available as accessory, the screw is tightened firmly causing the levelling screw and the spherical washer DIN 6319 underneath to spread and is so secured against twisting in the taphole.
The values for w and x given in the table and for the static load capacity are to be seen as reference values which may differ depending on the prevailing situation. In general, they do not constitute a warranty of condition. The user must determine whether the product is suitable for the intended purpose.
- Assembly tools GN 355.1 (Code no. see table)
