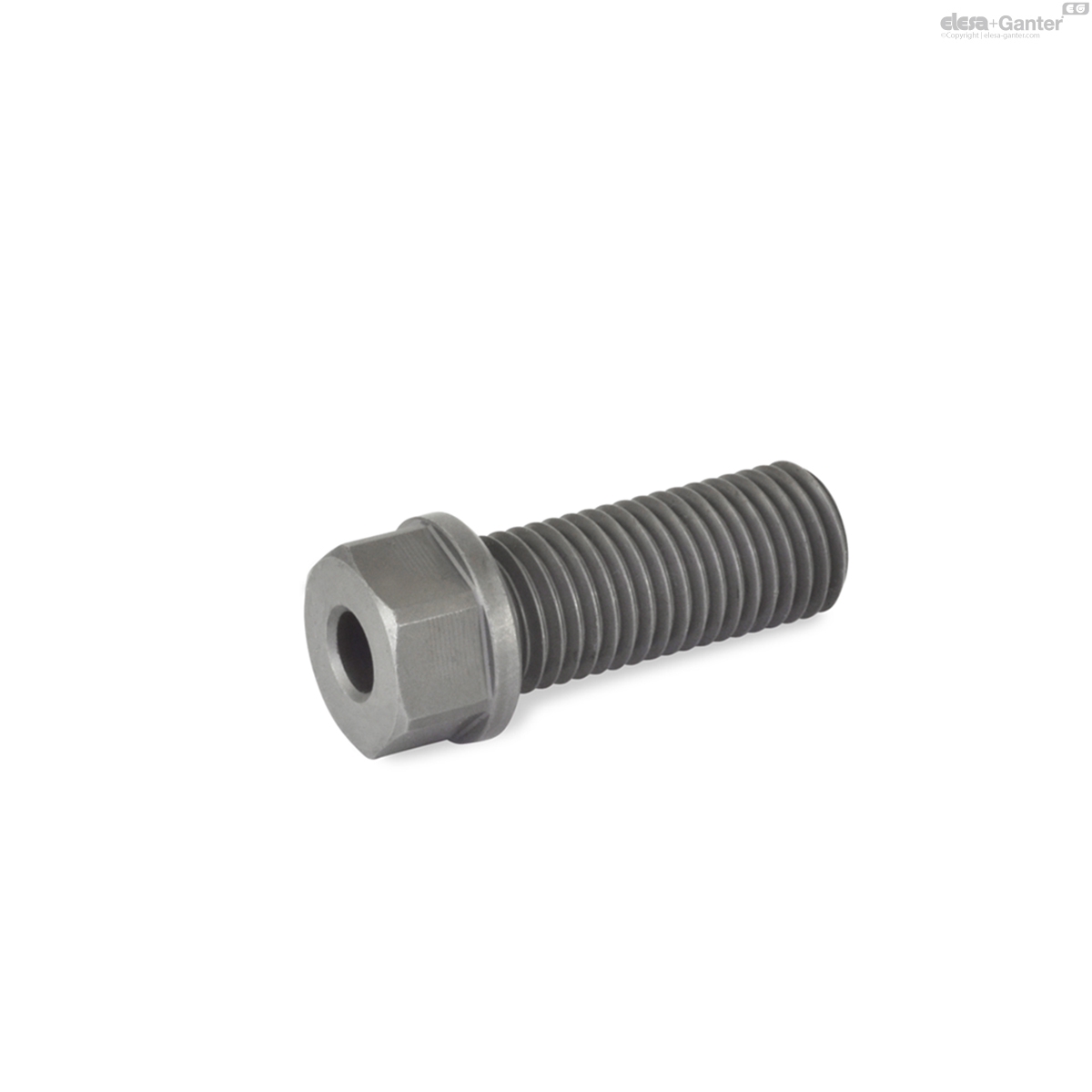

GN 1132 Holding bushings
for lifting pins GN 1130
Eta: 1-2 weeks All sizes and variants of GN 1132
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue

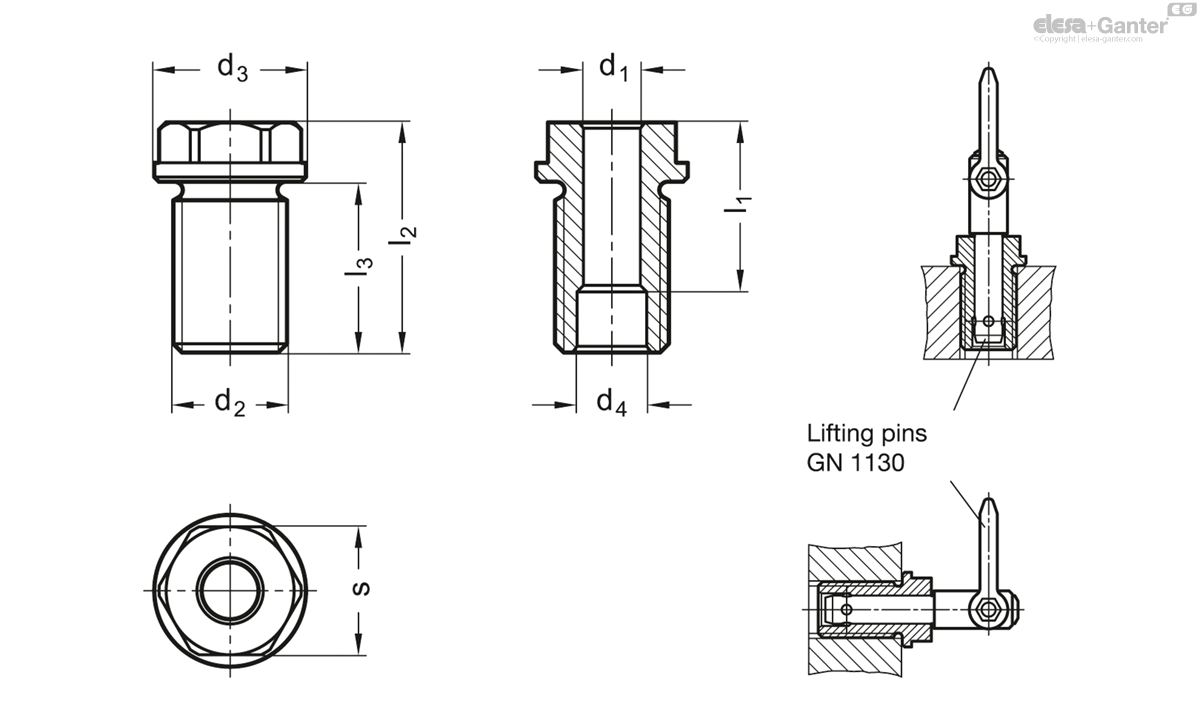

- GN 1132-16-25-M30x2-A
- d4 +0.3
- 19.2
- d1
- 16
- l1
- 25
- d2
- M 30 x 2
- d3
- 39
- l2
- 44
- l3
- 29
- s
- 30
- Tightening torque
in Nm - 440
- 164
Type
- Type A: with external hexagon
Bushing
Stainless Steel
- AISI 630
- precipitation hardened
Holding bushings GN 1132 are used in connection with lifting pins GN 1130 .
The length l1 of the holding bushing should be equal to length l1 of the lifting pin in order to recht the load specification given in the table for GN 1130 at plug-in length x.
Holding bushingsintended to remain permanently at the workpiece, creating a place-saving alternative to load rings or similar.
- other threads d2
