6342-ST-28-10
GN 6342 Steel
Steel / Stainless Steel, with axial friction bearing
Eta: 1-2 weeks All sizes and variants of GN 6342
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet

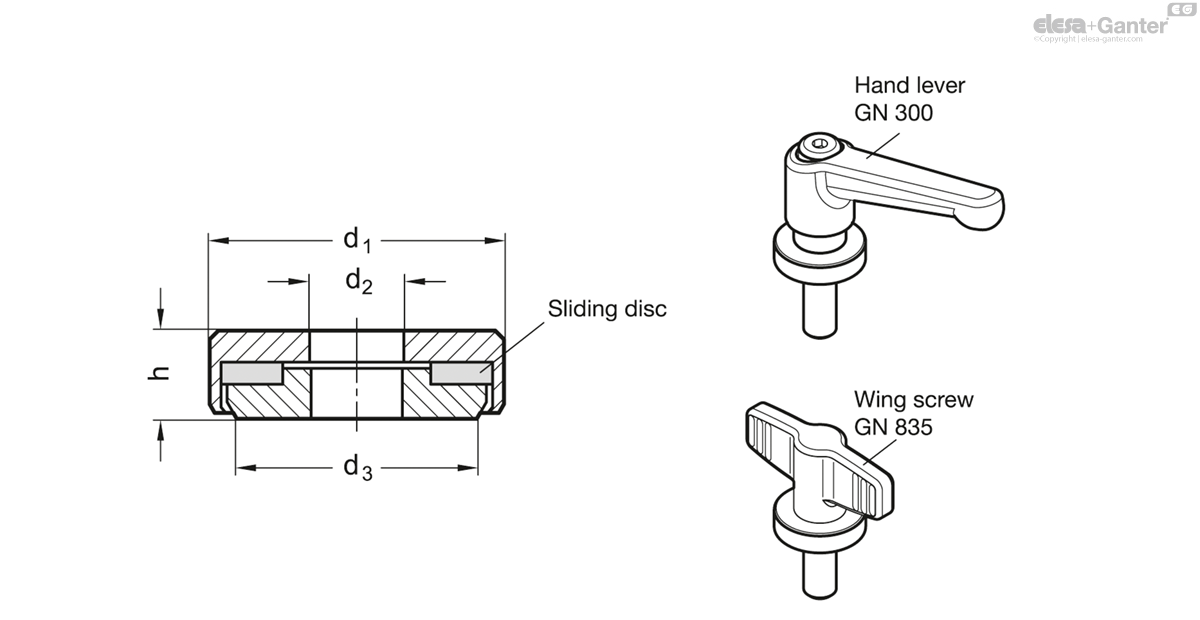

Technical data
- Catalogue
- GN 6342-ST-28-10
- d1
- 28
- d2 +0.2/+0.4
- 10
- d3
- 24
- h
- 8
- For screws
with thread - M 10
- Static load
in kN - 40
- 28
Version in Steel
Steel ST
blackened
Version in Stainless Steel
Stainless Steel NI
AISI 303
Sliding disk
- Plastic (Polyamide 46)
- glasfibre reinforced
- temperature resistant up to 120 °C
- slightly greased (PTFE-mounting grease)
Used in connection with clamping screws, e. g. star knob screws, washers with axial friction bearing GN 6342 offer the following advantages:
- almost double the clamping force owing to lower area friction
- fixed contact surface acting gentrly on the element to be clamped
