967-45-90-F-1-ZB GN 967 Angle pieces / Shackles

967-45-90-F-1-ZB

GN 967 Angle pieces / Shackles

for profile systems
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

Eta: 1-2 weeks All sizes and variants of GN 967

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 967-45-90-F-1-ZB
b
45
l1
90
l3
22.5
m
45
d
8.3
s
5
148

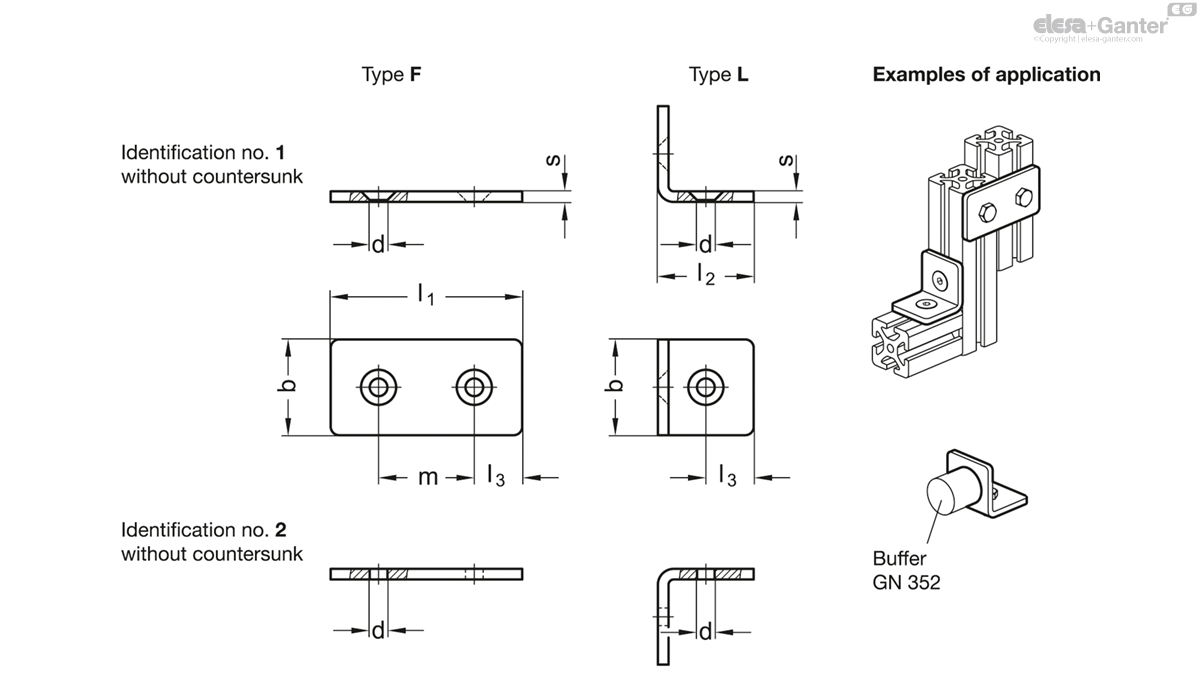

967-45-90-F-1-ZB drawing

Types

  • Type F: Shackle
  • Type L: Angle

Identification no.

  • No. 1 with bore for countersunk screws DIN 7991
  • No. 2 with bore without countersunk

Sheet metal

zinc plated, blue passivated ZB

plastic coated

black, RAL 9005, textured finish SW

silver, RAL 9006, textured finish SR

Angle pieces and shackles GN 967 are preferably used in connection with profile section systems. Square connections or connections with same contact area can so be realised in the smallest of spaces and with a high degree of stability.

Over and above the profile system configurations, the angle pieces and shackles can also be used for a wide variety of different fixing and retaining tasks, for instance in the design of jigs and fixtures.

In the version with identification no. 2 the drill holes are designed without countersunk hole to allow fixing with cylinder head screws, nuts or rivets.
