909-M10X1-BT

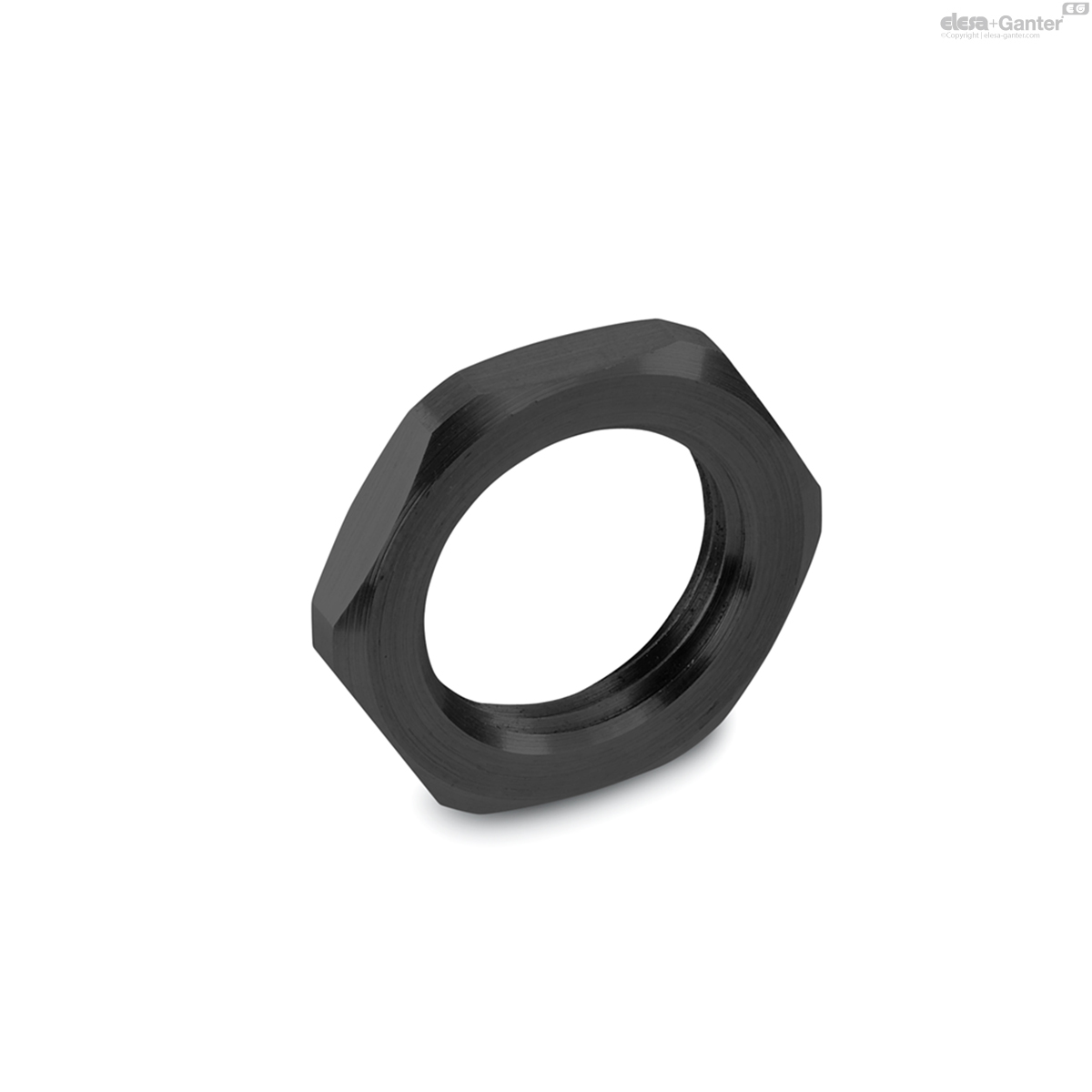

GN 909 Thin Hex Nuts
Steel, for Indexing Plungers / Cam Action Indexing Plungers
Eta: 1-2 weeks All sizes and variants of GN 909
🔒 Prices, live stock & CAD downloads
Sign in to see your prices and stock, download CAD files and order directly online.
Sign in Request an account
Technical datasheet
Technical data
- Catalogue
- GN 909-M10x1-BT

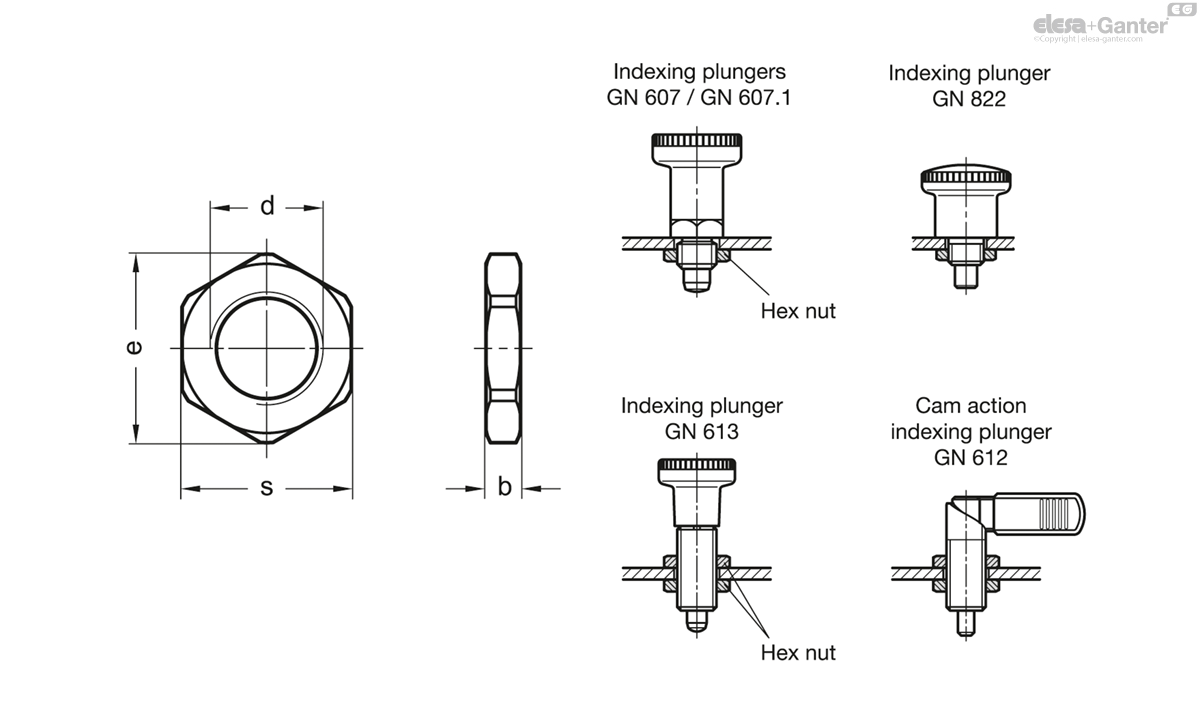

- d
- M 10 x 1
- b
- 3.5
- e
- 16.6
- s
- 15
- 4
Steel
Blackened BT
With their smaller dimensions, thin hex nuts GN 909 expand the mounting options of indexing plungers and cam action indexing plungers.
