7603-CU-20-24-A DIN 7603-CU Copper

7603-CU-20-24-A

DIN 7603-CU Copper

for Threaded Plugs DIN 908 / DIN 910, Copper / Aluminum / Stainless Steel
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png

In stock All sizes and variants of DIN 7603

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
DIN 7603-CU-20-24-A
d1 Nominal dimension
20
d1 Actual dimension +0.3
20.2
d2 Nominal dimension
24
d2
Actual dimension -0.2
23.9
s ±0.2
1.5
Suitable
for DIN 908 / DIN 910
M 20 x 1.5
2

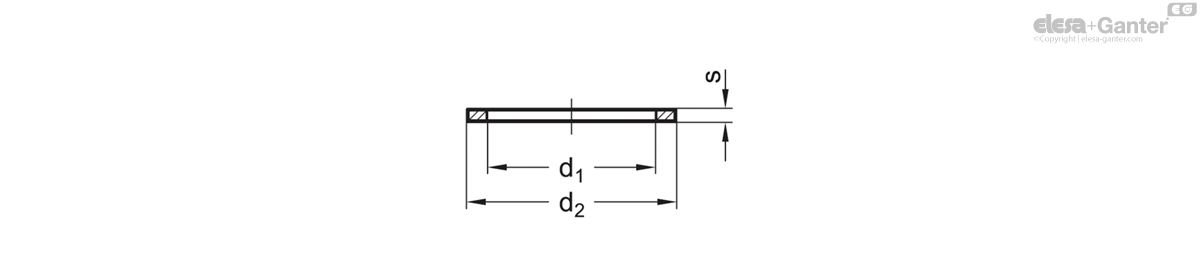

7603-CU-20-24-A drawing

Type

  • Type A: Flat gasket

Copper CU

Aluminum AL

Stainless steel AISI 316Ti A4

The sealing rings listed in this standard sheet are only an extract of DIN 7603.

They are used in connection with threaded plugs DIN 908 / DIN 910.

  • Other sizes
  • Other materials
  • Other types
