880.1-22-B-250-T GN 880.1 Connector pieces

880.1-22-B-250-T

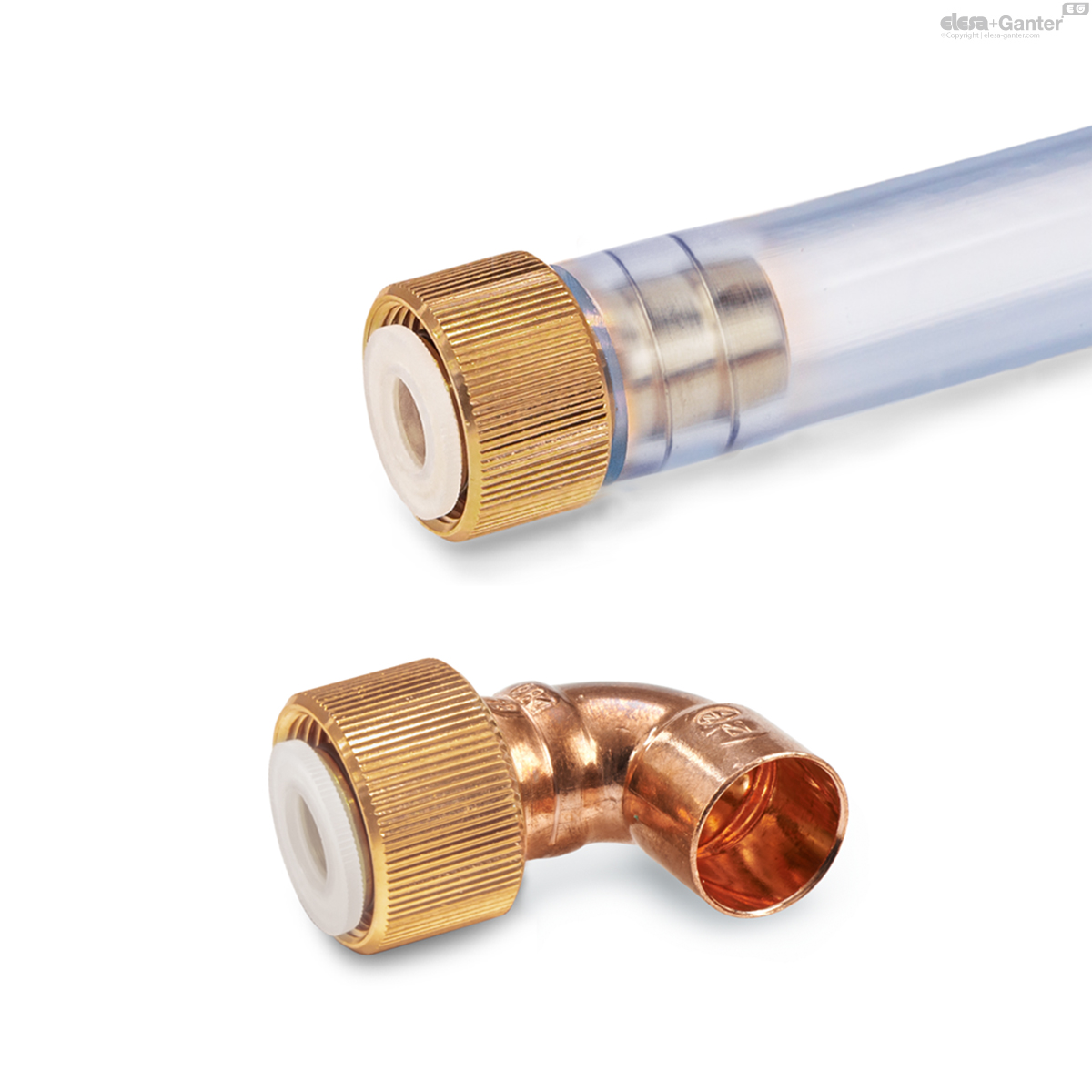

GN 880.1 Connector pieces

for oil drain valves GN 880 / with or without drain hose
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 880.1

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 880.1-22-B-250-T
Size
22
d1
M 22 x 1.5
l
250
d2
15
d3
14
94
880.1-22-B-250-T drawing

Types

  • Type A: Connector straight
  • Type B: Connector 45°
  • Type C: Connector 90°

Connecting nut

with hose liner

Brass

L bend 45° / 90 °

Copper

O-Ring

Rubber NBR (Perbunan)

Drain hose

PVC, transparent T

Hose clip

Steel, zinc plated

Plug

Plastic, LD-PE

Connector pieces GN 880.1 are needed when using oil drain valves GN 880

Screwing on the connector piece will activate the valve plate of the oil drain valve, allowing the oil to flow through the hose into a pan held ready.

The plug prevents remaining oil from dripping out after discharging.

  • other hose length
  • Drain hose with inside webbing (Nylon)
