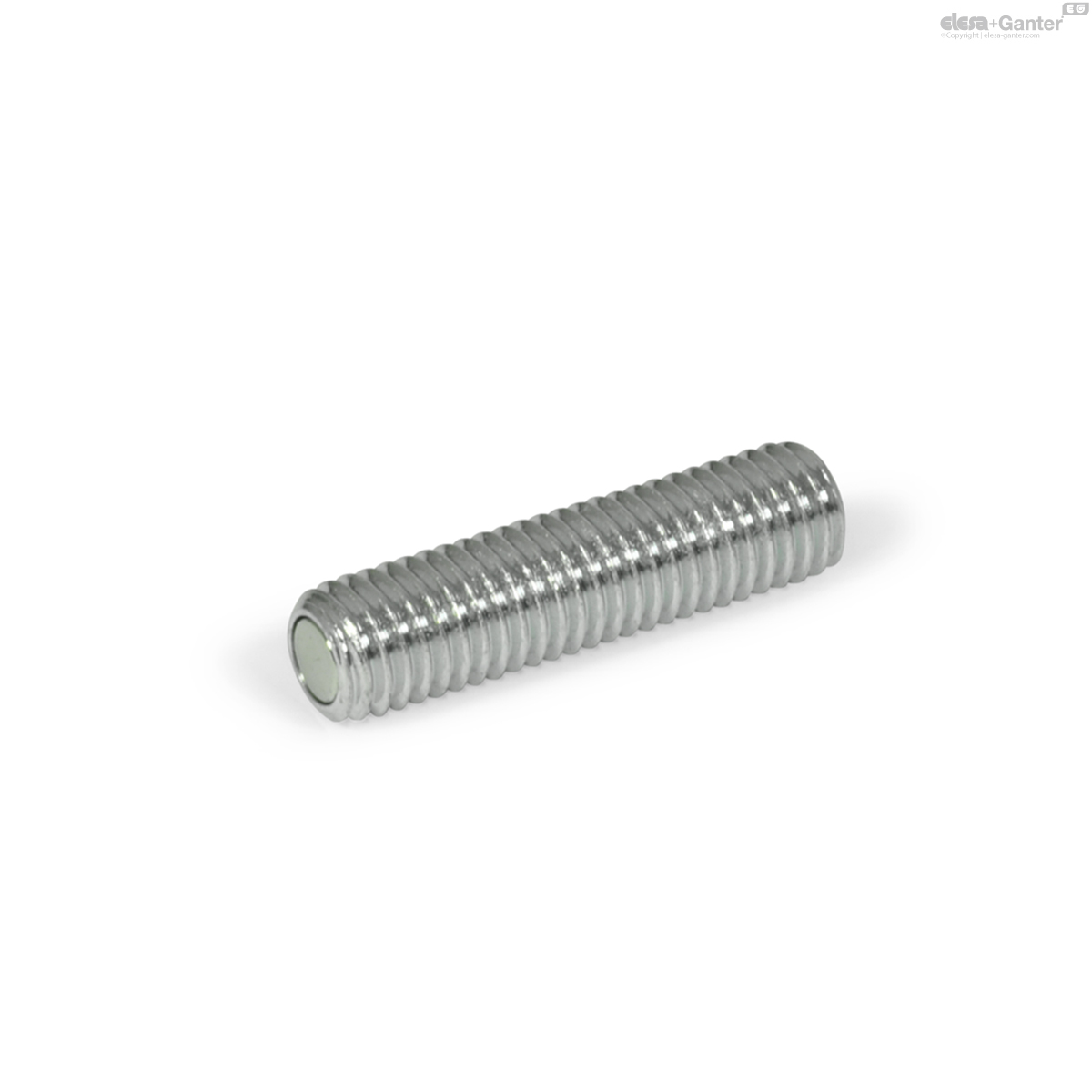

913.6-M8-20-ND GN 913.6 Grub screws

913.6-M8-20-ND

GN 913.6 Grub screws

with retaining magnet
  • Icons/__logo__RoHS__.png

Eta: 1-2 weeks All sizes and variants of GN 913.6

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 913.6-M8-20-ND
d *
M 8
l -1
20
A/F
4
Nominal adhesive forces in N
7
5
913.6-M8-20-ND drawing
* thread: nut mobility

Steel

  • Tensile strength class 5.8
  • zinc plated, blue passivated

Material of the magnet

NdFeB ND

Neodymium, iron, boron

temperature resistant up to 80 °C

Grub screws GN 913.6 with retaining magnet are a shielded magnetic system.

Suitable e.g. as workpiece stop, with the magnet holding the workpiece in place.
