851-700-T-NI ( WITHOUT U-bolt latch ) GN 851-NI Stainless Steel

851-700-T-NI ( WITHOUT U-bolt latch )

GN 851-NI Stainless Steel

Steel / Stainless Steel, for pulling action
  • Icons/__logo__INOX__.png
  • Icons/__logo__RoHS__.png
  • Icons/__logo__SPEEDYBLOCK__.png

Eta: 1-2 weeks All sizes and variants of GN 851

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 851-700-T-NI
Size
700
FH in N
7000
a
24
b1
60
b2
54
b3
38
b4
38
b5
26
d1
M 8
d2
8.5
h1 ≈
42
h2
36
m1
38
m2
9.5
m3
41.5
m4
9.5
m5
19
s
3.5
528

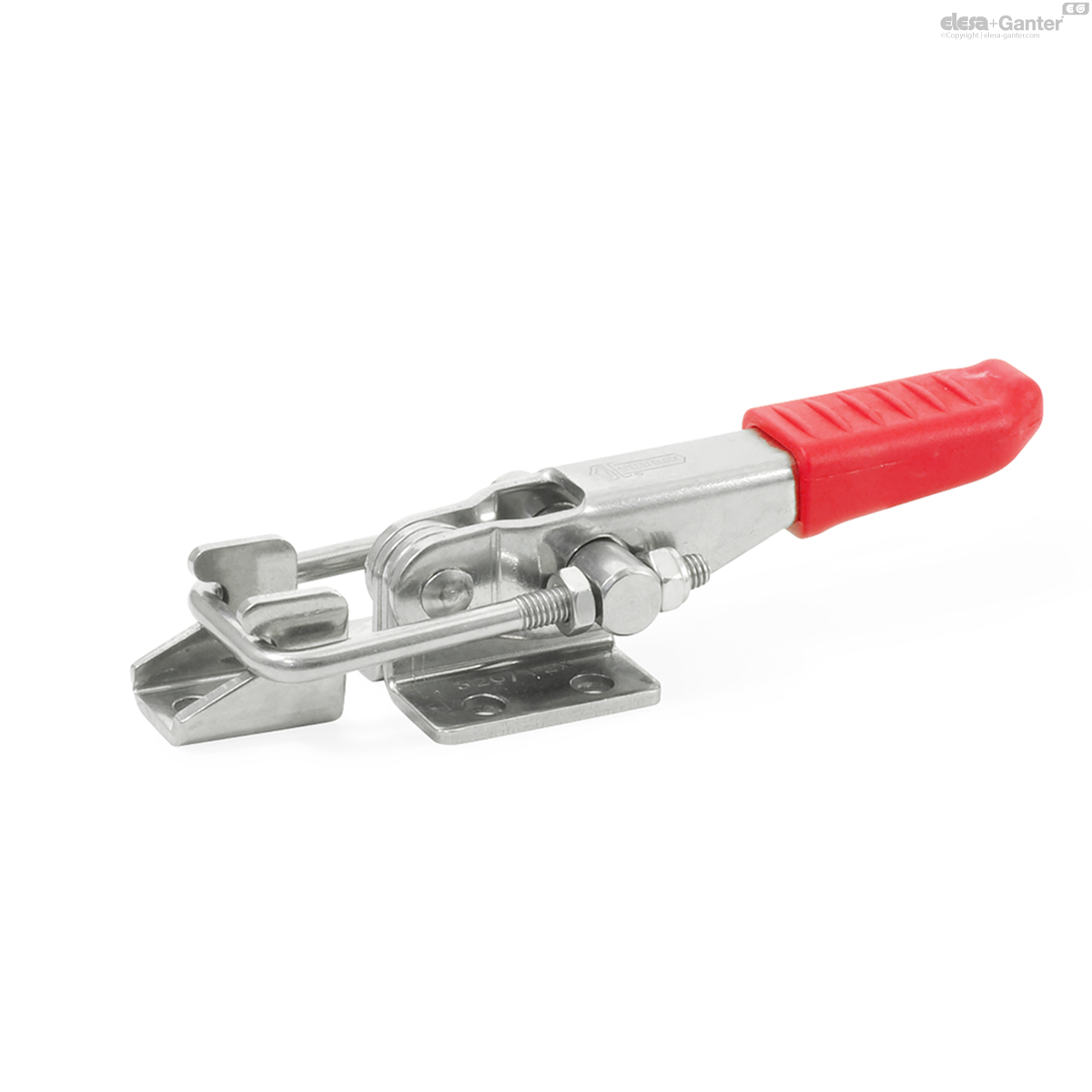

851-700-T-NI ( WITHOUT U-bolt latch ) drawing
Types
  • Type T2: with U-bolt latch, with catch
  • Type T: without U-bolt latch, with catch
Version in Steel

Case-hardened Steel C10

zinc plated, blue passivated

U-bolt latch

Steel St 37

zinc plated, blue passivated

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

Version in Stainless Steel NI

Parts in sheet metal / U-bolt latch

Stainless Steel AISI 304

Pin

Stainless Steel AISI 303

All moving parts

lubricated with special grease

Handle with plastic sleeve

red, oil resistant

The stroke of the U-bolt latch of GN 851 latch type toggle clamps can be adjusted within its range.

In the clamped position the U-bolt latch with clamping arm is parallel to the plane of the operating handle.

In addition to the standard lengths of the U-bolt latches shown in the table, a variety of other lengths are also available under the GN 951.1 series.
