612.9-6-10-16-SW GN 612.9 Cam action indexing plungers

612.9-6-10-16-SW

GN 612.9 Cam action indexing plungers

with flange / Guide zinc die casting
  • Icons/__logo__RoHS__.png
  • Icons/__logo__profile__.png

In stock All sizes and variants of GN 612.9

🔒 Prices, live stock & CAD downloads

Sign in to see your prices and stock, download CAD files and order directly online.

Sign in Request an account

Technical data

Catalogue
GN 612.9-6-10-16-SW
d1 Pin-0.05

Bore
+0.1/+0.05
6
l2
10
d2
16
h1
16
h2
10.5
k
20
l1 ≈
46
l3
10
l4
30
l5
32
s
12
Spring load
in N ≈
initial
12
Spring load
in N ≈
end
32
57

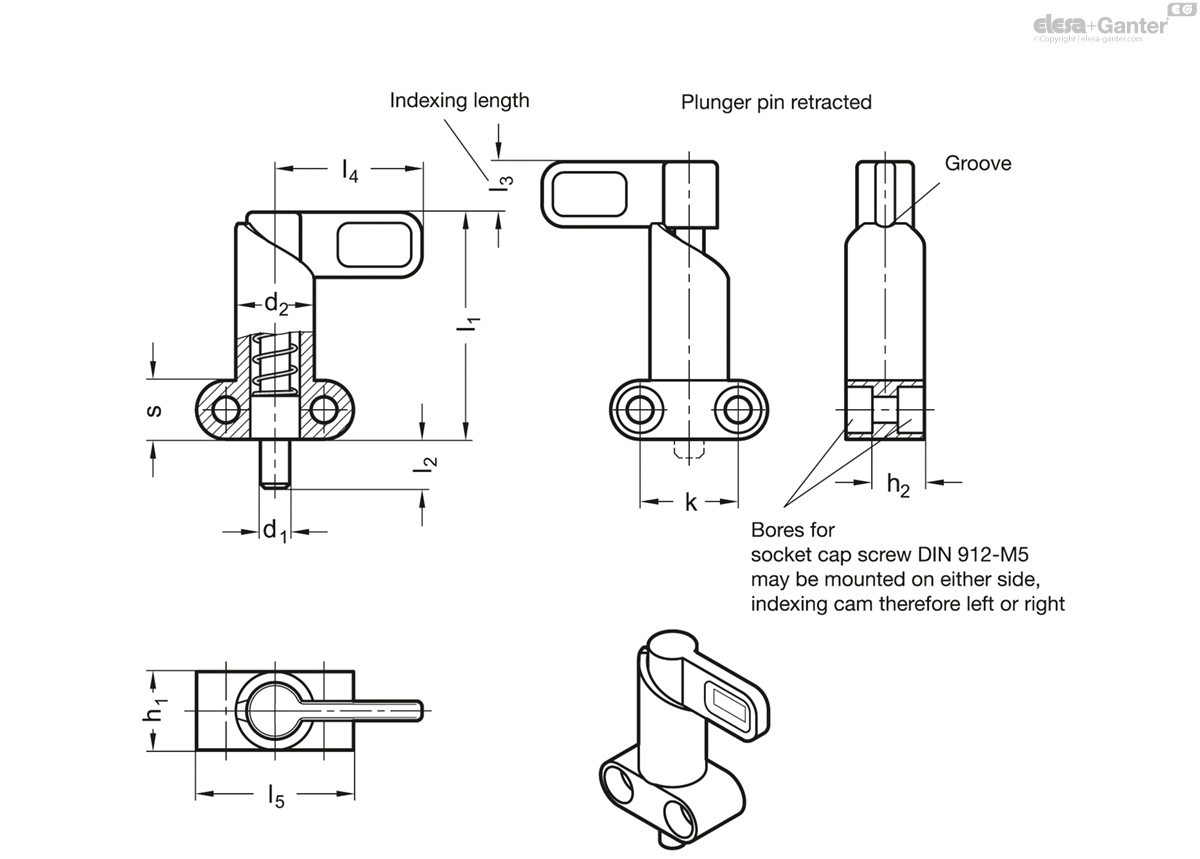

612.9-6-10-16-SW drawing

Guide

Zinc die casting

plastic coated

black, RAL 9005, textured finish SW

Plunger pin

Steel

zinc plated, blue passivated

Lever

Plastic (Polyamide PA)

  • black, matt
  • not removable

Cam action indexing plungers GN 612.9 are used in cases where the plunger must not protrude all the time. By rotating the lever through 180° the plunger withdraws itself. The groove allows safe positioning.
